IntesisBox BACnet/IP Server - Modbus TCP Master
 Timeout TCP connect (sec): timeout to decide that a connection was not
successful.
 Timeout TCP response (sec): timeout to decide that a the device has not replied.
 Byte order (Modbus TCP endianism): Byte order for data fields inside Modbus TCP
telegrams (LSB..MSB or MSB..LSB). It will depend on the slaves, consult the slave
documentation for details. If unknown just try the two possible choices and see if the
read values make sense. This affects to all data fields of all slaves defined.
 Hysteresis to send to BACnet: Amount that a Modbus TCP value needs to change
to be sent to the BACnet COV subscriptions

5.1.2 Signals configuration

Select the Signals tab (Figure 5.5) to configure the signals list (the IntesisBox internal
points). More information about the meaning of the columns can be found in the tables
below.
Every row in the grid corresponds to a signal (point). Signals (rows in the grid) can be
added or deleted selecting the desired row and clicking Add or Delete buttons. Multiple
consecutive rows can be deleted too.
Description Enumeration of the rows in the grid (signals). If clicked on them the whole
row will be selected (
Restrictions Cannot be edited
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

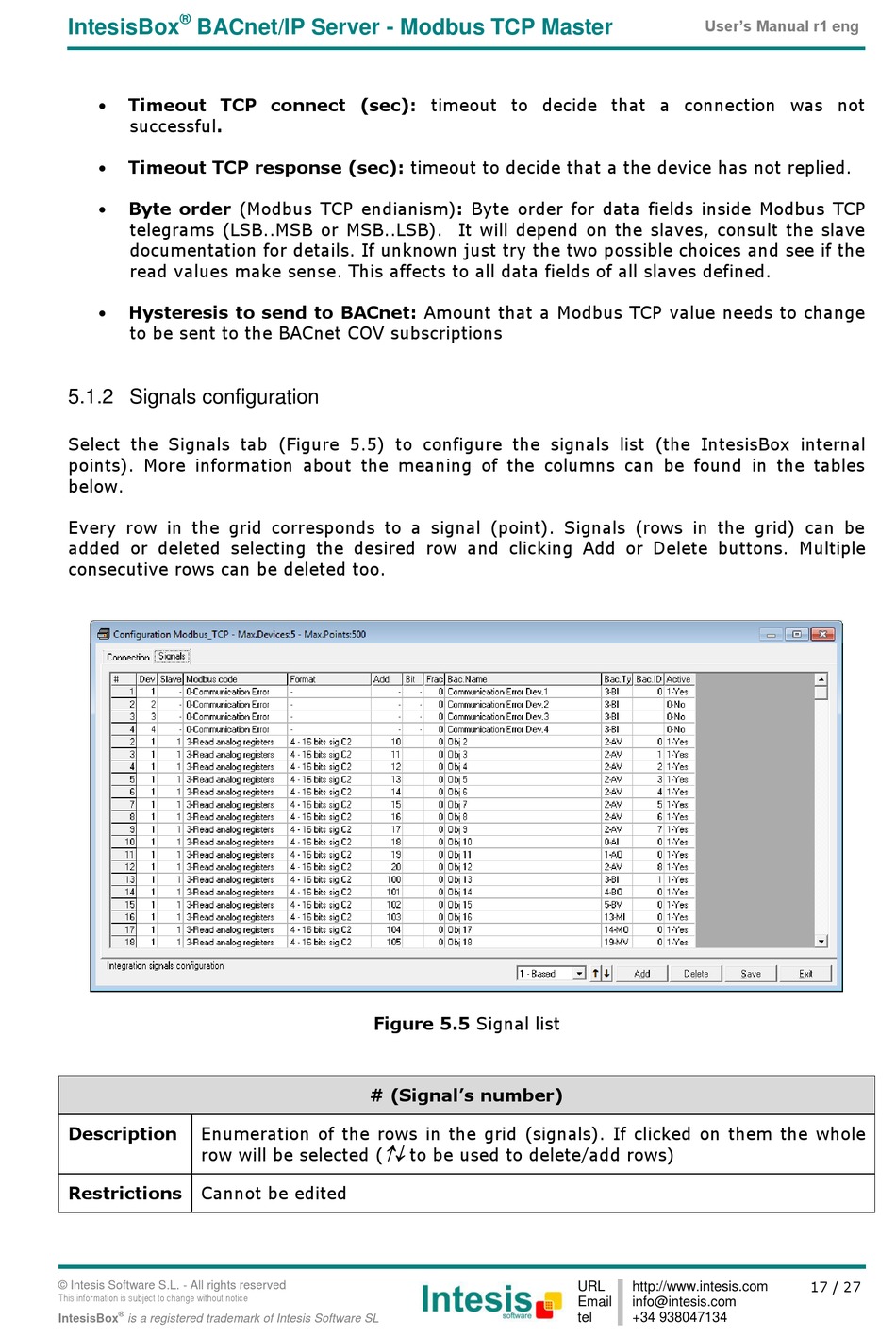

Figure 5.5 Signal list
# (Signal's number)

to be used to delete/add rows)
