5. LinkBoxBacnet. Configuration & monitoring of IntesisBox BACnet
series
How to install and use the LinkBoxBacnet is explained in its Manual. It can be found in the
installation folder (if the Software is already installed) or it can be downloaded from the link
that can be found in the installation sheet supplied with the IntesisBox.
In this section only the specific project configuration for IntesisBox BACnet/IP Server -
Modbus TCP Master is going to be explained.
The External Protocol in this IntesisBox is Modbus TCP

5.1 Project configuration

To configure the integration connection parameters, and the points list, click on Config in
the Button Bar (Figure 5.1). The Modbus TCP Configuration window will be opened. For
integrations with a large number of points an alternative CSV based configuration method is
explained in the LinkBoxBacnet Manual.

5.1.1 Connection configuration

Two subsets of information are configured using this window, the BACnet/IP parameters of
the IntesisBox, and the parameters of the Modbus TCP interface.
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

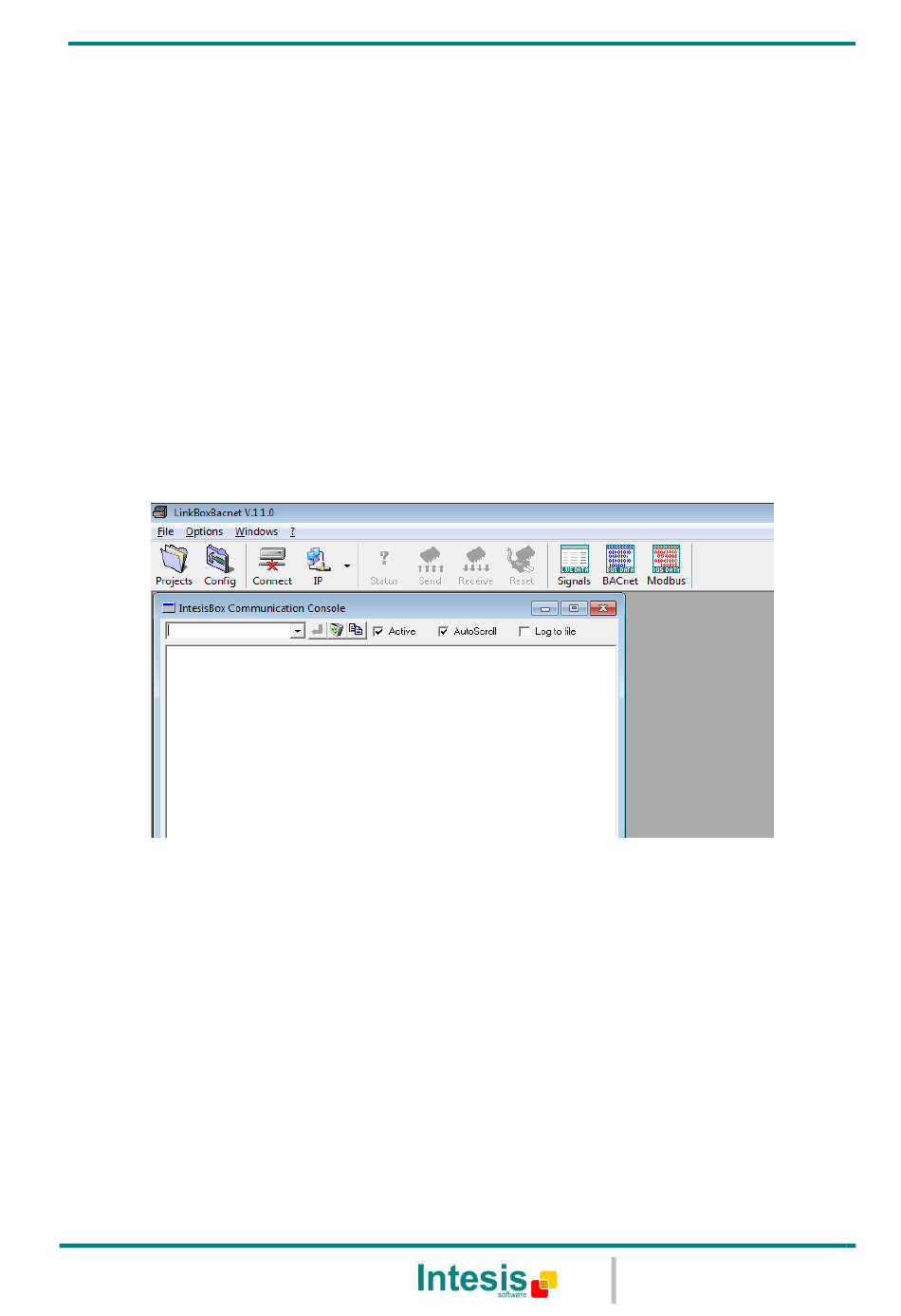

Figure 5.1 Menu and Button Bar in LinkBoxBacnet
