IntesisBox BACnet/IP Server - Modbus RTU Master
documentation for details. If unknown just try the two possible choices and see if the
read values make sense. This affects to all data fields of all slaves defined.
 Devices: List of Modbus slave devices to communicate to. Check the devices you
want to activate. Select a device to configure its properties.
 +/- : Use this button to define the number of Modbus slave devices to communicate
to (Up to 254 devices)
For every Modbus device defined, the following properties must be entered:
 Name: Enter the device name (optional, just for identification purposes).
 Slave #: Enter the slave number configured in the Modbus device.

5.1.2 Signals configuration

Select the Signals tab (Figure 5.5) to configure the signals list (the IntesisBox internal
points). More information about the meaning of the columns can be found in the tables
below.
Every row in the grid corresponds to a signal (point). Signals (rows in the grid) can be
added or deleted selecting the desired row and clicking Add or Delete buttons. Multiple
consecutive rows can be deleted too.
Description Enumeration of the rows in the grid (signals). If clicked on them the whole
row will be selected (
Restrictions Cannot be edited
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL

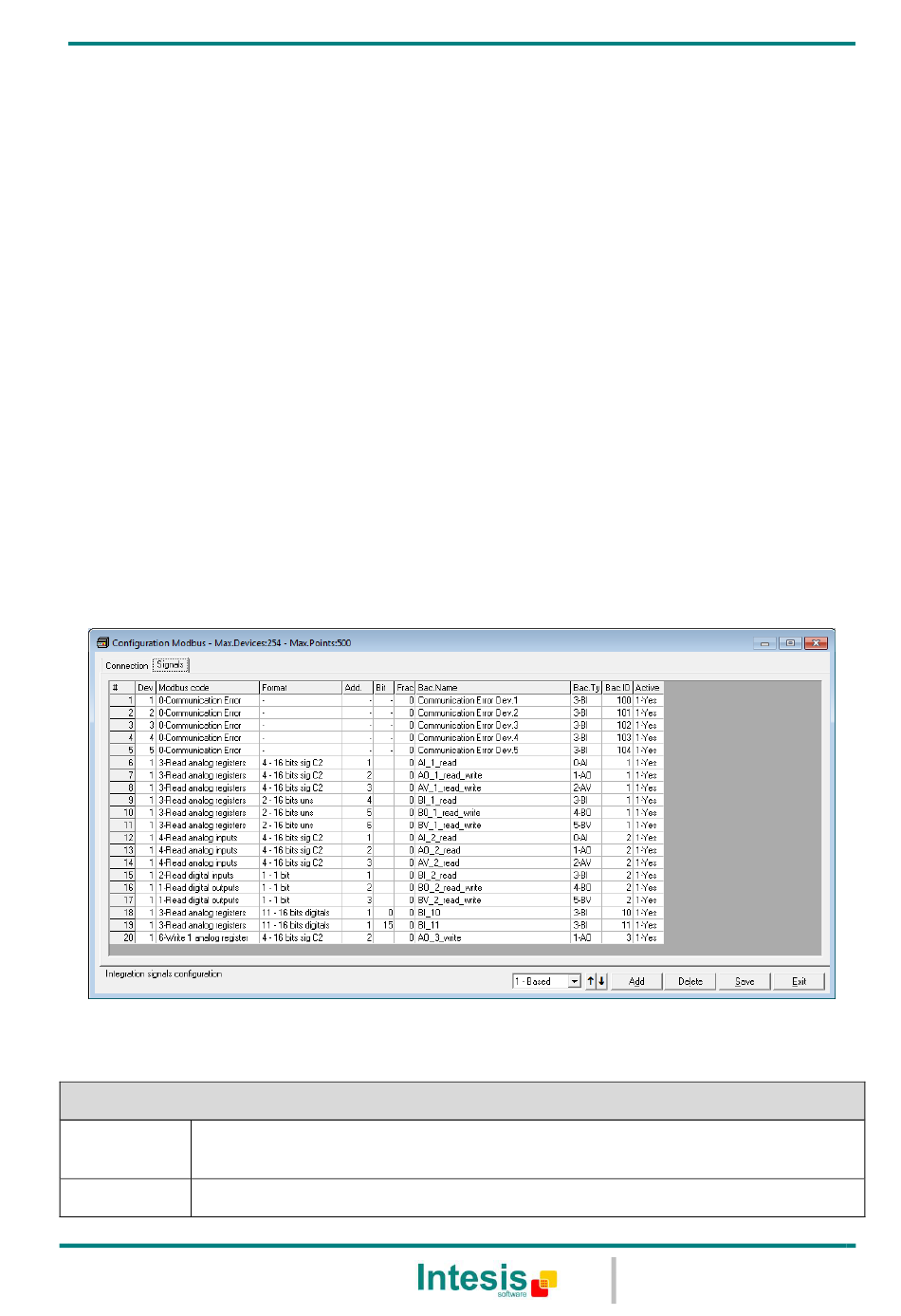

Figure 5.5 Signal list
# (Signal's number)

to be used to delete/add rows)
