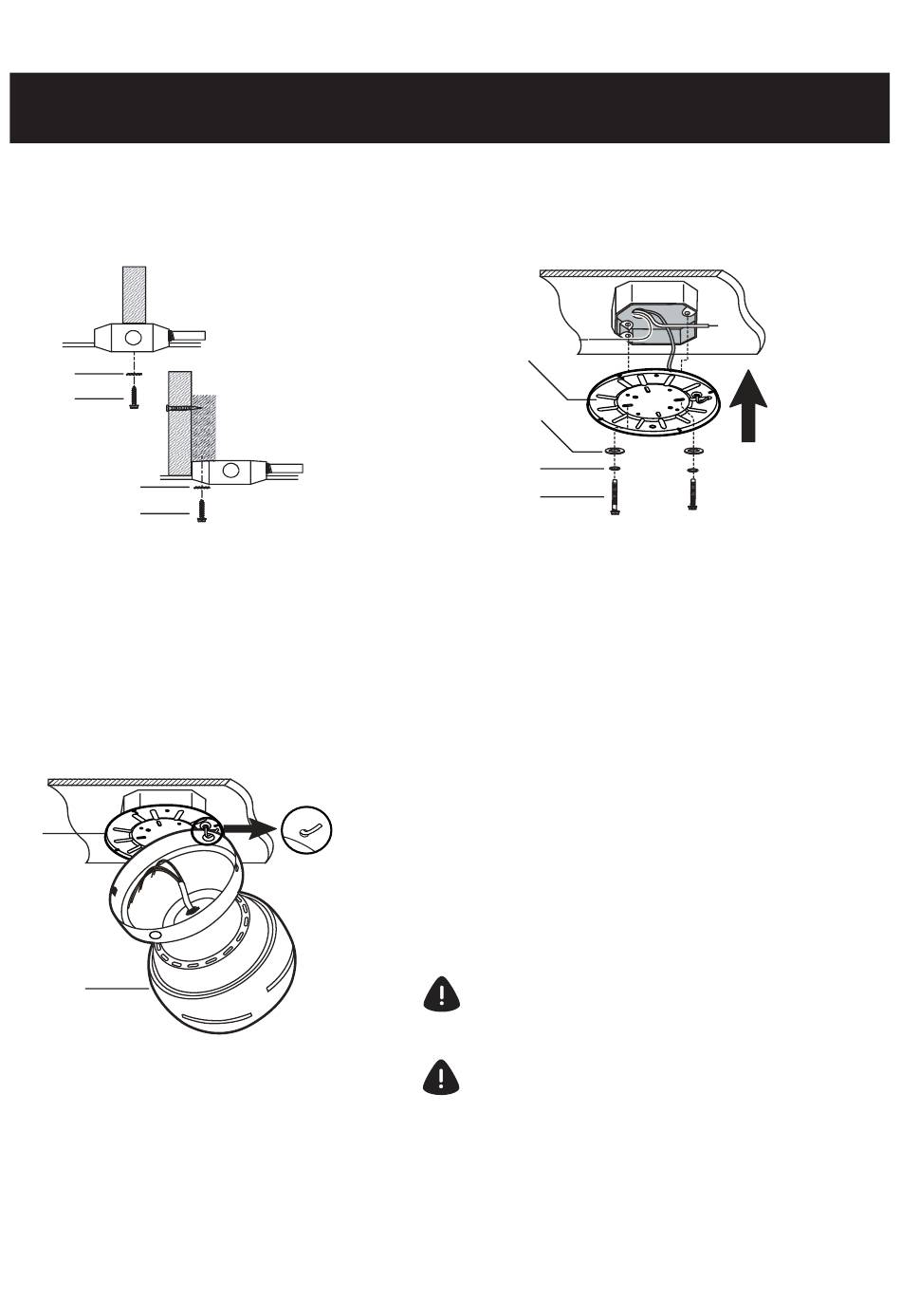

INSTALLING THE MOUNTING BRACKET

1.
C
A
C
A
Use metal outlet box (sold separately)
suitable for fan support. Secure outlet
box directly to the building structure
using wood screws (A) and star washers (C).
Outlet box must support 15.9 kg (35 lb.) min.

HANGING THE FAN

1.
Q
R
Lift the fan into position by hanging
the fan motor assembly (R) onto the
hook from the ceiling mounting
bracket (Q) allowing it to hang freely.
8

Fan Installation

2.
Install mounting bracket (Q) to the outlet
box in ceiling using the mounting screws
provided with the outlet box (two additional
mounting screws (B), spring washers (D) and
flat washers (E) are provided in the hardware
bag).
WARNING: The hook on the mounting plate is only provided
to balance the fan while making the electrical connections.
Do not leave the fan unattended while the fan is hanging
from the hook.
WARNING: Do not stand under the fan while fan is hanging
from the mounting hook and take necessary precautions to
protect floors during the fan installation.
Q
E
D
B
