Scope Multimeter

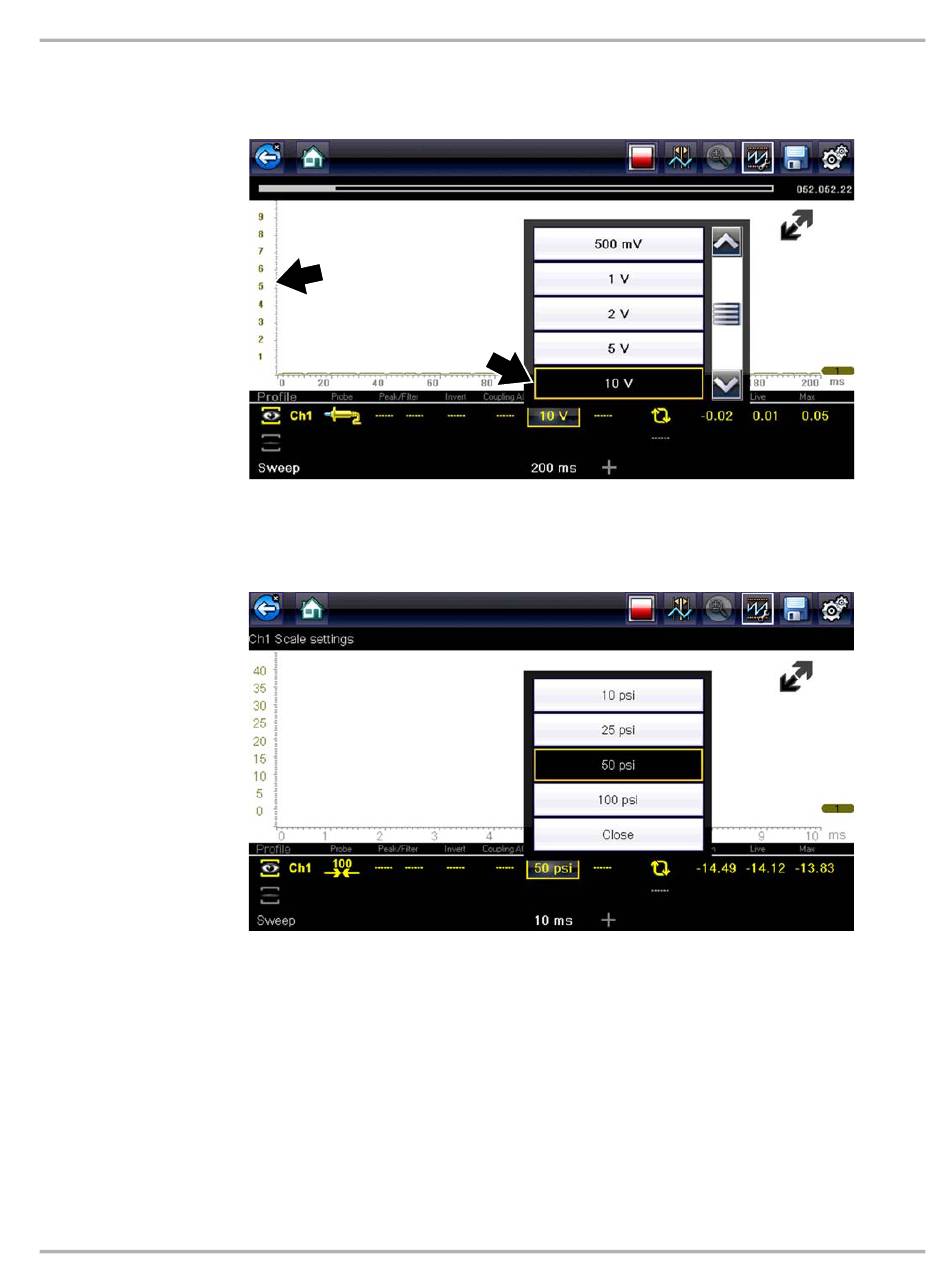

Example: Selecting 10V, changes the vertical scale to a 10V volt scale. The scale is "always"
divided by 10, therefore each division is incremented by 1V.
Example: Selecting 50 psi displays a 50 psi scale that is divided by 10, therefore each division
is incremented by 5 psi.
Figure 8-15
Figure 8-16
83
Operation and Controls
