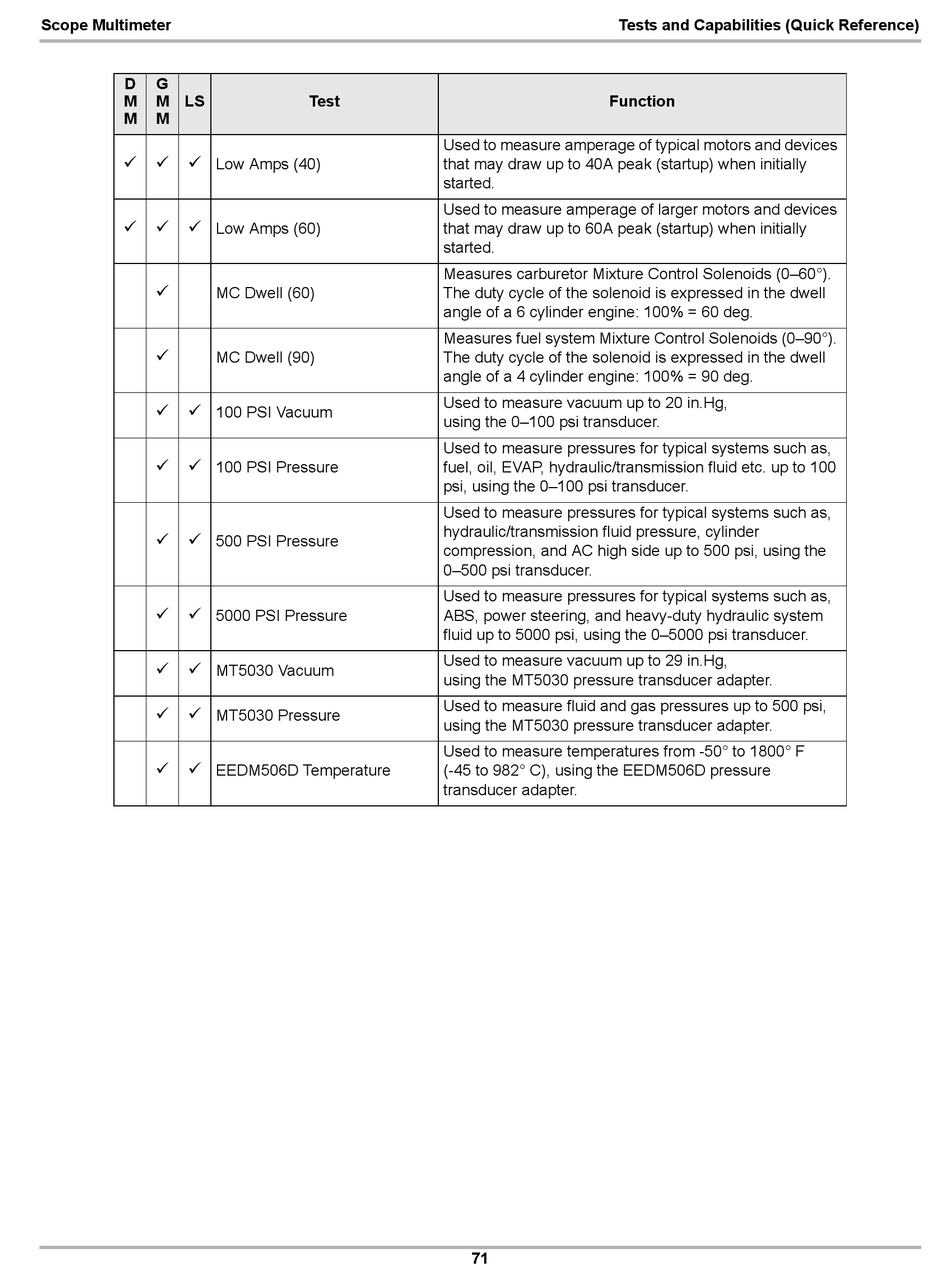

Snap-On Modis Ultra User Manual page 80

Scope Multimeter
D G
M M LS
M M
a a a Low Amps (40)
Low Amps (60)
a a a
a MC Dwell (60)
a MC Dwell (90)
a a 100 PSI Vacuum
100 PSI Pressure
a a
a a 500 PSI Pressure
a a 5000 PSI Pressure
a a MT5030 Vacuum
a a MT5030 Pressure
a a EEDM506D Temperature
Test
Used to measure amperage of typical motors and devices
that may draw up to 40A peak (startup) when initially
started.
Used to measure amperage of larger motors and devices
that may draw up to 60A peak (startup) when initially
started.
Measures carburetor Mixture Control Solenoids (0–60°).
The duty cycle of the solenoid is expressed in the dwell
angle of a 6 cylinder engine: 100% = 60 deg.
Measures fuel system Mixture Control Solenoids (0–90°).
The duty cycle of the solenoid is expressed in the dwell
angle of a 4 cylinder engine: 100% = 90 deg.
Used to measure vacuum up to 20 in.Hg,
using the 0–100 psi transducer.
Used to measure pressures for typical systems such as,
fuel, oil, EVAP, hydraulic/transmission fluid etc. up to 100
psi, using the 0–100 psi transducer.
Used to measure pressures for typical systems such as,
hydraulic/transmission fluid pressure, cylinder
compression, and AC high side up to 500 psi, using the
0–500 psi transducer.
Used to measure pressures for typical systems such as,
ABS, power steering, and heavy-duty hydraulic system
fluid up to 5000 psi, using the 0–5000 psi transducer.
Used to measure vacuum up to 29 in.Hg,
using the MT5030 pressure transducer adapter.
Used to measure fluid and gas pressures up to 500 psi,
using the MT5030 pressure transducer adapter.
Used to measure temperatures from -50° to 1800° F
(-45 to 982° C), using the EEDM506D pressure
transducer adapter.
71
Tests and Capabilities (Quick Reference)
Function
