Snap-On Vantage Ultra User Manual
  1. Manuals
  2. Brands
  3. Snap-On Manuals
  4. Other
  5. Vantage Ultra
  6. User manual

Snap-On Vantage Ultra User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
EAZ0081L00B Rev. C 31-G-18 NA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vantage Ultra and is the answer not in the manual?

Questions and answers

Related Manuals for Snap-On Vantage Ultra

Summary of Contents for Snap-On Vantage Ultra

  • Page 1 User Manual EAZ0081L00B Rev. C 31-G-18 NA...
  • Page 2 End User License Agreement. The Snap-on Incorporated Software End User License Agreement may be provided with the diagnostic tool, and is available at: https://eula.snapon.com/diagnostics. Patent Information For a listing of Snap-on products that are protected by patents in the United States and elsewhere, visit: https://patents.snapon.com User Manual Information This manual includes information and images applicable with diagnostic software version 18.4 and later.
  • Page 3 - Click on the “Training & Support” tab, select the applicable diagnostic tool, then select “See Training”. NOTE: Sample titles are listed below. Not all titles may be available for all diagnostic tools, and are subject to change. Snap-on® Training Solutions® - Training Videos (examples) Introduction and Navigation Global OBD-II Scanner Codes...
  • Page 4 Diagnostic Quick Tips - Video Series Snap-on Diagnostic Quick Tips videos are available at no charge on our website and on our YouTube channel. These videos are developed from real repair case studies to help professional technicians use diagnostic tools to solve specific vehicle problems (e.g.
  • Page 5 Diagnostic Quick Tips - Video Series Snap-on® Training Solutions® - Diagnostic Quick Tips Videos (examples) Hyundai Blind Spot Detection System Chrysler HVAC Test Calibration Chrysler VVT System Cleaning Hyundai Occupant Detection System Reset Chrysler Wheel & Tire Calibrations Ignition Coil Current and Voltage Comparison...

  • Page 6: Safety Information

    Safety Information READ ALL INSTRUCTIONS For your own safety, the safety of others, and to prevent damage to the product and vehicles upon which it is used, it is important that all instructions and safety messages in this manual and the accompanying Important Safety Instructions manual be read and understood by all persons operating, or coming into contact with the product, before operating.
  • Page 7 Safety Information Safety Signal Words Safety Signal Words All safety messages contain a safety signal word that indicates the level of the hazard. An icon, when present, gives a graphical description of the hazard. Safety Signal words are. Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders.

  • Page 8: Table Of Contents

    Contents Safety Information ........................ v Chapter 1: Using This Manual .....................4 Content ...........................4 Conventions..........................4 Terminology ........................4 Symbols ...........................4 Bold Text ..........................4 Notes and Important Messages ..................5 Hyperlinks ........................5 Procedures........................5 Chapter 2: Introduction......................6 Control Buttons........................6 Data and Power Connections....................7 Battery Pack and Stand......................8 Power Sources ........................8 Internal Battery Pack......................8 AC Power Supply ......................9...
  • Page 9 Saving and Reviewing Data Files ..................29 Chapter 5: Scope Multimeter..................... 30 Overview..........................30 Digital Multimeter (DMM) ....................30 Graphing Multimeter (GMM) ..................31 Lab Scope ........................32 Tests and Capabilities (Quick Reference) ................33 Test Leads and Accessories ....................35 Channel 1 Lead......................35 Channel 2 Lead......................
  • Page 10 Connect-to-PC .......................87 Configure Shortcut Button....................88 System Information ......................88 Settings .......................... 89 Chapter 8: Maintenance .....................96 Cleaning and Inspecting the Diagnostic Tool ............... 96 Cleaning the Touch Screen ...................96 Battery Pack Service ......................96 Battery Pack Safety Guidelines ..................97 Replacing the Battery Pack....................98 Disposing of the Battery Pack ..................99 Chapter 9: ShopStream Connect ..................100 Using SSC (Connecting to your PC) ..................

  • Page 11: Chapter 1 Using This Manual

    Using This Manual Chapter 1 1.1 Content This manual contains basic operating instructions and is structured in a manner to help you become familiar with your Diagnostic Tool features and perform basic operations. The illustrations in this manual are intended as reference only and may not depict actual screen results, information, functions or standard equipment.

  • Page 12: Notes And Important Messages

    Using This Manual Conventions 1.2.4 Notes and Important Messages The following messages are used. Notes A NOTE provides helpful information such as additional explanations, tips, and comments. Example: NOTE: For additional information refer to... Important IMPORTANT indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle.

  • Page 13: Chapter 2 Introduction

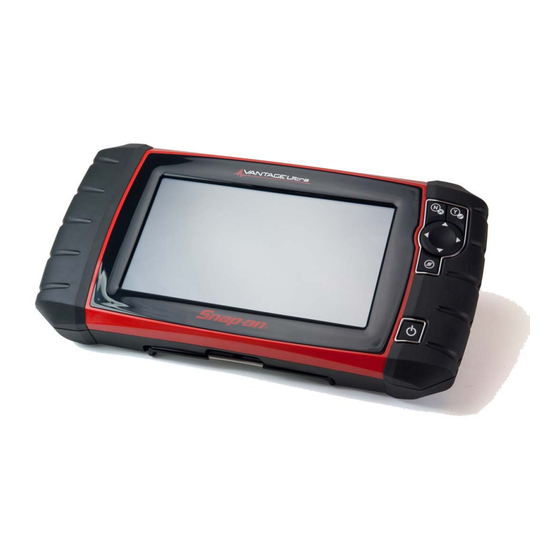

    The Vantage Ultra is a multi-function two-channel lab scope, graphing multimeter, and the exclusive Snap-on Guided Component Test database combined into a single hand-held Diagnostic Tool. This chapter introduces the basic features of the Diagnostic Tool, including the control buttons, meter connections, battery pack, and power sources.

  • Page 14: Data And Power Connections

    Introduction Data and Power Connections Item Button Description Buttons move the cursor or highlight in their respective direction: Up ( Directional - Thumb • pad rocker type buttons Down ( • Left ( • Right ( • Programmable function button that can provide a (Shortcut) - Push type shortcut for performing a variety of routine tasks.

  • Page 15: Battery Pack And Stand

    Introduction Battery Pack and Stand 2.3 Battery Pack and Stand Figure 2-3 Back view Item Description Built in-Stand (shown closed) - The built-in stand extends from the back of the Diagnostic Tool and clips into the Diagnostic Tool for storage. Battery Cover - connection for AC power supply jack 2.4 Power Sources Your Diagnostic Tool can receive power from any of the following sources:...

  • Page 16: Ac Power Supply

    Introduction Technical Specifications The Battery Status Indicator LED (located next to the DC power supply jack) indicates battery status (Figure 2-3). Green - indicates battery is fully charged • Red - indicates battery is charging • Amber - indicates a battery issue. This is usually caused by excessive battery temperature •...

  • Page 17: Chapter 3 Basic Operation And Navigation

    Basic Operation and Chapter 3 Navigation This chapter describes basic Diagnostic Tool operation, navigation, screen layout, icon functions, and screen messages. Before you operate the Diagnostic Tool, make sure the battery pack is fully charged or the Diagnostic Tool is powered by the AC power supply. 3.1 Turning On/Off and Emergency Shutdown The following sections describe how to turn the Diagnostic Tool on and off and how to perform an emergency shutdown.

  • Page 18: Basic Navigation

    Basic Operation and Navigation Basic Navigation 3.2 Basic Navigation 3.2.1 Home Screen Layout The Home screen includes a title bar and main body. The Home screen contains icons, one for each of the primary Diagnostic Tool functions. 1— Title Bar 2—...

  • Page 19: Home Screen Icons

    Basic Operation and Navigation Basic Navigation The Title bar displays other information that varies depending upon what functions are being performed. Other information may include: The identification (ID) of the test vehicle • The name of the active menu or function •...

  • Page 20: Common Toolbar Control Icons

    Basic Operation and Navigation Basic Navigation 3.2.4 Common Toolbar Control Icons Common control icon functions are described in the following table. Specific function control icons are described in their applicable chapters. Displayed control icons vary depending on the active function or test. Select a control icon on a screen to activate a control function. You can also use the control buttons to activate a function, a yellow border around the icon indicates it is highlighted, or in focus.

  • Page 21: Scroll Bar

    Basic Operation and Navigation Screen Messages 3.2.5 Scroll Bar A vertical scroll bar appears along the right-hand edge of the screen when additional data expands above or below what is currently on the screen (Figure 3-2). Figure 3-2 Scroll bar 1—...

  • Page 22: Chapter 4 Guided Component Tests

    Guided Component Tests Chapter 4 The Guided Component Tests function provides you with an extensive collection of vehicle specific component tests and reference information. It is like having access to a complete library of automotive repair manuals for testing multiple vehicle components. The preconfigured meter tests and reference information provided are vehicle specific and designed to help save you diagnostic time, verify faulty components, and verify the repair.

  • Page 23: Power User Tests

    Here is a sample listing of the types and specific tests that may be available within Power User Tests: Current Probe Tests - provides common tests configured to use the Snap-on Low Amp • Current probes or generic Low Amp Current probes. Snap-on Low Amp Current Probe operation information is also provided within the Snap-on Low Amp Probe Reference Manual option.
  • Page 24 • Non-Heated Oxygen Sensor • Open and Closed Loop • Oxygen Sensor Types • Understanding Oxygen Sensors (includes configured meter test) Snap-on Automotive Theory— provides basic theory information on multiple topics • including: • Air Conditioning • Diagnosing Battery Draws...
  • Page 25 20-minute Current Ramp Classes—provides an introduction to current ramp testing using • the Snap-on Low Amp Current Probes. Snap-on Low Amp Current Probe operation information is also provided within the Snap-on Low Amp Probe Reference Manual option. Topics may include: • Fuel Injector Current Ramp (multiple types) •...

  • Page 26: Screen Layout And Icons

    Guided Component Tests Screen Layout and Icons skills and diagnostic techniques without connecting to an actual vehicle. Contact your sales representative for details. Accessories—provides descriptions for the optional accessories available for the diagnostic • tool. Accessory topics may include: • Low Amp Probe •...
  • Page 27 Guided Component Tests Screen Layout and Icons Main Body The main body of a Guided Component Test screen may display any of the following: Selectable Menu - Select menu options using the touch screen or control buttons. • Component Information - Provides information to assist you with testing. •...

  • Page 28: Guided Component Tests Control Icons

    Guided Component Tests Screen Layout and Icons 4.2.2 Guided Component Tests Control Icons Guided Component Tests toolbar control icons may vary depending on the active function or test. A yellow frame surrounding an icon (highlighted), indicates it is selected. Other control icons (not shown) are described in Common Toolbar Control Icons‚...

  • Page 29: Operation

    Guided Component Tests Operation 4.3 Operation As the information and tests provided within the Guided Component Test function is vehicle specific, the vehicle must first be identified in order to retrieve the correct data. 4.3.1 Vehicle Identification The Guided Component Test information presented is specific to the vehicle being tested. Therefore, the vehicle must be identified so that the correct data can be retrieved.
  • Page 30 Guided Component Tests Operation A confirmation screen displays once all the required information has been entered (Figure 4-4). Figure 4-4 Vehicle confirmation screen 5. From the Confirm Vehicle screen select: a. OK to continue. b. Cancel to return to the previous screen. A list of systems available for testing displays (Figure 4-5).
  • Page 31 Guided Component Tests Operation To select a system and component to test: 1. Select a system from the list (Figure 4-6). Figure 4-6 Systems Menu A list of Components (and/or sub systems) is displayed (Figure 4-7). 2. Select a Component to continue. Figure 4-7 Component Menu Depending on the vehicle and component selected, different options and sub-menus may be displayed.

  • Page 32: Component Information

    Guided Component Tests Operation 4.3.2 Component Information Component Information provides (if available) specific operational information on the selected component, and may also include electrical connector and pin location and function details To view component information: 1. Select a component. 2. Select Component Information from the Component Test menu (Figure 4-8).
  • Page 33 Guided Component Tests Operation Figure 4-10 Component Information Screen - Continued Screens are divided into sections to quickly guide you to the correct information (available sections and information will vary): • Operation—provides a general description of component operation. • Tech note—provides component related tips (e.g. common failures or faults), additional information may include OEM service updates and recall information.

  • Page 34: Tests

    Guided Component Tests Operation 4.3.3 Tests Tests provides (if available) specific instructions to help you perform tests on components. Selecting a component test opens a preconfigured meter to start the test, and may also provide connection instructions, specifications and testing tips. To select a test: 1.
  • Page 35 Guided Component Tests Operation The test screen displays (Figure 4-12). A Guided Component Test screen initially opens with the information panel below the main body. Use the scrollbar to display hidden information. Figure 4-12 Test screen Tap on the Information Panel once to display the information panel in full screen view. Tap on it again to return to split view.

  • Page 36: Saving And Reviewing Data Files

    Guided Component Tests Operation Figure 4-14 Waveform Example 3. Select Back on the toolbar to return to the menu. Channel Settings The test meter is preconfigured, for most of the component tests. However, if the need to change channel settings is needed, adjustments can be made by selecting the Control Panel icon from the toolbar to display the Control Panel (Figure 4-15).

  • Page 37: Chapter 5: Scope Multimeter

    Scope Multimeter Chapter 5 The Scope Multimeter function allows you to perform multiple types of circuit and component measurement tests. This chapter includes general operation procedures, instructions for saving and reviewing test data, optional settings, and general reference information. 5.1 Overview The Scope Multimeter test functions are: Digital Multimeter (DMM) •...

  • Page 38: Graphing Multimeter (Gmm)

    Scope Multimeter Overview 5.1.2 Graphing Multimeter (GMM) Unlike the DMM, the graphing multimeter provides two channels for testing and plots a visual graphing line of the signal instead of displaying digital values. The GMM displays a signal’s measurements over time on a two-dimensional grid. This plotted graph is basically a graphical history (histogram) of the signal’s measurements over time.

  • Page 39: Lab Scope

    Scope Multimeter Overview 5.1.3 Lab Scope Similar to the GMM, the lab scope (oscilloscope) plots a visual image line of a signal’s measurements over time on a two-dimensional grid. The visual line that is displayed is commonly called a trace, and the graphical form created by a signal is called a waveform. Unlike the DMM, the lab scope allows you to visually see a signals waveform, which in turn allows you to see the strength and shape of the signal, as well as any noise that may be occurring on the circuit.

  • Page 40: Tests And Capabilities (Quick Reference)

    Scope Multimeter Tests and Capabilities (Quick Reference) 5.2 Tests and Capabilities (Quick Reference) The following chart identifies and describes available tests by function. NOTE: Not all the tests listed are described in this manual. This list is intended as reference only. Test Function Two Channel Lab Scope...
  • Page 41 Scope Multimeter Tests and Capabilities (Quick Reference) Test Function Used to measure amperage of typical motors and devices Low Amps (40) that may draw up to 40A peak (startup) when initially started. Used to measure amperage of larger motors and devices Low Amps (60) that may draw up to 60A peak (startup) when initially started.

  • Page 42: Test Leads And Accessories

    Scope Multimeter Test Leads and Accessories 5.3 Test Leads and Accessories Some of the leads, probes and adapters supplied with or that may be available, are explained in the following section. NOTE: Not all test leads and/or accessories may be available in all markets. Contact your sales representative for information, or to find out more about these and other available accessories.

  • Page 43: Alligator Clips And Probes

    Scope Multimeter Test Leads and Accessories 5.3.3 Alligator Clips and Probes Insulated alligator clips and probes (pointed type) can be attached to the end of the test leads. Each alligator clip is color matched with a test lead, and the probes are available in red and black. Figure 5-3 Alligator clips 5.3.4 Secondary Ignition Coil Adapter Lead and Clip-on Adapter (optional)

  • Page 44: Temperature Probe Adapter (Optional)

    Scope Multimeter Test Leads and Accessories 5.3.6 Temperature Probe Adapter (optional) The temperature probe adapter can be used to measure temperatures ranging from –50° F to 1,800° F. Different probes are available for surface, fluid and air temperature measurements. Figure 5-6 5.3.7 Pressure Transducers and Adapters (optional) Different pressure transducers and adapters are available for measuring positive and negative gas and liquid pressures.

  • Page 45: Waveform Demonstration Tools (Optional)

    Scope Multimeter Test Leads and Accessories 5.3.8 Waveform Demonstration Tools (optional) To help you sharpen your lab scope and graphing multimeter skills, optional waveform demonstration tools are available as a training aid. These demonstration tools generate common waveforms, and allow you to vary their display characteristics by turning glitches on/off, helping you to become more familiar with the lab scope controls.

  • Page 46: General Information

    Scope Multimeter General Information 5.4 General Information This section describes the general Scope Multimeter control icon functions, screen layout and optional settings. The screen layout and control icon functions are shared between the digital/graphing multimeters and lab scope. NOTE: Scope and Multimeter tests are not vehicle specific, therefore vehicle identification is not required. 5.4.1 Scope Multimeter Screen Layout and Features 1—...
  • Page 47 Scope Multimeter General Information Scope Multimeter Control Icons The following control icons are common across most Scope Multimeter functions, however use may vary depending on the active function or test. A yellow frame surrounding an icon (highlighted), indicates it is selected. Other control icons (not shown) are described in Common Toolbar Control Icons‚...

  • Page 48: Measurement Out Of Range (Alert)

    Scope Multimeter General Information 5.4.2 Measurement Out of Range (Alert) When performing a test, if a group of arrows displays onscreen, this indicates that the measurement is out of range for the scale selected. Arrows pointing UP—measurement over maximum range •...

  • Page 49: Operation And Controls

    Scope Multimeter Operation and Controls 5.5 Operation and Controls This section describes the general operation and controls used to configure the scope or meter to perform testing. All three functions share similar control panel settings, see Control Panel and Settings‚ on page 44 for additional information. NOTE: The information in the following sections is intended as a guide and general overview of the controls and functions used within the Scope Multimeter.

  • Page 50: Test Lead / Probe Calibration

    Scope Multimeter Operation and Controls 5.5.2 Test Lead / Probe Calibration Certain tests may display a confirmation prompt asking “Do you wish to calibrate this probe?” before continuing with the test. As general practice, it is important to ensure the test probe is calibrated before testing, to ensure accurate results.

  • Page 51: Control Panel And Settings

    Scope Multimeter Operation and Controls 5.5.3 Control Panel and Settings The control panel is common to all three Scope Multimeter functions, and contains the channel (or “trace”) settings and controls that are used to monitor and adjust the signal being measured.
  • Page 52 Scope Multimeter Operation and Controls Scale, Sweep and Probe Settings The most common and typically the first adjustments made when performing tests are the setup or adjustment of the scales and selection of a probe. All three of these adjustments are made from the control panel and are described in the following sections.
  • Page 53 Scope Multimeter Operation and Controls Example: Selecting 10V, changes the vertical scale to a 10V volt scale. The scale is “always” divided by 10, therefore each division is incremented by 1V. Figure 5-15 Example: Selecting 50 psi displays a 50 psi scale that is divided by 10, therefore each division is incremented by 5 psi.
  • Page 54 Scope Multimeter Operation and Controls Sweep (Horizontal or Time scale adjustment) The horizontal scale (X-axis) represents time, and the unit of measurement it is being measured in. The horizontal scale is “always” divided into10 major divisions, how these divisions are defined, sets the scale of measurement.
  • Page 55 Scope Multimeter Operation and Controls Probe (Probe type “test” selection) Different types of Probes are available from the probe option menu, depending on which type of test you are performing. Changing the probe selection, also changes the vertical scale to the applicable type of measurement.
  • Page 56 Scope Multimeter Operation and Controls Channel Settings The majority of the channel (trace) settings and controls are located in the Control Panel. Each setting is represented by an icon, or a value. Icons are used to make adjustments, and the displayed values represent an individual characteristic.
  • Page 57 Scope Multimeter Operation and Controls Show/Hide (Channel display on/off) The Show/Hide icons allow you to turn the channels on and off. To turn a channel on and off, select the applicable channel’s Show/Hide icon. Show/Hide Icons On (Channel displayed) Off (Channel not displayed) Trace (Zero Baseline position adjustment) The Trace icon identifies the channel number and is used to open the zero baseline adjustment controls.
  • Page 58 Scope Multimeter Operation and Controls Peak Detect On When peak detect is “on”, all sample points are evaluated. The points stored to the data buffer memory are intelligently selected to capture fast events that might be missed at slower effective sample rates.
  • Page 59 Scope Multimeter Operation and Controls Filter - GMM Using the filter with the GMM, the filter minimizes noise by ignoring or smoothing out fast signal spikes. For a direct measurement test, such as volts, amps, or pressure, the filter minimizes the •...
  • Page 60 Scope Multimeter Operation and Controls Coupling AC Coupling AC subtracts the average value of a signal so that small variations can be displayed in the waveform. This is accomplished by blocking the direct current (DC) portions of a signal in order to amplify (show) the alternating current (AC) portions of the signal, without driving the trace off of the screen.
  • Page 61 Scope Multimeter Operation and Controls To turn a trigger on/off: A trigger is activated by selecting the trigger icon from the control panel, which then automatically initiates trigger slope setup. 1. Select the desired channel’s Trigger icon. Each tap of the icon sets the trigger to a different slope setting, or turns the trigger off. 2.
  • Page 62 Scope Multimeter Operation and Controls 6. Press the N/X button, to exit. 1— Trigger Marker 2— Trigger Position Control Panel Figure 5-21 Trigger marker and position controls 1— Trigger Marker (out of range symbol) 2— Waiting for Trigger Message 3— Trigger Position Control Icon Figure 5-22...
  • Page 63 Scope Multimeter Operation and Controls Trigger Auto/Manual Mode (Optional Setting) NOTE: The Auto and Manual Trigger modes allow you to set the criteria used to display signals on the screen. To change the trigger mode, the trigger must be set on one of the channels. In both Auto and Manual Trigger mode the screen is updated when the signal crosses the trigger point in the selected direction (rising or falling), however: Auto Trigger—(default mode)
  • Page 64 Scope Multimeter Operation and Controls To activate the Threshold function, select the Threshold icon, then select Continue from the confirmation screen (Figure 5-23). Once selected, the Threshold function remains active until the test is exited. Figure 5-23 Auto Threshold Confirmation Screen If after enabling the Threshold function, if the signal is still not displayed, reduce the vertical scale setting.
  • Page 65 Scope Multimeter Operation and Controls Min, Live and Max Display Panel When Cursors are turned off, the Min, Live and Max display panel (Figure 5-24) is turned on displaying each channel’s active signal minimum and maximum recorded measurements and live measurement.
  • Page 66 Scope Multimeter Operation and Controls To turn the cursors on/off: 1. To turn the Cursors on (display), select the Cursor icon from the toolbar. Two cursors are displayed on the test screen, and the Refresh, Min, Live, Max display panel is switched off and replaced by the cursor measurements panel.

  • Page 67: Secondary Ignition Testing

    Scope Multimeter Operation and Controls Cursor Measurements Panel When the cursors are turned on, the Refresh, Min, Live, Max display panel is switched off and replaced by the Cursor Measurements Panel. The cursor measurements panel displays the following signal and cursor measurements: Signal amplitude at two points •...
  • Page 68 Scope Multimeter Operation and Controls Different secondary ignition coil adapters are available as optional equipment. These adapters attach to either the secondary lead (spark plug lead) or directly to the secondary ignition coil in order to pick up the secondary ignition signal. Universal kV Ignition Clip-on adapter - clips over a spark plug or coil lead.

  • Page 69: Optional Settings

    Scope Multimeter Optional Settings Once a signal is displayed, further channel settings may be required to display the pattern characteristics you a looking for. Figure 5-26 Typical Secondary Ignition Signal 5.6 Optional Settings The following optional Scope/Meter settings are available, and can be set to your preference: Trigger Auto/Manual Mode (Optional Setting)‚...

  • Page 70: Divisions

    Scope Multimeter Optional Settings Changing the Display (grid on/off): 1. Select the Tools icon from the Home screen. 2. Select Settings > Configure Scope/Meter > Display from the menu options. 3. Select the desired option: Show Grid—turns grid lines on –...
  • Page 71 Scope Multimeter Optional Settings To access the divisions option menu: 1. Select Tools from the Home screen. 2. Select Settings from the Tools and Setup menu. 3. Select Configure Scope/Meter from the Settings menu. 4. Select Divisions from the menu. 5.
  • Page 72 Scope Multimeter Optional Settings Trace Per Division - changes the dropdown vertical scale menu selections to ##/div mode, which in turn changes the vertical scale to represent ## by division. ## - represents (variable) what is being measured (voltage, amperage, pressure etc.) Example (Figure 5-30): Selecting 1.0V/div, displays a vertical scale divided by 10.
  • Page 73 Scope Multimeter Optional Settings Display Settings The Display setting allows you to change the displayed value in the Vertical Scale icon to your preference. NOTE: This setting ONLY changes the value displayed in the Vertical Scale icon. Display Full Scale - displays the value of the entire (full) scale Example (Figure 5-31): If the vertical scale is set to 1V, the value displayed is 1V.

  • Page 74: Saving And Reviewing Scope / Multimeter Data Files

    Scope Multimeter Saving and Reviewing Scope / Multimeter Data Files 5.7 Saving and Reviewing Scope / Multimeter Data Files The following section describes the procedures used to save and review Scope/Multimeter and Guided Component Tests data files. 5.7.1 Data Buffer The graphing multimeter and lab scope functions have the capability to save, store and playback, data (test signals) utilizing internal storage memory and buffer memory.

  • Page 75: Saving Files

    Scope Multimeter Saving and Reviewing Scope / Multimeter Data Files 5.7.2 Saving Files Selecting the Save icon writes the data stored in buffer memory to a file. Saving data files is useful when trying to isolate an intermittent problem or to verify a repair during a road test. The saved file can be played back (similar to a movie clip) by selecting Previous Vehicles and Data >...

  • Page 76: Stopping And Reviewing Data Files

    Scope Multimeter Saving and Reviewing Scope / Multimeter Data Files 5.7.3 Stopping and Reviewing Data Files During normal scope multimeter operation, data is continuously being store stored in buffer memory as it is displayed onscreen. The Stop feature, allows you to temporarily stop the waveform (signal) to review it in detail.

  • Page 77: Saving Screens

    Scope Multimeter Saving and Reviewing Scope / Multimeter Data Files To resume: Select the Record icon. • The display changes back and the Stop icon is shown on the toolbar. NOTE: The Shortcut button can be set to perform the Pause/Play function. See Configure Shortcut Button‚...
  • Page 78 Scope Multimeter Saving and Reviewing Scope / Multimeter Data Files NOTE: Zoom playback controls are identical to the standard playback controls used when reviewing data files, with the following exception: Skip Forward / Skip Back control icons - (press once) moves multiple steps relative to set magnification level (e.g.
  • Page 79 Scope Multimeter Saving and Reviewing Scope / Multimeter Data Files 1— Waveform Glitches 3— Magnification Level at 32X 2— Magnification Level at 128X Figure 5-38 Examples of Magnification Level at 32X and 128X Figure 5-39 shows an example at 16X of the same waveform shown in Figure 5-37 Figure 5-38.

  • Page 80: General Reference

    Scope Multimeter General Reference 5.8 General Reference 5.8.1 Basic Setup Tips (unknown signal type) When conducting automotive diagnostics, situations may arise when you need to capture and analyze a signal that you are not familiar with, or know what the intended waveform pattern should look like, or even how to set the scope to acquire the signal.

  • Page 81: Using Known Good Waveforms

    Scope Multimeter General Reference As a default setting, trigger is normally off. The scope/meter uses internal circuitry to display a signal if present. However, in certain circumstances additional channel adjustments may be required, or the trigger mode may have to be turned on, for a signal that is present but is not displayed.
  • Page 82 1. Sign in to ShopKeyPro.com. If not already a member, sign up using the website or see you Snap-on sales representative. 2. Enter (identify) the vehicle details in the search field at the top of the screen (Figure 5-40).
  • Page 83 Scope Multimeter General Reference Figure 5-41 Waveform examples...

  • Page 84: Troubleshooting Signals

    Use the shortest test leads possible. • Try different test leads, to verify the issue. Use the recommended snap-on leads or probes • available for the diagnostic tool or equivalent. Shielded test leads are recommended. Check the test lead or probes for damage.

  • Page 85: Units Of Measurement / Conversions

    Scope Multimeter General Reference 5.8.4 Units of Measurement / Conversions Base Units (Symbol) / Unit Prefix Typical Expressions (µ) micro 0.000001 or 10 or 1/1,000,000 (m) milli 0.001 or 10 or 1/1,000 (c) centi 0.01 or 10 or 1/100 (k) kilo or 1,000 (M) mega or 1,000,000...
  • Page 86 Scope Multimeter General Reference Pressure Units (Symbol) / Description Equivalents (kPa) KiloPasca 1 kPa = 1000 Pa (MPa) Megapascal 1 MPa = 1,000,000 Pa 1 inHg = 0.03386388 bar (inHg) inches of mercury 1 inHg = 0.4911541 psi 1 inHg = 3386.388 Pa Pressure Conversions psi x 0.0689 = bar psi x 6.8950 = kPa...

  • Page 87: Glossary Of Common Terms

    Scope Multimeter General Reference Duty % to Dwell Conversions Duty Cycle Dwell 4 cyl 6 cyl 8 cyl 36.0 24.0 18.0 45.0 30.0 22.5 54.0 36.0 27.0 63.0 42.0 31.5 72.0 48.0 36.0 81.0 54.0 40.5 90.0 60.0 45.0 5.8.5 Glossary of Common Terms Term / Abbreviation Description Alternating Current - electrical current that switches polarity at...
  • Page 88 Scope Multimeter General Reference Term / Abbreviation Description Horizontal Scale See Sweep Scale Invert Function used to switch signal polarity, Used to represent a numerical value denoting the actual measured air/fuel ratio with respect to the ideal air/fuel ratio at stoichiometry.
  • Page 89 Scope Multimeter General Reference Term / Abbreviation Description The threshold function automatically sets a trigger and determines a threshold level in the middle of the signal range Threshold (calculated from the Min and Max measurements) to be used as a reference point to calculate the measurement. Trace The actual visible line displayed on the scope screen.

  • Page 90: Chapter 6 Previous Vehicles And Data

    Previous Vehicles and Data Chapter 6 This chapter describes the basic operation of the Previous Vehicles and Data function. The Previous Vehicles and Data icon is located on the Home screen. This function allows you to select recently tested vehicles and access saved data files. 6.1 Previous Vehicles and Data Menu The following options are available from the Previous Vehicles and Data menu: Vehicle History...

  • Page 91: View Saved Data

    Previous Vehicles and Data Previous Vehicles and Data Menu To select from the vehicle History: 1. Select Previous Vehicles and Data from the Home screen. 2. Select Vehicle History from the menu. A list of up to 25 previously tested vehicles displays. Each vehicle is given a unique file name. Scroll to view the entire list.

  • Page 92: Delete Saved Data

    Previous Vehicles and Data Previous Vehicles and Data Menu 6.1.3 Delete Saved Data This menu option is used to permanently erase saved files from memory. To delete a saved file: 1. Select Previous Vehicles and Data from the Home screen. 2.

  • Page 93: Chapter 7 Tools

    Tools Chapter 7 This chapter describes the basic operation of the Tools function. The Tools icon is located on the Home screen. This function allows you to configure Diagnostic Tool settings to your preferences. 7.1 Tools Menu The following options are available from the Tools menu: Connect-to-PC—use to transfer and share files with a personal computer (PC) •...

  • Page 94: Connect-To-Pc

    Tools Tools Menu 7.1.1 Connect-to-PC Connect-to-PC allows you to transfer saved data files on your Diagnostic Tool to your personal computer using a USB cable. The optional ShopStream Connect™ PC software allows you to view, print and save data files on your PC.

  • Page 95: Configure Shortcut Button

    Tools Tools Menu 7.1.2 Configure Shortcut Button This feature allows you to change the function of the Shortcut button. Options are: Brightness— pens the brightness setting screen. • Save Screen—saves a bitmap image of the visible screen. • Save Movie—writes data from buffer memory to a file for future playback. •...

  • Page 96: Settings

    Tools Tools Menu 7.1.4 Settings This Tools selection allows you to adjust certain basic Diagnostic Tool functions to your personal preferences. Selecting opens an additional menu that offers the following: System Settings - see System Settings‚ on page 89 • Configure Units - see Configure Units‚...
  • Page 97 Tools Tools Menu Brightness Selecting this option opens the brightness setting screen for adjusting the back lighting of the display (Figure 7-4). Figure 7-4 Brightness setting Each push of the Plus and Minus icons, or the up (b) and down (d) arrows, incrementally changes the back lighting up or down respectively.
  • Page 98 Tools Tools Menu High Contrast Toolbar This option allows you to switch to a high contrast toolbar. This toolbar features black and white icons with crisp graphics that are easier to see in poor lighting conditions or bright sunlight. Figure 7-5 High-contrast toolbar Selecting opens a menu with two choices;...
  • Page 99 Tools Tools Menu Selecting opens a menu with two choices: Normal Font and Bold Font. Select a menu item or scroll and then press the Y/a button to make a selection. The change is instantaneous. Select the Back or Home icon on the toolbar to return to either the Settings menu or the Home screen. Backlight Time This option allows you to configure how long the screen backlight remains on when the Diagnostic Tool is inactive.
  • Page 100 Tools Tools Menu 4. Select each box on the screen as it displays. The display returns to the Settings menu once the screen calibration procedure is complete. Time Zone This option opens a menu of time zone settings. Scroll to highlight, then select the local time zone. The display returns to the Settings menu once a time zone is selected.
  • Page 101 Tools Tools Menu Daylight Savings Time This option opens a menu to configure the internal clock for Daylight Savings Time. Choose from: ON—sets the clock for Daylight Savings time. • OFF—sets the clock for standard time. • Make either selection, then select the Back icon or press the N/X button to return to the menu. Time Format This option determines whether time is displayed on a 12 or 24 hour clock.
  • Page 102 Tools Tools Menu Configure Units Selecting opens a dialog box that allows you to choose between US customary or metric units of measure for temperature, vehicle speed, air pressure, and other pressures. Figure 7-9 Configure units menu To change the units setup: 1.

  • Page 103: Chapter 8 Maintenance

    Maintenance Chapter 8 This chapter describes basic cleaning and battery replacement procedures for your Diagnostic Tool. 8.1 Cleaning and Inspecting the Diagnostic Tool Periodically perform the following tasks to keep your Diagnostic Tool in proper working order: Check the housing, cables and connectors for dirt and damage before and after each use. •...

  • Page 104: Battery Pack Safety Guidelines

    Maintenance Battery Pack Service Risk of explosion. • Use the proper factory battery pack only, incorrect replacement or tampering with the battery pack may cause an explosion. Explosion can cause death or serious injury. 8.2.1 Battery Pack Safety Guidelines IMPORTANT: The battery pack contains no user serviceable components.

  • Page 105: Replacing The Battery Pack

    If the battery pack no longer holds a charge, contact your sales representative to order a new one. IMPORTANT: Replace the battery pack with original Snap-on replacement parts only. To replace the battery pack: 1. Loosen the two captive screws that retain the battery compartment cover on the back-side of the Diagnostic Tool.

  • Page 106: Disposing Of The Battery Pack

    Maintenance Battery Pack Service 8.2.3 Disposing of the Battery Pack Always dispose of the battery pack according to local regulations, which vary for different countries and regions. The battery pack, while non-hazardous waste, does contain recyclable materials. If shipping is required, ship the battery pack to a recycling facility in accordance with local, national, and international regulations.

  • Page 107: Chapter 9: Shopstream Connect

    The ShopStream Connect™ (SSC) software is PC-based software that extends the capabilities of your diagnostic tool. Using ShopStream Connect software with your diagnostic tool allows you to do the following (not all features listed in this section apply to Vantage Ultra): View, Print, and Manage data saved from your Diagnostic tool.

  • Page 108: Ssc Main Screen

    ShopStream Connect SSC Main Screen If the ShopStream Connect software does not open, open it from the Windows Start menu or use the ShopStream Connect shortcut icon on the Windows desktop (automatically created during installation). 9.2 SSC Main Screen The ShopStream Connect software will open automatically when you connect the diagnostic tool to your PC USB connection, Using SSC (Connecting to your PC)‚...

  • Page 109: Image Viewer

    ShopStream Connect Image Viewer 6— Main display—shows stored data files details. NOTE: The files listed are sortable (ascending/descending) by clicking on the column tab at the top (e.g. File Name, Type, etc.) Sort preferences are saved when the ShopStream Connect program is closed. 7—...

  • Page 110: Software Upgrades And Updates

    1. Select Tools > Update Software > (diagnostic tool type - e.g. ETHOS Edge, MODIS Edge, SOLUS Edge, etc.) from the Menu bar (Figure 9-4). The software checks the Snap-on web server for available updates. My Diagnostic Tool Figure 9-4 2. If service release updates are available, select Next to continue, then select Download and...

  • Page 111: End User License Agreement

    Use of Software is governed by the terms and conditions of the End User License Agreement. The diagnostic tool should not be initially operated until the End User License Agreement is read. Use of the device acknowledges your acceptance of the End User License Agreement. The Snap-on Incorporated Software End User License Agreement is available at: https://eula.snapon.com/...

  • Page 112: Chapter 10 Suretrack Community

    SureTrack Community Chapter 10 10.1 SureTrack - Online Community Your diagnostic tool includes access to the online SureTrack Community. You can use your PC to access the latest Real Fixes, Related Tips, and Common Repair Procedures information. SureTrack is an evolving database of "real-world" automotive repair knowledge based on expert knowledge and millions of actual repair orders.

  • Page 113: Finding Your Suretrack Authorization Code

    SureTrack - Online Community 10.1.3 Finding your SureTrack Authorization Code When you purchase a qualifying upgrade/plan, or platform from your Snap-on Representative, you will receive a SureTrack authorization code. The authorization code is printed on your sales receipt. Authorization codes are 12 digit alpha-numeric codes (e.g. 123ABCAP4-US).

  • Page 114: Creating A Suretrack Account

    SureTrack Community SureTrack - Online Community 10.1.4 Creating a SureTrack Account Use Requirements To use SureTrack you must: Create a SureTrack Account, see Creating an Account‚ on page 107. • Have a current SureTrack Authorization Code, see Finding your SureTrack Authorization •...
  • Page 115 SureTrack Community SureTrack - Online Community Enter all required information. Email Address* First Name* Last Name* Phone Number Address Line 2 City* State* Zipcode Username* Password* Retype Password* Cancel Create Figure 10-4 Success Congradulations! Your account has been created. This account can be used to contribute to the community and manage your profile.
  • Page 116 SureTrack Community SureTrack - Online Community Choose 3 security questions. Select three security questions below. These questions will help us verify your identity should you forget your password. Question 1: Choose a question... Question 2: Choose a question... Question 3: Choose a question...
  • Page 117 SureTrack Community SureTrack - Online Community Enter all required Enter the SureTrack information Authorization Code (scroll down) Technician Profile Manager User Profile Activation Mode Expert Subscriptions Authorization Key Account Expiration Date Communication Personal Profile Cancel First Name Rank: New Member Click “Save”...

  • Page 118: Logging In (Active Account)

    SureTrack Community SureTrack - Online Community 10.1.5 Logging In (active account) If you have previously created a SureTrack account, and have a valid username and password, select LOGIN (Figure 10-11) from the ShopKey Pro start page, and then complete the login process (Figure 10-12).

  • Page 119: Logging In With New Authorization Code (Active Account)

    SureTrack Community SureTrack - Online Community 10.1.6 Logging In with New Authorization Code (active account) Use the following instructions, if you have purchased a qualifying upgrade/plan and your SureTrack account is active (has not expired). To find your new authorization code, see Finding your SureTrack Authorization Code‚...

  • Page 120: Logging In With New Authorization Code (Expired Account)

    SureTrack Community SureTrack - Online Community 7. Exit the Profile Manager by selecting your username (near the top right) and select Logout. 8. When the login screen displays, login using your current username and password. 9. Confirm the new expiration date by logging back into Profile Manger to check it. 10.1.7 Logging In with New Authorization Code (expired account) Use the following instructions, if your SureTrack account has expired, and you have purchased a...
  • Page 121 SureTrack Community SureTrack - Online Community Figure 10-16 4. Scroll to the topic “Where do I apply my new Authorization Key from Snap-on?” 5. Select the link “click here to log into the profile manager login window directly”. URL - https://profilemanager.mitchell1.com/technicianprofile/index –...

  • Page 122: Suretrack Features

    SureTrack Community SureTrack - Online Community 10.1.8 SureTrack Features SureTrack is an integrated part of ShopKey Pro, and includes two navigation modules providing search and forum capabilities: 1Search™ Limited • Sure Track Community. • 1Search™ Limited The 1Search Limited module includes the following information features: Real Fixes and Tips - real-world fixes and repair tips captured from actual repair orders and •...

  • Page 123: Suretrack Screens

    SureTrack Community SureTrack - Online Community 10.1.9 SureTrack Screens SureTrack Home Page (within ShopKey Pro) The SureTrack Home page within ShopKey Pro includes: Username Figure 10-18 1. Change Vehicle* - dropdown menu provides options to change the active vehicle 2. Active Vehicle* - displays active vehicle 3.
  • Page 124 SureTrack Community SureTrack - Online Community 1Search Limited Top 10 Results Page Selecting 1Search Limited displays a Top 10 results page which includes: Figure 10-19 Search Bar - use the search bar to enter a code, component or symptom to search. For best •...
  • Page 125 SureTrack Community SureTrack - Online Community Results Index Page The Results Index page includes: OEM Plus Results - provides results that best match the exact search criteria, ranked in • order with the closest match at the top. SureTrack Results - provides probable components related to the search criteria, ranked in •...
  • Page 126 SureTrack Community SureTrack - Online Community SureTrack Results Page Selecting an item from the Results Index page displays applicable repair information on the SureTrack results page. Figure 10-21 Information may include: Real Fixes and Tips - real-world fixes and repair tips captured from actual repair orders and •...
  • Page 127 SureTrack Community SureTrack - Online Community ProView Results Page Selecting the ProView tab from the SureTrack results page opens ProView. ProView provides graphical displays showing the direct relationship between a code or symptom to the component used to fix them. Figure 10-22 Information may include: Radial Graph - showing the relationship of the code or symptom to possible at fault...

Table of Contents
