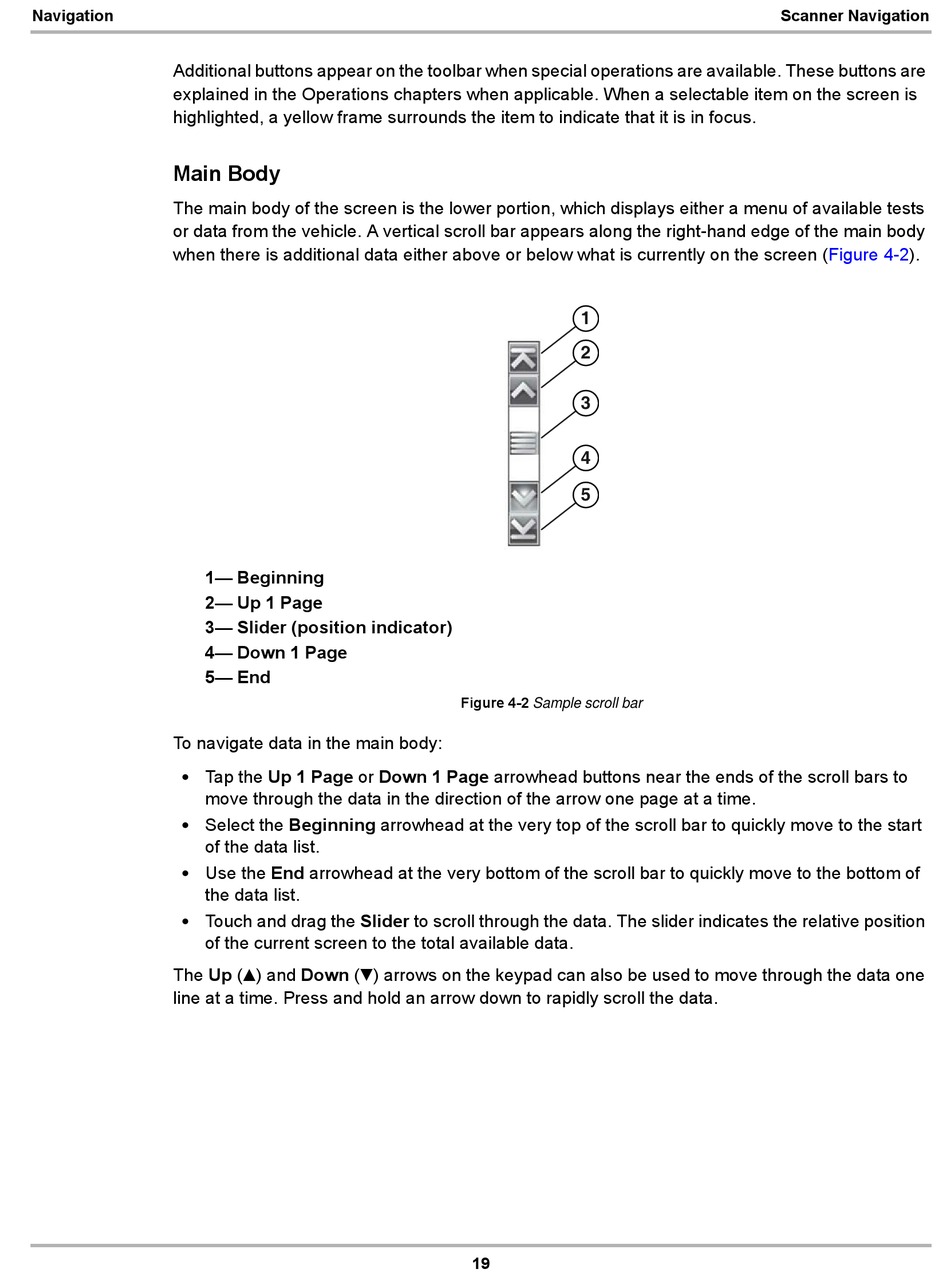

Snap-On Modis Ultra User Manual page 28

Navigation
Additional buttons appear on the toolbar when special operations are available. These buttons are
explained in the Operations chapters when applicable. When a selectable item on the screen is
highlighted, a yellow frame surrounds the item to indicate that it is in focus.
Main Body
The main body of the screen is the lower portion, which displays either a menu of available tests
or data from the vehicle. A vertical scroll bar appears along the right-hand edge of the main body
when there is additional data either above or below what is currently on the screen
1— Beginning
2— Up 1 Page
3— Slider (position indicator)
4— Down 1 Page
5— End
To navigate data in the main body:
Tap the Up 1 Page or Down 1 Page arrowhead buttons near the ends of the scroll bars to
•
move through the data in the direction of the arrow one page at a time.
Select the Beginning arrowhead at the very top of the scroll bar to quickly move to the start
•
of the data list.
Use the End arrowhead at the very bottom of the scroll bar to quickly move to the bottom of
•
the data list.
Touch and drag the Slider to scroll through the data. The slider indicates the relative position
•
of the current screen to the total available data.
The Up (b) and Down (d) arrows on the keypad can also be used to move through the data one
line at a time. Press and hold an arrow down to rapidly scroll the data.
Figure 4-2 Sample scroll bar
19
Scanner Navigation
(Figure 4-2).
