6— Main display—shows stored data files details. NOTE: The files listed are sortable
7— Preview—displays a sample of the file if the selected file is a image file.

13.3 Scanner DataViewer

SSC allows you to view data files recorded with your diagnostic tool, on your PC. When a Scanner
data file is selected, it opens and displays in the Scanner DataViewer
DataViewer allows you play the data file and custom configure the data in a number of ways.
8
1— Menu bar
2— Display toolbar
3— Graph display
4— Properties icon
5— Vertical Scroll bar
(ascending/descending) by clicking on the column tab at the top (e.g. File Name, Type,
etc.) Sort preferences are saved when the ShopStream Connect program is closed.
1
11
10
9
2
7
6— Zoom controls
7— Slider bar
8— Navigation toolbar
9— Parameter text list
10—Highlighted PIDs - indicates graphs
currently displayed
11—Parameter configuration tabs

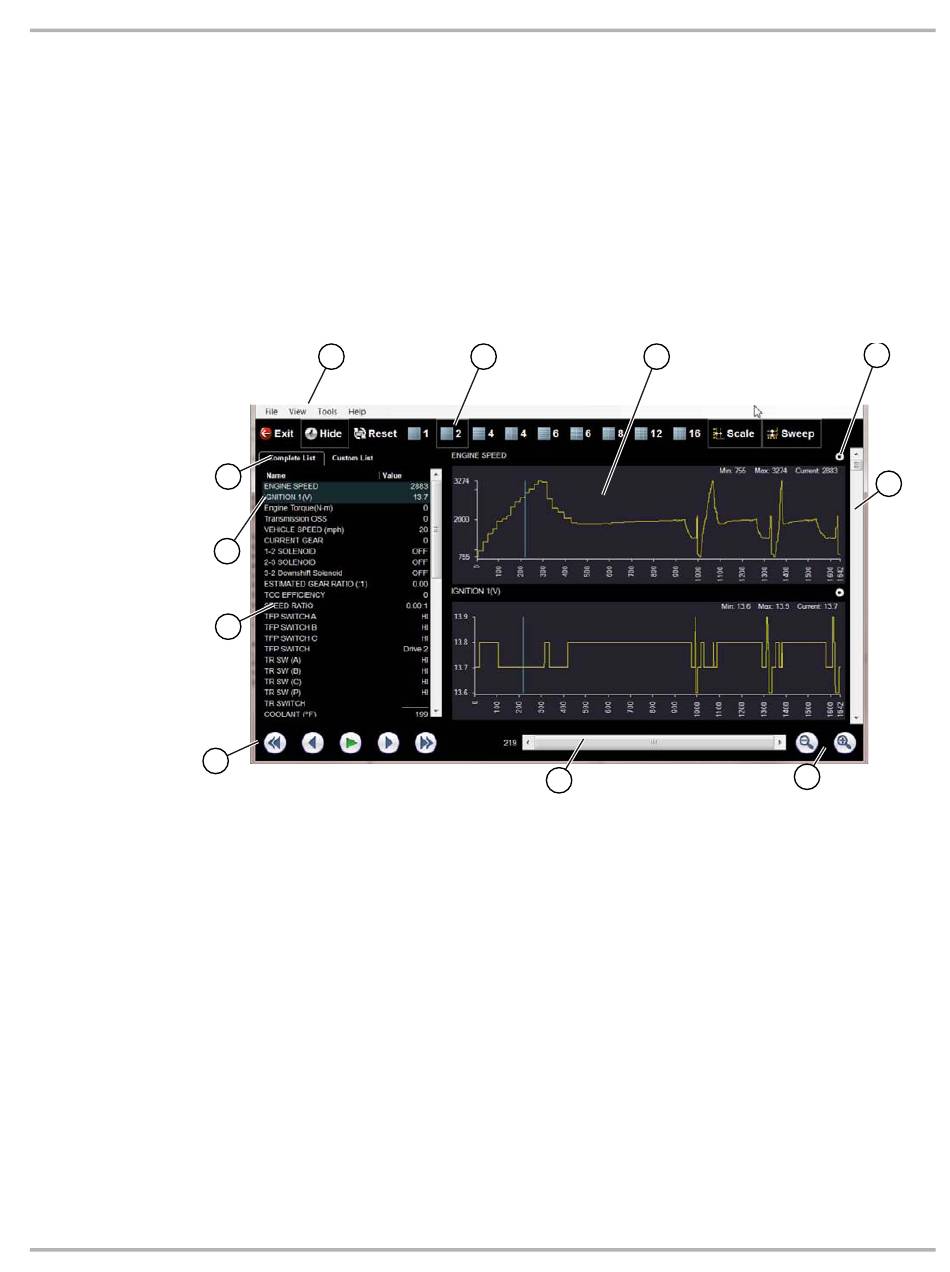

Figure 13-3
147
Scanner DataViewer
(Figure
13-3). Scanner
3
6
4
5
