5.3.1 Codes Menu

This selection may appear as Codes, Codes Menu, Codes Only, Codes (No Data), Service Codes
or something similar on the menu. Selecting opens a list of viewing options that includes:
Display Codes
•
Clear
•
Freeze Frame/Failure
•
Display Codes
This function opens either a list of diagnostic trouble codes (DTCs) stored in the selected vehicle
electronic control module (ECM), or a submenu of DTC viewing options. The code list includes the
DTC and a brief description
If SureTrack
troubleshooting information from SureTrack (e.g. Common Replaced Parts data
Real Fix and Related Fixes) will also be available. For additional information about using
SureTrack, see SureTrack‚ on page 45.

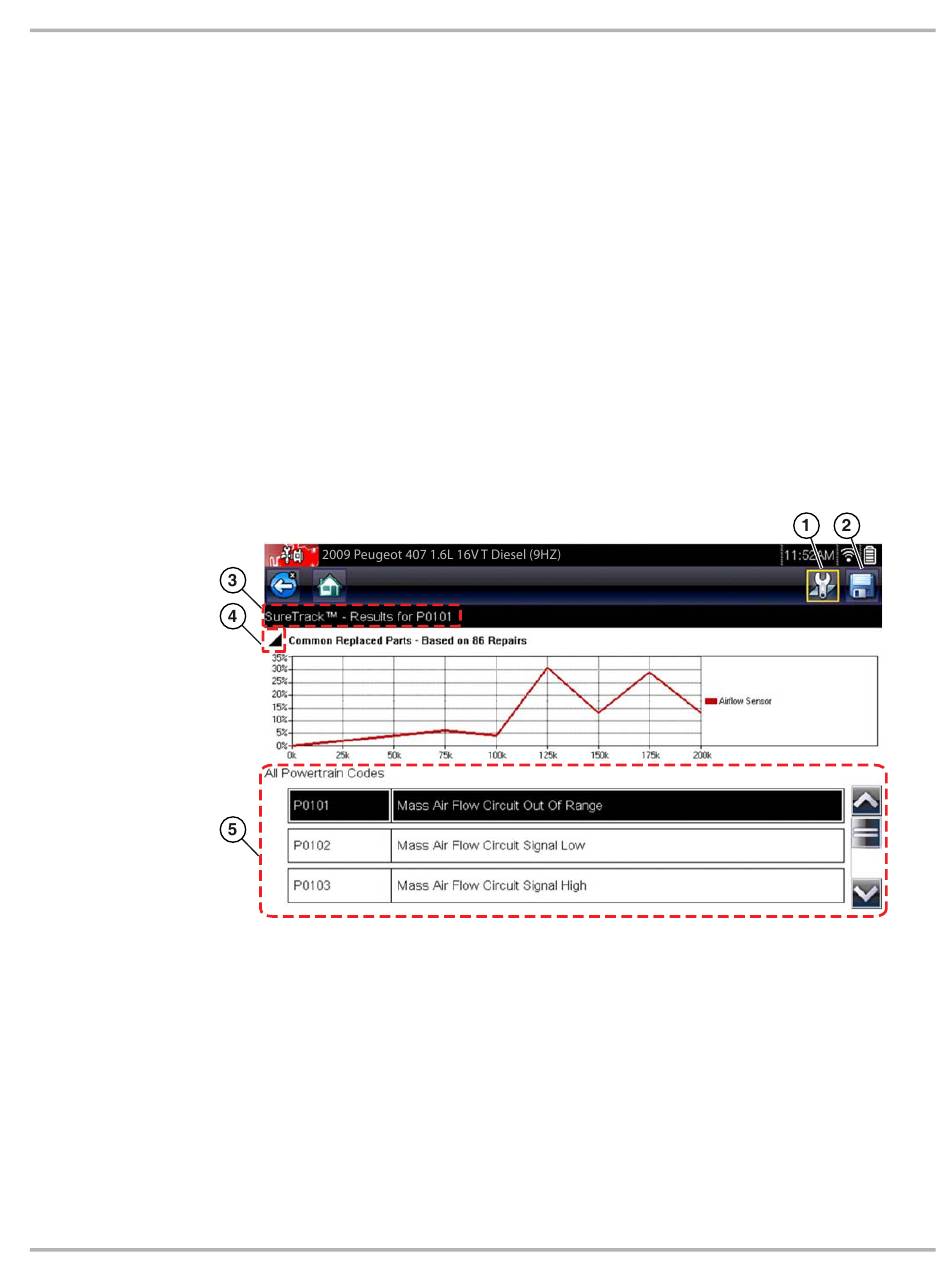

1— Fix It! Icon — opens SureTrack Dashboard
2— Save Icon — saves the displayed DTCs to an (.XML) file
3— SureTrack Status Bar — displays active SureTrack status or result
4— Common Replaced Parts Graph Icon — toggles graph display on/off
5— DTC Results List — displays current DTCs
Codes‚ on page 31
Records‚ on page 31
(Figure
®
(optional) is active and data is available for a selected DTC, additional
5-6).
Figure 5-6 DTC results
29
Operations
(Figure 5-6),
