Getting Started

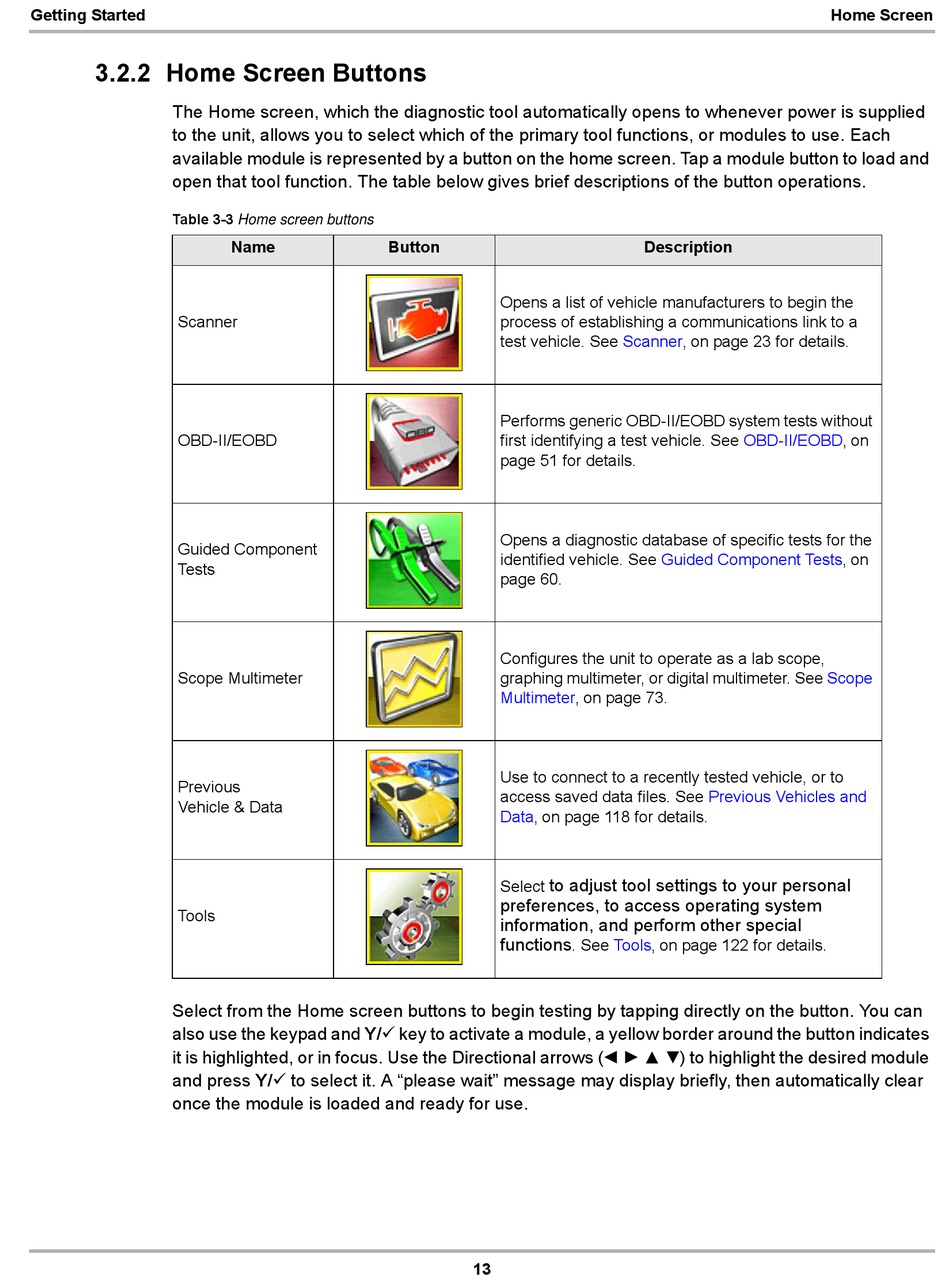

3.2.2 Home Screen Buttons

The Home screen, which the diagnostic tool automatically opens to whenever power is supplied
to the unit, allows you to select which of the primary tool functions, or modules to use. Each
available module is represented by a button on the home screen. Tap a module button to load and
open that tool function. The table below gives brief descriptions of the button operations.
Table 3-3 Home screen buttons
Scanner
OBD-II/EOBD
Guided Component
Tests
Scope Multimeter
Previous
Vehicle & Data
Tools
Select from the Home screen buttons to begin testing by tapping directly on the button. You can
also use the keypad and Y/a key to activate a module, a yellow border around the button indicates
it is highlighted, or in focus. Use the Directional arrows (e c b d) to highlight the desired module
and press Y/a to select it. A "please wait" message may display briefly, then automatically clear
once the module is loaded and ready for use.
Name Button Description
Opens a list of vehicle manufacturers to begin the
process of establishing a communications link to a
test vehicle. See Scanner‚ on page 23 for details.
Performs generic OBD-II/EOBD system tests without
first identifying a test vehicle. See OBD-II/EOBD‚ on
page 51 for details.
Opens a diagnostic database of specific tests for the
identified vehicle. See
page 60.
Configures the unit to operate as a lab scope,
graphing multimeter, or digital multimeter. See
Multimeter‚ on page 73.
Use to connect to a recently tested vehicle, or to
access saved data files. See
Data‚ on page 118 for details.
to adjust tool settings to your personal
Select
preferences, to access operating system
information, and perform other special
functions
. See Tools‚ on page 122 for details.
13
Home Screen
Guided Component Tests‚ on
Scope
Previous Vehicles and
