Chapter 2
The MODIS Ultra is a multi-function tool that combines a scan tool with a two-channel lab scope,
graphing multimeter, and the exclusive Snap-on Guided Component Test database into a single
hand-held unit.
This chapter describes the construction of the diagnostic tool and addresses the use of the basic
hardware controls and features in the following sections:

Functional Description

•
Technical
•
Control
•
Power
•
The
•
2.1 Functional Description
1— N/X key (No, Cancel, or Return)
2— Y/a key (Yes, Accept, or Continue)
3— Directional key; left (e), right (c), up (b), down (d)
4— Shortcut key
5— Power key
Introduction
Specifications‚ on page 7
Keys‚ on page 8
Sources‚ on page 9
Stand‚ on page 10

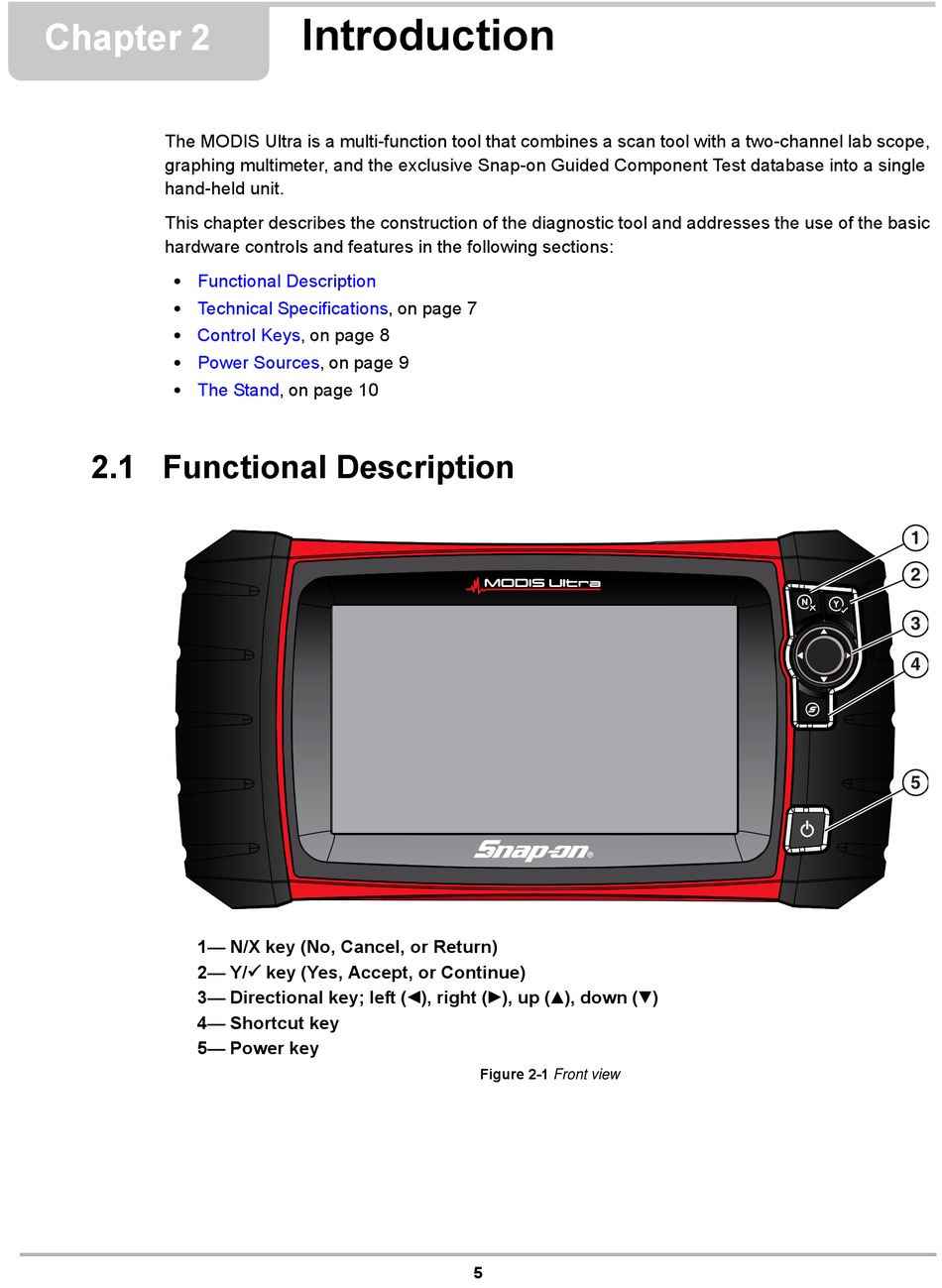

Figure 2-1 Front view
5
