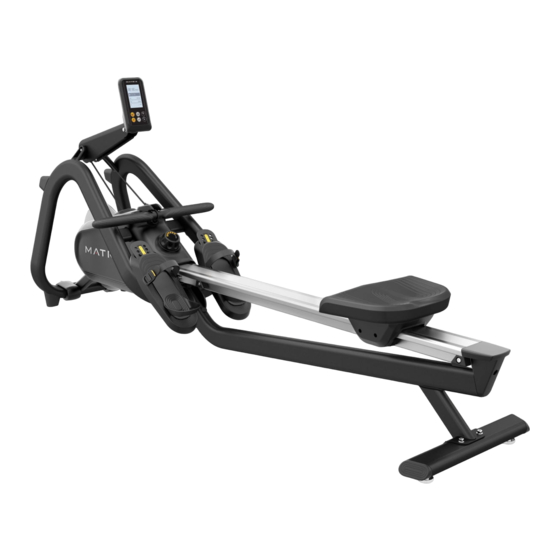

Matrix Rower-02 Service Manual

Hide thumbs Also See for Rower-02:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
R o w e R - 0 2 ( A R 1 1 )
S e R V I C e M A N U A l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rower-02 and is the answer not in the manual?

Questions and answers

Rob Gordon
March 1, 2025

What battery do I replace it with for my rower o2 matrix

0
Daniel
February 17, 2025

Need to buy replacement battery

0

Related Manuals for Matrix Rower-02

Summary of Contents for Matrix Rower-02

  • Page 1 R o w e R - 0 2 ( A R 1 1 ) S e R V I C e M A N U A l...

  • Page 2: Table Of Contents

    Tension Control Replacement ..................20 Spiral Spring Set Replacement ................... 23 Belt Pulley Set Replacement ..................24 Fly Wheel Set Replacement ..................26 CHAPTeR 10: RoweR-02 SPeCIfICATIoNS AND ASSeMbly gUIDe 10.1 Rower-02 Specifications ..................... 28 10.2 Fasteners and Assembly Tools ................... 28 10.3...

  • Page 3: Chapter 1: Serial Number Location

    CHAPTeR 1: SeRIAl NUMbeR loCATIoN 1.1 SeRIAl NUMbeR loCATIoN...

  • Page 4: Chapter 2: Important Safety Instructions

    Matrix Fitness or authorized dealers. Never operate the Rower if it is not working properly, or if it has been damaged or immersed in water. Return it to Matrix Fitness or authorized dealers for examination and repair.

  • Page 5: Before Getting Started

    2.3 befoRe geTTINg STARTeD geTTINg STARTeD Read the Owner’s Manual before setting up the Matrix Rower. Place the unit where it will be used before beginning the setup procedure. CHooSINg A loCATIoN The site should be well-lit and well-ventilated. Place the Rower on a structurally solid flat surface and kept a few feet from the wall or any equipment.

  • Page 6: Chapter 3: Preventative Maintenance

    Equipment needs to be inspected at regular intervals. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. MATRIX dealers will provide service and maintenance training at our corporate facility upon request.

  • Page 7: Chapter 4: Console Overlay And Workout Description

    CHAPTeR 4: CoNSole oVeRlAy AND woRKoUT DeSCRIPTIoN 4.1 CoNSole DeSCRIPTIoN Menu & back button Quick Distance button Up button Quick Timer button Down button enter...

  • Page 8: Chapter 5: Manager Mode

    CHAPTeR 5: MANAgeR MoDe 5.1 USINg MANAgeR MoDe The Manager's Custom Mode allows the club owner to customize the Rower for the club. 1) To enter Special Mode, please hold the "Up & Down" on the function keypad. Manager Mode will appear on the display (Figure A). 2) To scroll through the list of options in Manager Mode, use the button UP and DOWN keys.

  • Page 9: Manager Mode Overview

    CHAPTeR 5: MANAgeR MoDe 5.2 MANAgeR MoDe oVeRVIew group Item1 Item2 Default Value Values/Range Unit Notes Maximum Time 4~99 Minutes Default Time 20 Second ~ MAX Minutes After x seconds (see black- Workouts 0:30/1:00/2:00 Pause Time 2:00 Minutes : Second light), the console should /3:00/4:00/5:00 turn off the backlight.

  • Page 10: Chapter 6: Engineering Mode

    CHAPTeR 6: eNgINeeRINg MoDe 6.1 eNgINeeRINg MoDe oVeRVIew group Item1 Item2 Default Value Values/Range Unit Notes Calibrate Calibrate Error Codes Disable/Enable Disable Disable/Enable Watt Formula 1 Formula 1 Formula 1: without string watts, Formula 1 Formula 2: with string watts Formula Formula 2 Formula 2...

  • Page 11: Chapter 7: Service Mode/Test Mode

    CHAPTeR 7: SeRVICe MoDe/TeST MoDe 7.1 SeRVICe MoDe oVeRVIew group Item1 Item2 Default Value Values/Range Unit Notes Distance Current Value 0~999999 Mile/Km Accumulate Time Current Value 0~999999 Hour Export from USB Export the console default date to USB Configuration Import the console default date from Import from USB Factory Default Reset...

  • Page 12: Test Mode Overview

    CHAPTeR 7: SeRVICe MoDe/TeST MoDe 7.2 TeST MoDe oVeRVIew group Item1 Item2 Default Value Values/Range Unit Notes Line ; Black/ Display Manual Screen test White Line ; Black/ Keypad Auto Auto Screen test White Press any key to test – Generator Press menu 2x to exit Heart Rate...

  • Page 13: Chapter 8: Troubleshooting

    CHAPTeR 8: TRoUbleSHooTINg 8.1 eleCTRICAl DIAgRAMS RoweR-02 eleCTRICAl bloCK DIAgRAM...
  • Page 14 CHAPTeR 8: TRoUbleSHooTINg 8.1 eleCTRICAl DIAgRAMS - CoNTINUeD CoNSole PwR eXT wIRe PRoCeSS ReCeIVeR SeT geNeRAToR wIRe...

  • Page 15: Troubleshooting - Row For Charging

    CHAPTeR 8: TRoUbleSHooTINg 8.2 TRoUbleSHooTINg - Row foR CHARgINg Row for Charging 1) SyMPToM: Press any key on console, when the display shows "Row for charging", it means Battery Voltage is low, under 3.3V (Figure A). 2) SolUTIoN: 1) Please row the machine to charge the console battery for 30 minutes. 2) Replace the battery (Figure B).

  • Page 16: Troubleshooting - Console No Power

    CHAPTeR 8: TRoUbleSHooTINg 8.3 TRoUbleSHooTINg - CoNSole No PoweR Console No Power 1) SyMPToM: Console doesn’t light after pulling the handlebar. 2) SolUTIoN: 1) Pull the handlebar and check if there’s DC Voltage output from the PWR EXT Wire pin 2 (+12v) & pin 3 (GND) - Figure A. 1.1 Yes, console damage, replace console.

  • Page 17: Chapter 9: Parts Replacement Guide

    CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.1 ReCeIVeR SeT RePlACeMeNT 1) Upright the machine (Figure A). 2) Remove the 3 screws holding rail set to the frame (Figure B). fIgURe b fIgURe A 3) Remove the one screw holding end cover to the rail (Figure C). 4) Remove the 2 screws holding Receiver Set to the rail (Figure D).
  • Page 18 CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.1 ReCeIVeR SeT RePlACeMeNT - CoNTINUeD 5) Cut off the cable tie (Figure E). 6) Tie the wire on damaged Receiver Set (When you pull out Receiver Set, the wire will be inside the rail. It will be easier to replace new Receiver Set) - Figure F.

  • Page 19: Generator Replacement

    CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.2 geNeRAToR RePlACeMeNT 1) Remove the 3 screws holding right covert to the frame (Figure A). 2) Remove the 2 screws and wire holding generator to the frame (Figure B). fIgURe b fIgURe A 3) When replacing new generator, please make sure the belt is on the generator plastic wheel (Figure C). 4) The screw needs to be at the left side of the hole to make sure the belt is tight (Figure D).

  • Page 20: Ecb Replacement

    CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.3 eCb RePlACeMeNT 1) Remove the 3 screws holding right covert to the frame (Figure A). 2) Remove the 3 screws holding left covert to the frame (Figure B). fIgURe b fIgURe A 3) Remove the spring (Figure C). 4) Remove the 2 screws holding the ECB to the frame (Figure D).
  • Page 21 CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.3 eCb RePlACeMeNT - CoNTINUeD 7) Install the tension wire (Figure G). Note: Don't fix the tension wire to the frame at this time. 8) Install the spring (Figure H). fIgURe g fIgURe H 9) Insert φ8 rod through the hole of ECB to touch the flywheel (Figure I). 10) Adjust Tension level to the first paragraph (Figure J).

  • Page 22: Tension Control Replacement

    CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.4 TeNSIoN CoNTRol RePlACeMeNT 1) Refer to 9.3.1 and 9.3.2 to remove the covers. 2) Remove the spring (Figure A). 3) Turn the cover to left and it will be removed (Figure B). fIgURe A fIgURe b 4) Remove the 2 screws holding tension knob to the frame (Figure C).
  • Page 23 CHAPTeR 10: PARTS RePlACeMeNT gUIDe 9.4 TeNSIoN RePlACeMeNT - CoNTINUeD 6) Remove the 4 screws holding front frame cover to the frame (Figure E). 7) Cut off the 2 cable tie (Figure F). fIgURe f fIgURe e 8) Remove the tension wire (Figure G). 9) Remove the one screw holding tension wire to the frame (Figure H).
  • Page 24 CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.4 TeNSIoN RePlACeMeNT - CoNTINUeD 12) Install the spring (Figure K). 13) Insert φ8 rod through the hole of ECB to touch the flywheel (Figure L). fIgURe K fIgURe l 14) Adjust Tension level to the first paragraph (Figure M). 15) Adjust the tightness of the cable (Figure N).

  • Page 25: Spiral Spring Set Replacement

    CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.5 SPIRAl SPRINg SeT RePlACeMeNT 1) Refer to 9.3.1 and 9.3.2 to remove the covers. 2) Remove the 3 screws holding Left/Right spiral spring to the frame (Figure A). Note: Be careful when these 3 screws are released. The spiral spring will rotate.

  • Page 26: Belt Pulley Set Replacement

    CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.6 belT PUlley SeT RePlACeMeNT 1) Remove the Left/Right spiral spring as outlined in Section 9.5. 2) Remove the belt (Figure A). Note: This is a flexonic belt. Remove the flexonic belt by walking it off the side of the pulley. 3) Remove the grip (Figure B).
  • Page 27 CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.6 belT PUlley SeT RePlACeMeNT - CoNTINUeD 6) When the belt pulley set is fixed, put the belt installation tool on the pulley, turn the pulley until the belt is installed (Figure E). Note: 6-1 The belt installation tool part number: 0000093786. 6-2 If there’s no belt installation tool, please use 3 pcs cable tie to fix the pulley and belt (Figure F).

  • Page 28: Fly Wheel Set Replacement

    CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.7 fly wHeel SeT RePlACeMeNT 1) Remove the ECB set as outlined in Section 9.3. 2) Remove the 2 screws holding tension wire plate to the frame (Figure A). 3) Remove the 2 screws holding generator plate to the frame (Figure B). fIgURe b fIgURe A 4) Remover the belt and 2 nuts holding fly wheel set to the frame (Figure C).
  • Page 29 CHAPTeR 9: PARTS RePlACeMeNT gUIDe 9.7 fly wHeel SeT RePlACeMeNT - CoNTINUeD 6) Tighten the fly wheel screws to 400kgf-cm (Figure E). fIgURe e 7) When the belt pulley set is fixed, put the belt installation tool on the pulley, turn the pulley until the belt is installed (Figure F & G). Note: Please refer to 9.6 for installation steps.

  • Page 30: Chapter 10: Rower-02 Specifications And Assembly Guide

    4MM L-Shaped Allen Wrench Phillips Screwdriver 5MM L-Shaped Allen Wrench 13MM Open-End Wrench 6MM L-Shaped Allen Wrench 14MM Open-End Wrench 8MM L-Shaped Allen Wrench 17MM Open-End Wrench If any items are missing please contact your country’s local MATRIX dealer for assistance.

  • Page 31: Assembly Instructions

    CHAPTeR 10: RoweR-02 SPeCIfICATIoNS AND ASSeMbly gUIDe 10.3 ASSeMbly INSTRUCTIoNS STeP 1 STeP 2 Pre-installed Hardware Orange Hardware Pack Description Description Flat Washer Flat Washer Bolt Stopper Left Arc Washer Stopper Right Bushing Note: Bolt Tighten hardware from step 1...
  • Page 32 CHAPTeR 10: RoweR-02 SPeCIfICATIoNS AND ASSeMbly gUIDe 10.3 ASSeMbly INSTRUCTIoNS - CoNTINUeD STeP 3 STeP 4 White Hardware Pack Description Bolt Note: Tighten hardware from step 3 using the Torque Value: 24.5 Nm / 18 ft-lb...
  • Page 33 CHAPTeR 10: RoweR-02 SPeCIfICATIoNS AND ASSeMbly gUIDe 10.3 ASSeMbly INSTRUCTIoNS - CoNTINUeD STeP 6 STeP 5 Red Hardware Pack Black Hardware Pack Description Description Bolt N Bolt Flat Washer Arc Washer ASSeMbly Note: CoMPleTe! Tighten hardware from step 5 using the Torque Value: 39.2 Nm / 29 ft-lb...

  • Page 34: Chapter 11: Software Upgrade Guide

    11.1 SofTwARe UPgRADe INSTRUCTIoNS 1. Create a file on the USB flash drive which will be used. The folders should be MATRIX\FW\UCB (create a folder called MATRIX, then a folder in MATRIX called FW, then a folder in FW called UCB .
  • Page 35 NoTeS...
  • Page 36 MATRIX fITN eS S Sy S Te MS C o R P. 1610 LANDM ARK DR I VE C OTTA GE G R OV E WI 535 27 U S A TOLL FREE 866.693.4863 ww w.m atr i xfi tn es s . co m FA X 60 8.8 39 .1 717...
