OWNERS MANUAL

Versa Single-Station Strength

VS-S33 Lat Pulldown

Table of Contents

Need help?

Do you have a question about the VS-S33 Lat Pulldown and is the answer not in the manual?

Questions and answers

Summary of Contents for Matrix VS-S33 Lat Pulldown

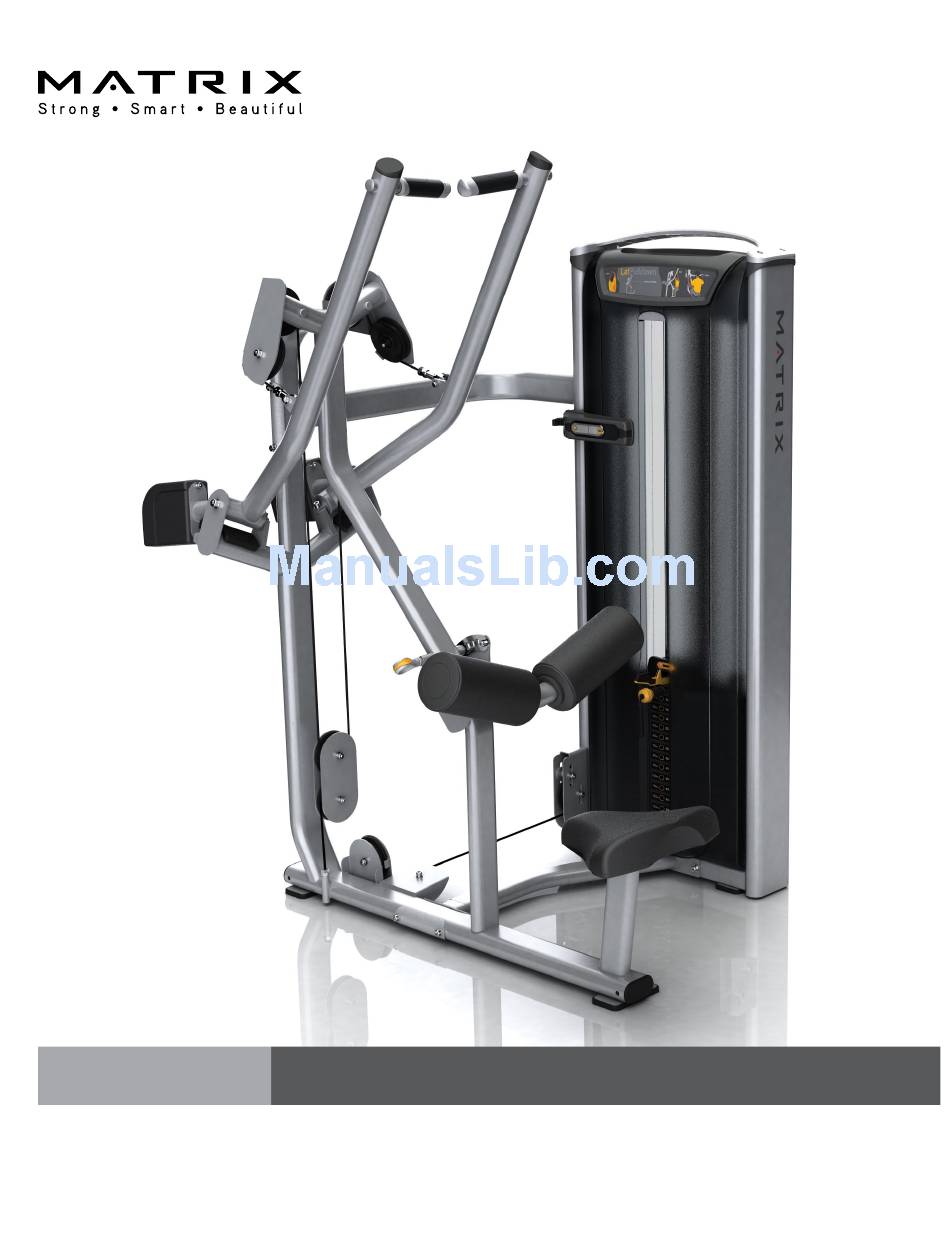

Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S33 Lat Pulldown...
Page 2: Table Of Contents
Table Of Contents Safety, General Care & Maintenence ..........3 Getting Started (Product Specifications) ..........5 Assembly Information ................6 Parts List ....................7 Markings ....................8 Installation & Assembly: Value Line Part 1 Weight Stack To User Frame Assembly ....... 10 Part 2 Thigh Pad Assembly ..............11 Part 3 Arm Assembly .................
Page 3: Safety, General Care & Maintenence
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervis- ing personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.
Page 5: Getting Started (Product Specifications)
GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 61”L X 48”W X 66”H Light Stack = 642 lbs (292 kg), Heavy Stack = 729 lbs (331 Weight Shipping weight 407 lbs (185 kg) WARRANTY (Valid in USA only) Frame (not coatings) 10 years...
Page 6: Assembly Information
UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.
Page 7 MARKINGS WARNING LABEL LOCATIONS...
Page 8: Parts List
Parts List DESCRIPTION User Frame Weight Stack Frame M10 X 105L SHC Narrow Cupped Flange M10 Flat Washer M10 Nylock Nut Upper Connecting Tube M10 X 20L SHC M10 X 125L SHC Wide Cupped Flange Lower Connecting Tube Thigh Pad Assembly Pullpin Assembly M8 X 150L SHC Axle...
Page 9 Parts List DESCRIPTION OPTIONAL PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook ASG Pull Grip Premium Pullpin...
Page 10: Installation & Assembly: Value Line Part 1 Weight Stack To User Frame Assembly
ASSEMBLY PART 1: WEIGHT STACK TO FRAME ASSEMBLY STEP 1 | WEIGHT STACK FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY User Frame Weight Stack Frame M10 X 105L SHC Narrow Cupped Flange M10 Flat Washer M10 Nylock Nut Upper Connecting Tube M10 X 20L SHC M10 X 125L SHC Wide Cupped Flange...
Page 11: Part 2 Thigh Pad Assembly
ASSEMBLY PART 2: THIGH PAD ASSEMBLY STEP 1 | THIGH PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Thigh Pad Assembly Pullpin Assembly M8 X 150L SHC Axle M8 Flat Washer M8 Nylock Nut Install the thigh pad and pullpin assemblies as shown. Tighten item 14 to 39 N-m/29 ft-lbs.
Page 12: Part 3 Arm Assembly
ASSEMBLY PART 3: ARM ASSEMBLY STEP 1 | RIGHT AND LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY 40mm Diameter Washer Belleville (Spring) Washer Right Arm Assembly M10 X 25L SHC Left Arm Assembly (Not Shown) M12 X 25L SHC M12 Flat Washer Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN.
Page 13: Part 4 Cable Assembly
ASSEMBLY PART 4: CABLE ASSEMBLY STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Weight Stack To User Frame Cable Cable Keeper must be positioned as shown...
Page 14 ASSEMBLY PART 4: CABLE ASSEMBLY STEP 2 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY User Frame Cable Cable tension is adjusted by raising or lowering pulley as shown in View A. Note: Nuts for adjustable pulley must be on inside towards weight plates.
Page 15 ASSEMBLY PART 4: CABLE ASSEMBLY STEP 3 | CABLE END ASSEMBLY INSTRUCTIONS & NOTES Torque all M10 Frame Hardware on pages 10 through 15 to: 77 N-m/57 ft/lbs.
Page 16: Part 5 Counter Weight Assembly
ASSEMBLY PART 5: COUNTER WEIGHT ASSEMBLY STEP 1 | COUNTER WEIGHT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 Flat Washer Counter Weight M8 X 20L SHC 16 28 Install the counter weights as shown. Tighten to 39 N-m/29 ft-lbs.
Page 17: Part 6 Pad Assembly
ASSEMBLY PART 6: PAD ASSEMBLY STEP 1 | PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L Hex Bolt Install the pad as shown. Tighten to 57 N-m/41 ft-lbs.
Page 18: Part 7 Plastics Assembly
ASSEMBLY PART 7: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown.
Page 19 ASSEMBLY PART 7: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs. Position top cap so that the instructional placard faces the user.
Page 20 ASSEMBLY PART 7: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.
Page 21: Part 8 Cable Adjustment
ASSEMBLY PART 8: CABLE ADJUSTMENT Cable tension is adjusted by raising or lowering pulley as shown. Note: Nuts for adjustable pulley must be on inside towards weight plates.
Page 22: Part 9 Premium Kit Assembly
ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing ASG Pull Grip Rep Counter Towel Hook Premium Pullpin I M PO RTA NT NOTI CE Title SAP Part Number Cost Wing 1000209571 $12.62 G7 ASG, Pull Grip 1000108698 $5.65 (pa Rep Counter...
Page 23: Weight Stack Frame
ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame.
Page 24 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below. Thread zip ties through holes to secure cables Route wires in groove...
Page 25 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using cau- tion not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
Page 26 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39N-m (29 ft-lbs.).
Page 27 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Grips & Pull Pin Remove the end caps using a 3 mm Allen wrench. 2. Cut off and discard the grips. 3. Remove inner collars with a 3 mm allen wrench.
Page 28 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Lat Pulldown Owners Guide Rev.1.2 Copyright © 2013 Matrix Fitness...
