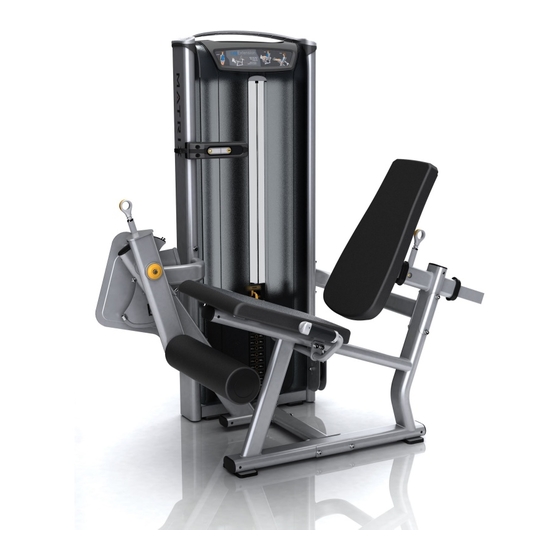

Versa single-station strength vs-s71 leg extension
Hide thumbs Also See for VS-S71:
Table of Contents

Advertisement

Quick Links

OWNERS MANUAL
Versa Single-Station Strength
VS-S71 Leg Extension

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-S71 and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix VS-S71

Summary of Contents for Matrix VS-S71

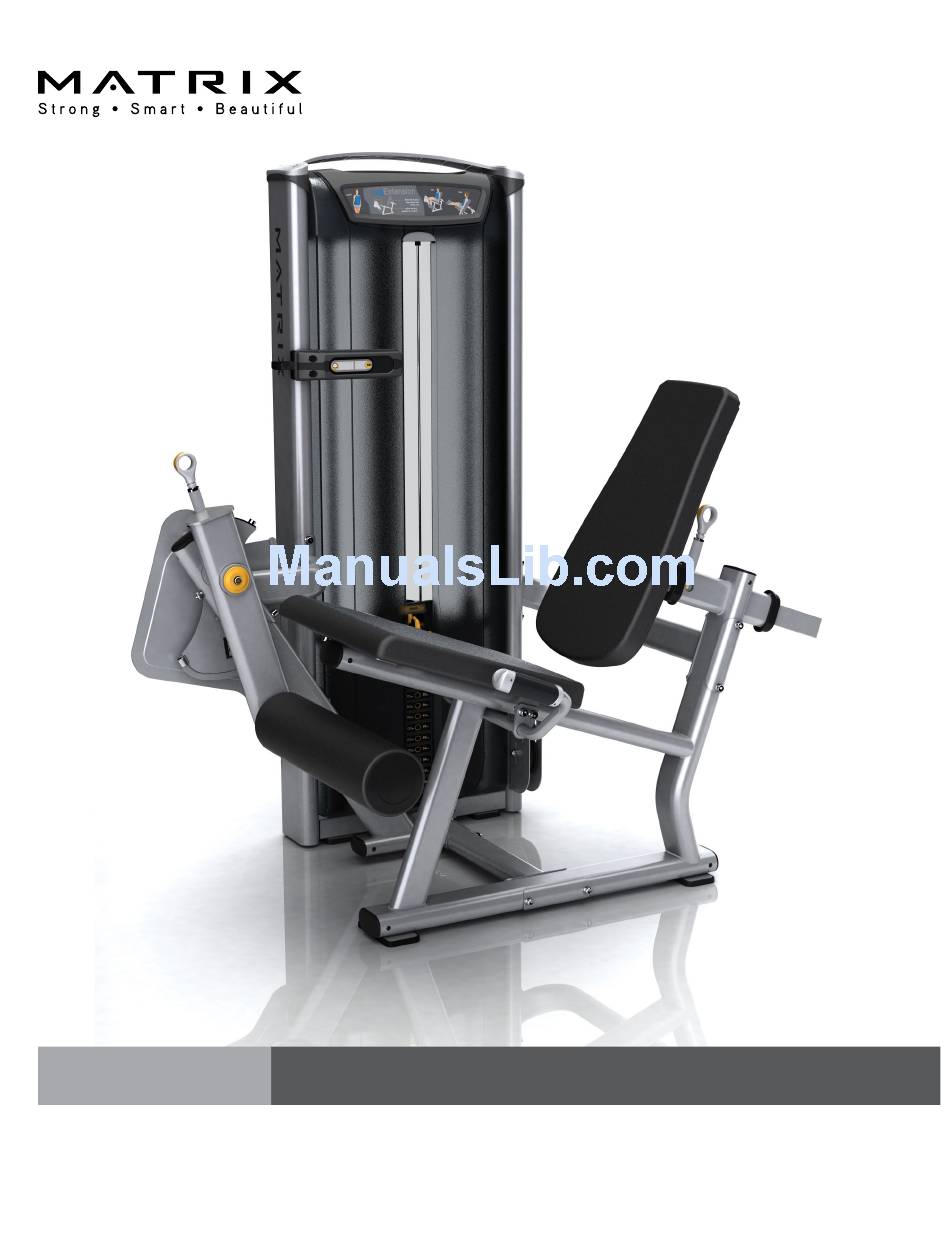

  • Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S71 Leg Extension...

  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ............ 3 Getting Started (Product Specifications) ..........5 Assembly Information ................6 Markings ....................7 Parts List ....................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ......10 Part 2 Exercise Arm Assembly ............15 Part 3 Cable Assembly ..............17 Part 4 Pad Assembly ...............

  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervis- ing personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of Califor- nia to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 59”L X 51”W X 66”H Light Stack = 556 lbs (253 kg), Heavy Stack = 606 lbs (275 Weight Shipping weight 347 lbs (157 kg) WARRANTY (Valid in USA only) Frame (not coatings) 10 years...

  • Page 6: Assembly Information

    UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...

  • Page 8: Parts List

    Parts List DESCRIPTION M10 X 125L Socket Head Cap Screw Wide Cupped Flange User Frame M10 Flat Washer M10 Nylock Nut Lower Connecting Tube M10 X 20L Socket Head Cap Screw Rear Connecting Tube Rear Stack Support M10 Flat Washer (Small Diameter) M8 X 20L Socket Head Cap Screw M8 Flat Washer CAM Support Tube...
  • Page 9 Parts List DESCRIPTION Top Cap Top Cap Cover OPTIONAL PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook Premium Pullpin ASG Pull Grip...

  • Page 10: Part 1 Weight Stack & User Frame Assembly

    ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC Wide Cupped Flange User Frame M10 Flat Washer M10 Nylock Nut Lower Connecting Tube M10 X 20L SHC Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 11 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 2 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC Wide Cupped Flange M10 Flat Washer M10 Nylock Nut M10 X 20L SHC Rear Connecting Tube Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 12 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 3 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC Rear Stack Support M10 Flat Washer (Small Diamter) M8 X 20L SHC M8 Flat Washer Install the user frame hardware as shown.
  • Page 13 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 4 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut CAM Support Tube M10 X 105 SHC Narrow Cupped Flange Install the user frame hardware as shown. Torque all M10 hardware from pages 10, 11 &...
  • Page 14 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 5 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut M10 X 20L SHC M10 X 120L SHC Upper Connecting Tube Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .

  • Page 15: Part 2 Exercise Arm Assembly

    ASSEMBLY PART 2: EXERCISE ARM ASSEMBLY STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC Exercise Arm Ø M10 Washer ( 42 mm OD) Orange Pivot Indicator Install hardware as shown. Torque item 7 to: 77 N-m/57 ft-lbs.
  • Page 16 ASSEMBLY PART 3: EXERCISE ARM ASSEMBLY STEP 2 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut M10 X 100L SHC Axle Ankle Pad and Weldment Install hardware as shown. Tighten to: 77 N-m/57 ft-lbs.

  • Page 17: Part 3 Cable Assembly

    ASSEMBLY PART 3: CABLE ASSEMBLY STEP 1 | CABLE ASSEMBLY INSTRUCTIONS & NOTES VIEW A Cable tension is adjusted by raising or lowering pulley as shown in View A. Note: Nuts for adjustable pulley must be on inside towards weight plates.

  • Page 18: Part 4 Pad Assembly

    ASSEMBLY PART 4: PAD ASSEMBLY STEP 1 | HANDLEBAR ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut Handlebar Assembly M10 X 30L SHC Install handlebars as shown. Tighten to 77 N-m/57 ft-lbs.
  • Page 19 ASSEMBLY PART 4: PAD ASSEMBLY STEP 2 | PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 25L SHC Thigh Pad Install the pad as shown. Tighten to 57 N-m/41 ft-lbs.
  • Page 20 ASSEMBLY PART 4: PAD ASSEMBLY STEP 3 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer Back Pad Back Pad Mounting Tube M10 X 75L SHC M10 X 80L SHC Back Pad Adjustment Tube 1. Assemble Back Pad to Mount- ing Tube, Torque hardware to 57 N-m/41 ft-lbs.
  • Page 21 ASSEMBLY PART 4: PAD ASSEMBLY STEP 4 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES 3. Remove Limit Pin. 4. Raise Pull Pin to assemble entire Back Pad assembly. 5. Re-assemble Limit Pin.

  • Page 22: Part 5 Plastics Assembly

    ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown.

  • Page 23: M8 Flat Washer

    ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs. Position top cap so that the instructional placard faces the user.
  • Page 24 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.

  • Page 25: Part 6 Premium Kit

    ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY OPTIONAL PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook Premium Pullpin ASG Pull Grip I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the Rep Counter.

  • Page 26: Rear Shroud

    ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame.
  • Page 27 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per ma- chine chart shown below. Thread zip ties through holes to secure cables Route wires in groove...
  • Page 28 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using caution not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
  • Page 29 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39N-m (29 ft-lbs.).
  • Page 30 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Pull Pin Remove the two pull pins using an adjustable wrench, and replace with the Premium pull pins making sure that the pull pin lengths are correct for each application. (4P).
  • Page 31 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES ASG Grips 1,2,3 Remove the end caps using a 3 mm Allen wrench. 2. Cut off and discard the grips. 3. Remove inner collars with a 3 mm allen wrench. 4.
  • Page 32 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Leg Extension Owners Guide Rev.1.2 Copyright © 2013 Matrix Fitness...
