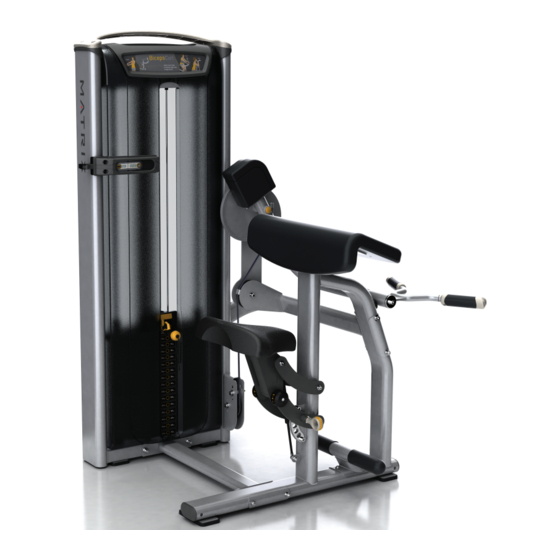

  • Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S40 Bicep Curl G1_OM_Bicep Curl Rev.1.1.indd 1 11/19/13 4:20 PM...

  • Page 2: Table Of Contents

    Table Of Contents IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.

  • Page 3: Getting Started (Product Specifications)

    IMPORTANT SAFETY INSTRUCTIONS GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST WARNING: This product contains chemicals known to the State of EXERCISE PLACARD California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment.

  • Page 4: Markings

    UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 5: Parts List

    Parts List Parts List DESCRIPTION DESCRIPTION M10 X 125L Socket Head Cap Screw OPTIONAL PREMIUM KIT COMPONENTS M10 Flat Washer Wing Wide Cupped Flange Rep Counter User Frame Towel Hook M10 Nylock Nut ASG Pull Grip Lower Connecting Tube Premium Pullpin M10 X 20L Socket Head Cap Screw OPTIONAL SHORT USER KIT Weight Stack...
  • Page 6 ASSEMBLY ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES STEP 2 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY DESCRIPTION...

  • Page 7: Part 2 Arm Assembly

    ASSEMBLY ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY PART 2: ARM ASSEMBLY STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES STEP 3 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M10 X 20L SHC CAM/Arm Assembly Rear Stack Support Wave (Spring) Washer...

  • Page 8: Part 3 Cable Assembly

    ASSEMBLY ASSEMBLY PART 3: CABLE ASSEMBLY PART 4: HANDLEBAR ASSEMBLY STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES STEP 1 | HANDLEBAR ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC Cable tension is adjusted by raising or lowering pulley as shown. Note: Nuts for adjustable pulley must be on inside towards weight plates.

  • Page 9: Part 5 Counter Weight Assembly

    ASSEMBLY ASSEMBLY PART 5: COUNTER WEIGHT ASSEMBLY PART 6: PAD ASSEMBLY STEP 1 | COUNTER WEIGHT ASSEMBLY INSTRUCTIONS & NOTES STEP 1 | PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY DESCRIPTION QUANTITY Bottom Pad M8 X 20L SHC M10 X 20L Hex Bolt M8 Flat Washer Counter Weight Install the pad as shown.

  • Page 10: Part 7 Plastics Assembly

    ASSEMBLY ASSEMBLY PART 6: PAD ASSEMBLY PART 7: PLASTICS ASSEMBLY STEP 2 | ARM CURL PAD ASSEMBLY INSTRUCTIONS & NOTES STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M10 Flat Washer Front Shroud M10 X 25L SHC Rear Shroud (Not shown) Arm Curl Pad Position hangers in their lowest position...

  • Page 11: M8 Flat Washer

    ASSEMBLY ASSEMBLY PART 7: PLASTICS ASSEMBLY PART 7: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M8 X 25L SHC Top Cap Cover M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown.

  • Page 12: Part 8 Premium Kit Assembly

    ASSEMBLY ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet DESCRIPTION QUANTITY Wing Rep Counter 1. Remove the (2) top cap covers using a flat blade screw driver.
  • Page 13 ASSEMBLY ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors Rep Counter 1. Assemble Rep Counter sensor base using (4) screws included with the kit.
  • Page 14 ASSEMBLY ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing ASG Grips Assemble the wing (1P) as shown using the M8 hardware provided with the kit.
  • Page 15 ASSEMBLY ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Seat Assist Shock Pull Pin Raise the seat to the highest position before adding gas shock (6P) Remove the pull pin using an adjustable wrench, and replace with the Premium pull pin (5P).

  • Page 16: M10 Flat Washer

    ASSEMBLY PART 9: FOOT REST ASSEMBLY STEP 1 | FOOT REST ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Foot Rest M10 X 25L SHC M10 Flat Washer Install the foot rest as shown. Tighten to 77 N-m/57 ft-lbs. G1_OM_Bicep Curl Rev.1.1.indd 30-31 11/19/13 4:20 PM...
  • Page 17 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Bicep Curl Owners Guide Rev.1.1 Copyright © 2013 Matrix Fitness G1_OM_Bicep Curl Rev.1.1.indd 32 11/19/13 4:20 PM...
