Switching the T-REX
and Handle
If you are switching your T-REX
to replace the power cord running through the handle since the new motor has a different style plug.
Does not apply to the T-REX™ Jr.
Step 1:
Remove back cover by unscrewing the 4 screws.
Step 2:
Remove front cover by unscrewing the 3 screws.

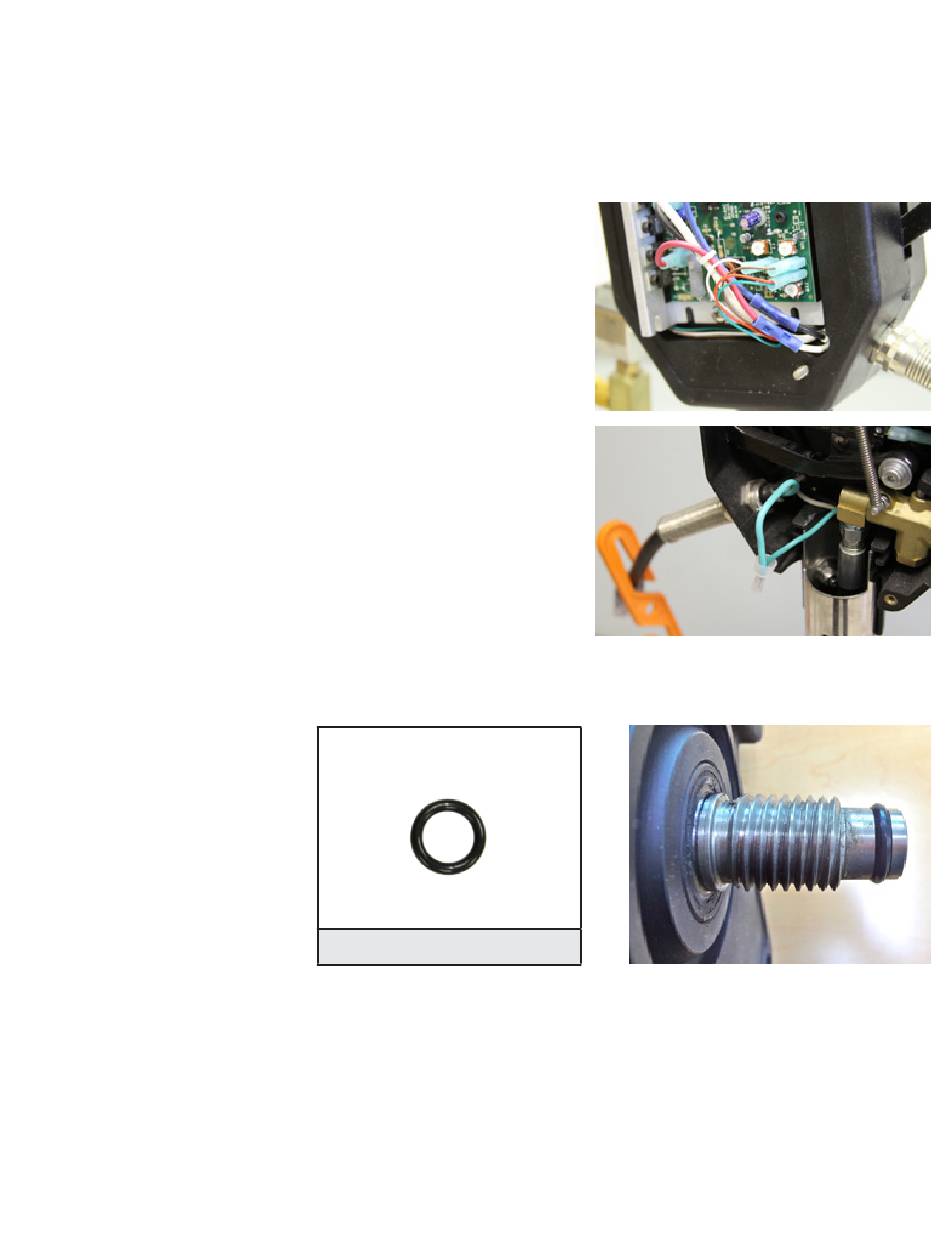

Step 3:
Clip off the black and white wires that are
connected to the blue and red wires on the front board
I).
(Figure
Step 4:
Clip the green ground wire on the back of the
J).
handle
(Figure
Step 5:
Pull the the old power cord out through the hole
at the bottom of the handle.
Step 6:
Snake the new power cord up the handle to the
swtich box.
Step 7:
Wire the new power cord to the same terminals
as the old power cord (black to blue, white to red, green
to green).
If O-Ring on the Bottom of the Transmission Shaft Goes Bad
Mytee carries a replace-
ment O-Ring (Part # G107).
It is available at
www.mytee.com.
Lubricating Felt Seal
Make sure to keep your felt seal (Part # G014) lubricated. To do this, saturate the felt seal thoroughly
with included Super Lube® (Part # PH648).
to New Style Power Cord Between Motor
™
to the new style motor with the black transmission, you will need
™
G107
O-Ring
I
J
TS-TREX-09/02/15 • PAGE # 5
