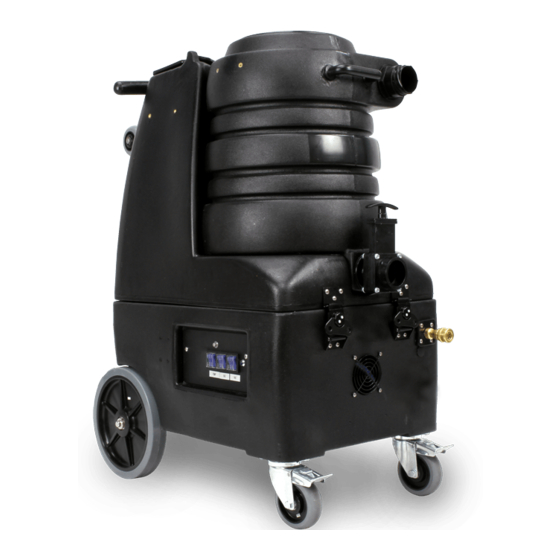

- Page 1 User Manual Breeze ™ BZ-102LX BZ-105LX REV: 2/20/24 BZ-102LXH BZ-105LX-AUTO BZ-102LX-AUTO 13655 Stowe Dr. Poway, CA 92064 P: (858) 679-1191 F: (858) 726-6005 www.mytee.com...
- Page 2 Congratulations on the purchase of your new Breeze™ Carpet Extractor. As technology continues to develop you can work confidently knowing that both Mytee and its employees are equally dedicated to developing with the industry and its advances. Like any other piece of machinery or technology, the Breeze™ also requires the proper maintenance and care to keep the product working over extended use.
-
Page 3: Table Of Contents
Table Of Contents Important Safety Information At a Glance 1.1 - Technical Specifications 1.2 - 220 PSI Unit Overview 1.3 - 500 PSI Unit Overview 1.4 - Switches Machine Operation 2.1 - Powering the Breeze™ 2.2 - Connecting Hoses 2.3 - Filling the Solution Tank 2.4 - Switching on the Breeze™... -
Page 4: Important Safety Information
When and if calling Mytee for support, please grounding plug. The plug must be plugged into an appro- have your Model and Serial Number available for faster priate outlet that is properly installed in accordance with assistance. - Page 5 Important Safety Information 18. The voltage and frequency indicated on the name ing: Read all instructions before using this machine. This product is intended for commercial use only. plate must correspond to the wall receptacle supply volt- age. To reduce the risk of fire, electrical shock, or injury: 19.
-
Page 6: At A Glance
1 - At a Glance 1.1 - Technical Specifications BZ-102LX BZ-102LXH BZ-102LX-AUTO Solution Tank 10 Gallons Solution Tank 10 Gallons Solution Tank 10 Gallons Recovery Tank Recovery Tank Recovery Tank 10 Gallons 10 Gallons 10 Gallons Vacuum Dual LX Vacuum Dual LX Vacuum Dual LX... -
Page 7: 500 Psi Unit Overview
1 - At a Glance 1.2 - 220 PSI Unit Overview BZ-102LX, BZ-102LXH, BZ-102LX-AUTO 1. Recovery tank lid 10. Lower lift handle 2. Solution tank lid 11. Solution line quick connect fitting 3. 10 gallon solution tank 12. Maintenance access brackets 4. - Page 8 1 - At a Glance 1.3 - 500 PSI Unit Overview BZ-105LX, BZ-105LX-AUTO 1. Recovery tank lid 11. Lower lift handle 2. Solution tank lid 12. Prime valve 3. 10 gallon solution tank 13. Solution line quick connect fitting 4. 10 gallon recovery tank 14.
-
Page 9: Switches
1 - At a Glance 1.4 - Switches BZ-102LX BZ-102LXH BZ-102LXH Variable Switch BZ-102LX-AUTO VAC 2 The BZ-102LXH unit features a 3-position switch to switch between Vacuum 2 or the 1,600 watt heater. HEATER BZ-105LX-AUTO BZ-105LX... -
Page 10: Machine Operation
2 - Machine Operation 2.1 - Powering the Breeze™ Connect power cords by lining up the female end of the cord with the male prongs in the socket on the machine. Twist clockwise to lock the cord in place. Each power cord on the Breeze™ requires a grounded 20 amp outlet. For dual cord machines, plug each cord into its own 20 amp circuit. -
Page 11: After Use
2 - Machine Operation drainable location. Activate the pump-out switch on the front of the machine and open the ball valve on the pump-out connection. The Breeze™ will automatically drain recovered water from the tank. 2.7 - After Use Emptying the recovery tank: Place a bucket or other appropriate receptacle under the recovery tank drain valve and pull up on the drain valve lever to drain dirty water. -
Page 12: Machine Maintenance
Check and clean this filter as well. 3.2 - System Maintainer Regular flushing of the solution system with Mytee System Maintainer keeps your extractor running efficiently by re- moving hard water scaling that builds up in the system. How to use System Maintainer: 1. -
Page 13: Available Accessories
4 - Available Accessories 8314SW Bentley™ Pro Speed Wand 8314T Bentley™ 14” Carpet Wand 8400GT Mytee Dry™ GT Upholstery Tool 8400P Air Lite™ 4” Upholstery Tool... -
Page 14: Troubleshooting
Circuit breaker tripped in building. Reset breaker in building. turning on. Faulty switch or power cord. Contact a Mytee Service Center. Unclog the jet by removing and soaking in a vin- Jet is clogged. egar and water solution. Scrub with a soft brush. - Page 15 NOTES...
- Page 16 Mytee, LLC 13655 Stowe Dr. Poway, CA 92064 www.mytee.com © 2024 Mytee, LLC Printed in the USA...
