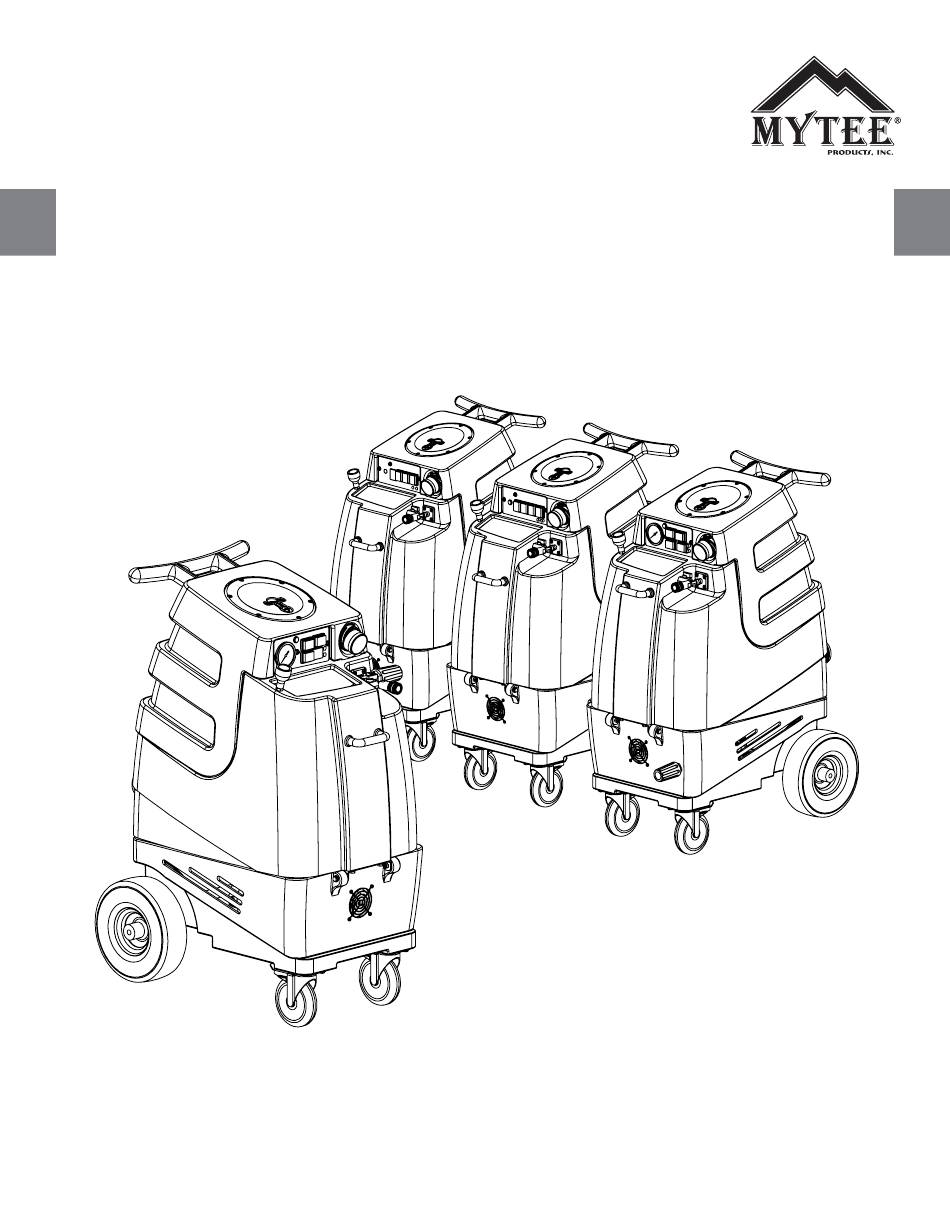

- Page 1 User Manual Speedster Model: 1000DX-200, 1001DX-200, ® 1003DX, 1005LX REV. 5/21/20 13655 Stowe Dr. Poway, CA 92064 P: (858) 679-1191 F: (858) 726-6005 www.mytee.com...
- Page 2 Neglecting your machine, abusing it or not operating it properly can void its warranty and prevent the machine from performing to the quality and standard you’d expect out of the Mytee Products line. If you have any warranty concerns or questions, please review this manual thoroughly or do not hesitate to contact your distributor.
-
Page 3: Table Of Contents
Table Of Contents Important Safety Information At A Glance 1.1 - Technical Specifications 1.2 - Included with the Speedsters® 1.3 - Speedster® Features 1.5 - Switch Plate Machine Operation 2.1 - Powering the Speedster® 2.2 - Connecting Vacuum & Solution Hoses 2.3 - Filling the Solution Tank 2.4 - Switching on the Speedster®... -
Page 4: Important Safety Information
When and if calling Mytee for support, please grounding plug. The plug must be plugged into an appro- have your Model and Serial Number available for faster priate outlet that is properly installed in accordance with assistance. - Page 5 Important Safety Information To reduce the risk of fire, electrical shock, or injury: 18. The voltage and frequency indicated on the name 1. Read all instructions before using equipment. plate must correspond to the wall receptacle supply voltage. 2. Use only as described in this manual. Use only manu- facturer’s recommended attachments.
-
Page 6: At A Glance
9 gallon capacity Solution Tank Solution Tank 10 gallon capacity 10 gallon capacity Vacuum Vacuum Dual Mytee® Hybrid Ametek motors, Dual 3-stage, 200 CFM, 130” water lift Motors Motors 225-250 CFM, 182” water lift Solution Pump Solution Pump 500 PSI max., 1.5 GPM 500 PSI max., 1.5 GPM... -
Page 7: Included With The Speedsters
1 - At A Glance 1.2 - Included with the Speedsters® H141V Cuff-Lynx™ (2” Female Cuff-Lynx™ x H110V Cuff-Lynx™ (2” Female Cuff-Lynx™ x 1.5” Female Hose) 2” Female Hose) H375 Hose Hanger H226 Drain Spout... -
Page 8: Speedster® Features
1 - At A Glance 1.4 - Speedster® Features 1003DX shown as example 1. Clear recovery tank lid 9. 10” foam-filled wheels 2. Switch plate 10. Solution hose quick connect with prime valve 3. Faucet fill hose 11. 9 gallon recovery tank 4. -
Page 9: Switch Plate
1 - At A Glance 1.5 - Switch Plate HEATER 1 ONLY HEATERS 1 & 2 1003DX shown as example 1. Pressure gauge (not installed on 1000DX-200 & 4. Pump switch. 1001DX-200). 5. Heater three-position switch (not installed on 2. Dual circuit indicator light (not installed on 1000DX-200, 1005DX, &... -
Page 10: Machine Operation
2 - Machine Operation 2.1 - Powering the Speedster® 2.3 - Filling the Solution Tank Each power cord on the Speedster® requires a grounded 20 amp outlet. For dual cord machines, plug each cord into its own 20 amp circuit. The dual circuit indicator light and tone will activate when this ♦... -
Page 11: The Prime Valve
2 - Machine Operation 2. Once pump is primed and there is pressure in the solution line, turn on heater switch and wait a few minutes for water to heat up. 3. Once water is heated, turn on vacuum and begin ♦... -
Page 12: Machine Maintenance
Clean machine with all-purpose cleaner and cloth. 3.4 - System Maintainer Check spray nozzles. Weekly flushing of the solution system with Mytee® Flush solution system with Mytee System Maintainer helps keep lines clean and prevents System Maintainer. chemical build-up, improving pump life, performance and Inspect vacuum hoses for holes pressure. -
Page 13: Available Accessories
Jet Wand Carpet Wand Pro Speed Wand 8400 - 4” Stainless 8700 - Stainless Steel 8400P - Air Lite™ 8400DX - Mytee Dry™ Steel Upholstery Tool Crevice Tool Upholstery Tool Upholstery Tool 8100 - 1.5” x 25’ Vacuum & 8101 - 2” x 25’ Vacuum &... -
Page 14: Troubleshooting
5 - Troubleshooting 5.1 - Vacuum Troubleshooting Vacuum blows water out the exhaust. Vacuum is not turning on. Possible Causes Solutions Possible Cause Solution Foam building up in the Use a defoaming solution recovery tank. in the recovery tank. Vacuum may not be Check the electrical con- getting power. - Page 15 Pump runs but there is no spray. check for leaks. Repair the leak. If there are no Possible Causes Solutions leaks, run Mytee’s System On a new unit, the check Remove the check valve Maintainer™ (Part # 3601) valve between the pump...
- Page 16 The pumps are usually Possible Causes Solutions rated for 140°F water. Loose electrical Check all electrical con- Heater has hard water Run Mytee System connection. nections, including power Maintainer™ (Part # 3601) buildup inside, leading to cord and harness. lost efficiency.
- Page 17 NOTES...
- Page 18 Mytee Products, Inc. 13655 Stowe Dr. Poway, CA 92064 www.mytee.com © 2020 Mytee Products, Inc. Printed in the USA...
