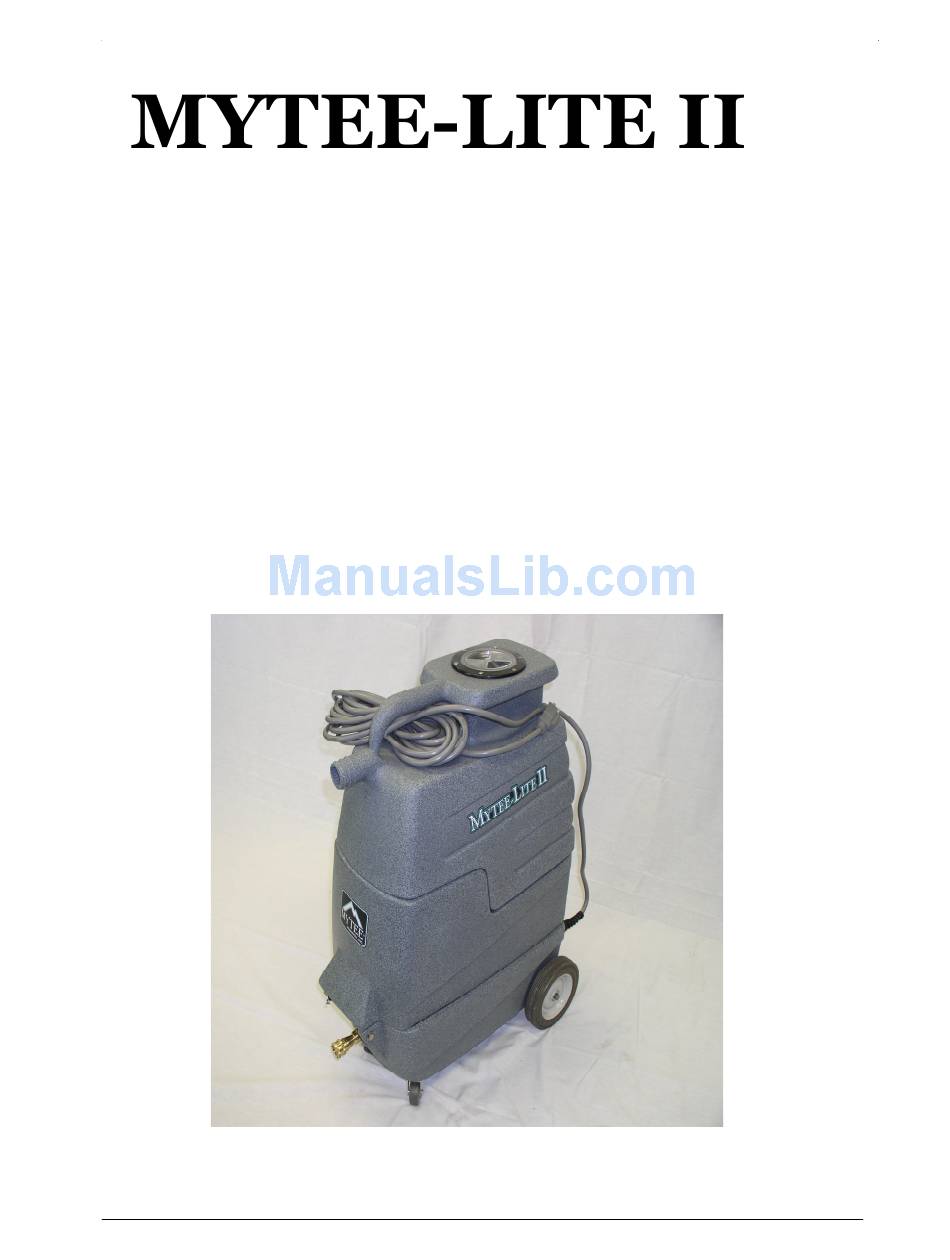

MYTEE-LITE II Extractor Model Numbers: 8020 cold water A8020 w/ upholstery tool 8070 w/ Heater A8070 w/ Heater & upholstery tool User and Parts Manual www.mytee.com... -
Page 2: Table Of Contents
MYTEE-LITE II This manual is furnished with each new model. It provides necessary operation and maintenance MACHINE DATA instructions and an illustrated parts list. Read this manual completely and understand the machine before operating or servicing it. Use the illustrated Parts List to order parts. Before... -
Page 3: Safety Precautions
MYTEE-LITE II SAFETY PRECAUTIONS Before leaving or servicing machine: -Turn off machine. -Unplug cord from wall outlet. This machine is intended for commercial use. It is When servicing machine: designed to clean carpet and upholstery in an indoor -Unplug cord from wall outlet. -
Page 4: Safety Labels
MYTEE-LITE II SAFETY LABELS The safety labels appear on the machine in the locations indicated. Replace labels if they become damaged or cannot be read. WARNING LABEL- Located on back. Label warns operator of safe practices of equipment – English text. -
Page 5: Machine Components
MYTEE-LITE II MACHINE COMPONENTS MACHINE SET UP 1. Carefully check carton for signs of damage. Report damage at once to freight carrier. The machine is shipped fully assembled and is ready for use. 2. Unlock latch connecting recovery tank and solution tank. - Page 6 MYTEE-LITE II 4. Carefully fill up solution tank. (Do not 6. Lock latch. spill fluid in to vacuum chamber) Vacuum chamber 7. Plug machine’s cord into a grounded wall outlet. ATTENTION: Do not use recovery tank to fill solution tank. Residual dirt or debris will cause damage to solution pump.
-
Page 7: Machine Operation
MYTEE-LITE II 9. Connect vacuum hose to recovery tank. D. Turn on vacuum power FOR SAFETY: Do not operate machine unless operator manual is read and understood. 4. Begin cleaning PRE-OPERATION Vacuum carpet and remove other debris. Perform MACHINE SETUP procedures. -
Page 8: Draining Recovery Tank
MYTEE-LITE II 4. When ball float shuts off vacuum, it is time to 3. Remove recovery tank from solution tank. empty the dirty water from the recovery tank, and refill solution tank. 5. After cleaning, relieve water pressure from tool before disconnecting hose. -
Page 9: Storing Machine
MYTEE-LITE II WEEKLY MAINTENANCE (EVERY 20 HOURS OF OPERATION) 1. Flush solution system with Mytee system maintainer to dissolve normal chemical buildup. Pour 7.5L (2 gal) of hot water 60°C (140°F) into solution tank. Add Mytee system maintainer according to mixing instructions... -
Page 10: Troubleshooting
MYTEE-LITE II TROUBLESHOOTING SYMPTOM: UNIT WILL NOT TURN ON: PROBLEM: Not plugged in. SOLUTION: Plug machine in proper outlet. PROBLEM: Circuit breaker has popped. SOLUTION: Reset circuit breaker. Make sure no other items are running on the same circuit as machine. - Page 11 MYTEE-LITE II PROBLEM: Heater wire has become disconnected. SOLUTION: Reconnect wire. PROBLEM: Switch on switch plate is bad. SOLUTION: Replace switch. PROBLEM: Heating element is bad. SOLUTION: Replace element. SYMPTOM: VACUUM MOTOR IS NOT WORKING PROPERLY: PROBLEM: Hose not connected tightly to upholstery tool or machine.
-
Page 12: Specifications
MYTEE-LITE II SPECIFICATIONS Model 8020, A8020, 8070, A8070, 26 in LENGTH WIDTH 12 in HEIGHT 29 in WEIGHT 45 lbs SOLUTION TANK CAPACITY 3 gal RECOVERY TANK CAPACITY 3 gal 55 psi SOLUTION PUMP VACUUM MOTOR 2 stage SEALED WATER LIFT 85”...
