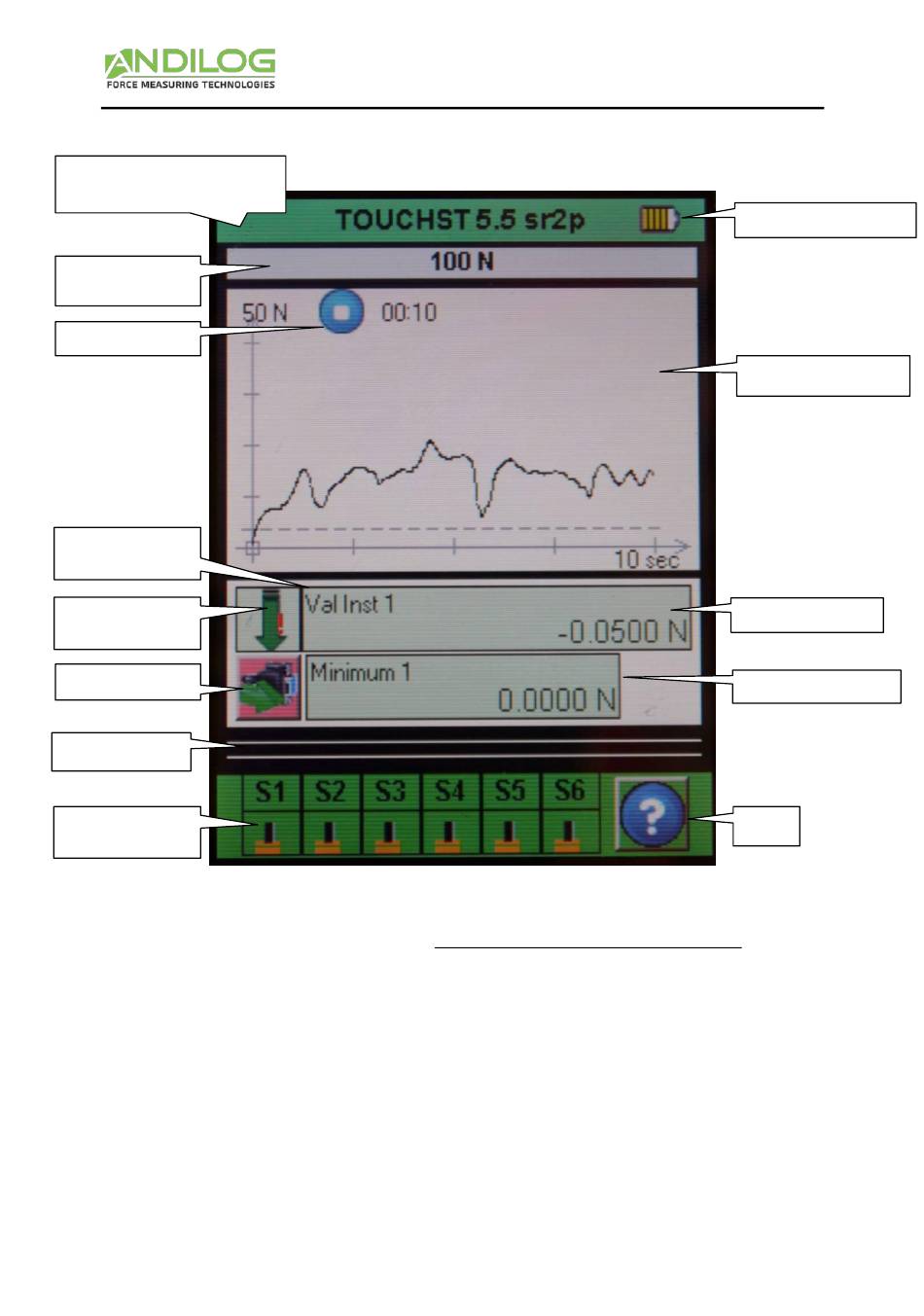

Note: the described parameters below are part of the default configuration
1. Information bar: Version and
Menu Access
2. Sensor capacity
Test Stage
6. Value name
7. Sensor direction
Forward data
3. Bar graph
States of TTL
Output
1. Information bar - The name of your device and battery status are displayed: Low battery
indication: pictogram indicating the battery power status via 4 horizontal lines which respectively
symbolize 25%, 50%, 75% and 100% of power. Press this field to access to the Main MENU
2.
Sensor Capacity: The capacity and unit of your device is displayed at any time, even for additional
remote external sensor.
3. Bar Graph: A black line is the representation of the applied force. If the bar graph is full, it means
that the sensors maximum range is reached: risk of overload! If the "limit set pints" are activated,
colours may change accordingly to the current applied value (see dedicated chapter).
4. Main display: Many values can be displayed in this window. See display screen chapter for details.
5. Auxiliary display: Many values can be displayed in this window. See display screen chapter for
details.
Instructions Manual – V6.10
CENTOR TOUCH Force Gauge – STAR / DUAL version
- 7 -
Battery information
Graph Area
4. Main display
5. Auxiliary display
Help
