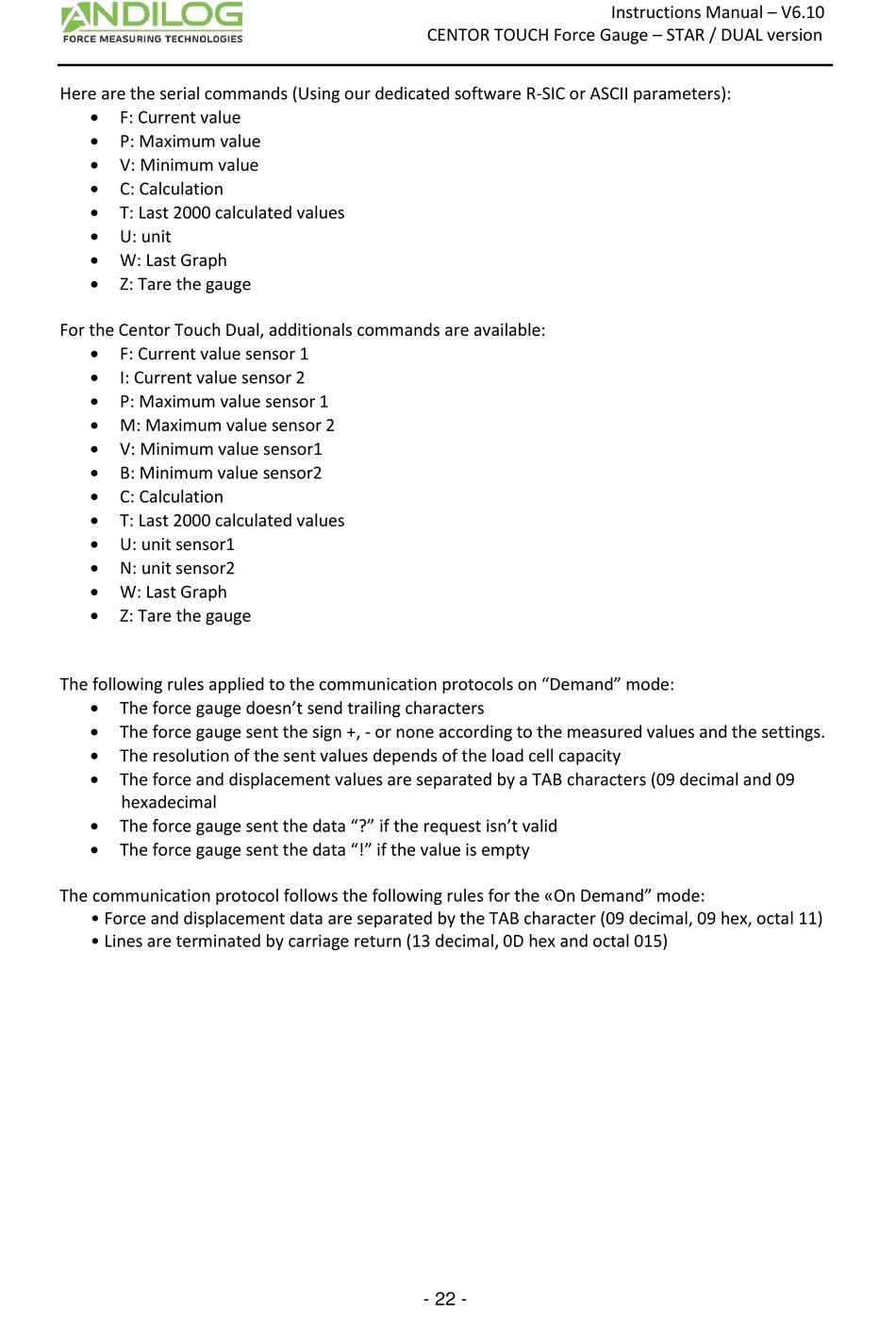

Here are the serial commands (Using our dedicated software R-SIC or ASCII parameters):

F: Current value

P: Maximum value

V: Minimum value

C: Calculation

T: Last 2000 calculated values

U: unit

W: Last Graph

Z: Tare the gauge
For the Centor Touch Dual, additionals commands are available:

F: Current value sensor 1

I: Current value sensor 2

P: Maximum value sensor 1

M: Maximum value sensor 2

V: Minimum value sensor1

B: Minimum value sensor2

C: Calculation

T: Last 2000 calculated values

U: unit sensor1

N: unit sensor2

W: Last Graph

Z: Tare the gauge
The following rules applied to the communication protocols on "Demand" mode:

The force gauge doesn't send trailing characters

The force gauge sent the sign +, - or none according to the measured values and the settings.

The resolution of the sent values depends of the load cell capacity

The force and displacement values are separated by a TAB characters (09 decimal and 09
hexadecimal

The force gauge sent the data "?" if the request isn't valid

The force gauge sent the data "!" if the value is empty
The communication protocol follows the following rules for the «On Demand" mode:
• Force and displacement data are separated by the TAB character (09 decimal, 09 hex, octal 11)
• Lines are terminated by carriage return (13 decimal, 0D hex and octal 015)
