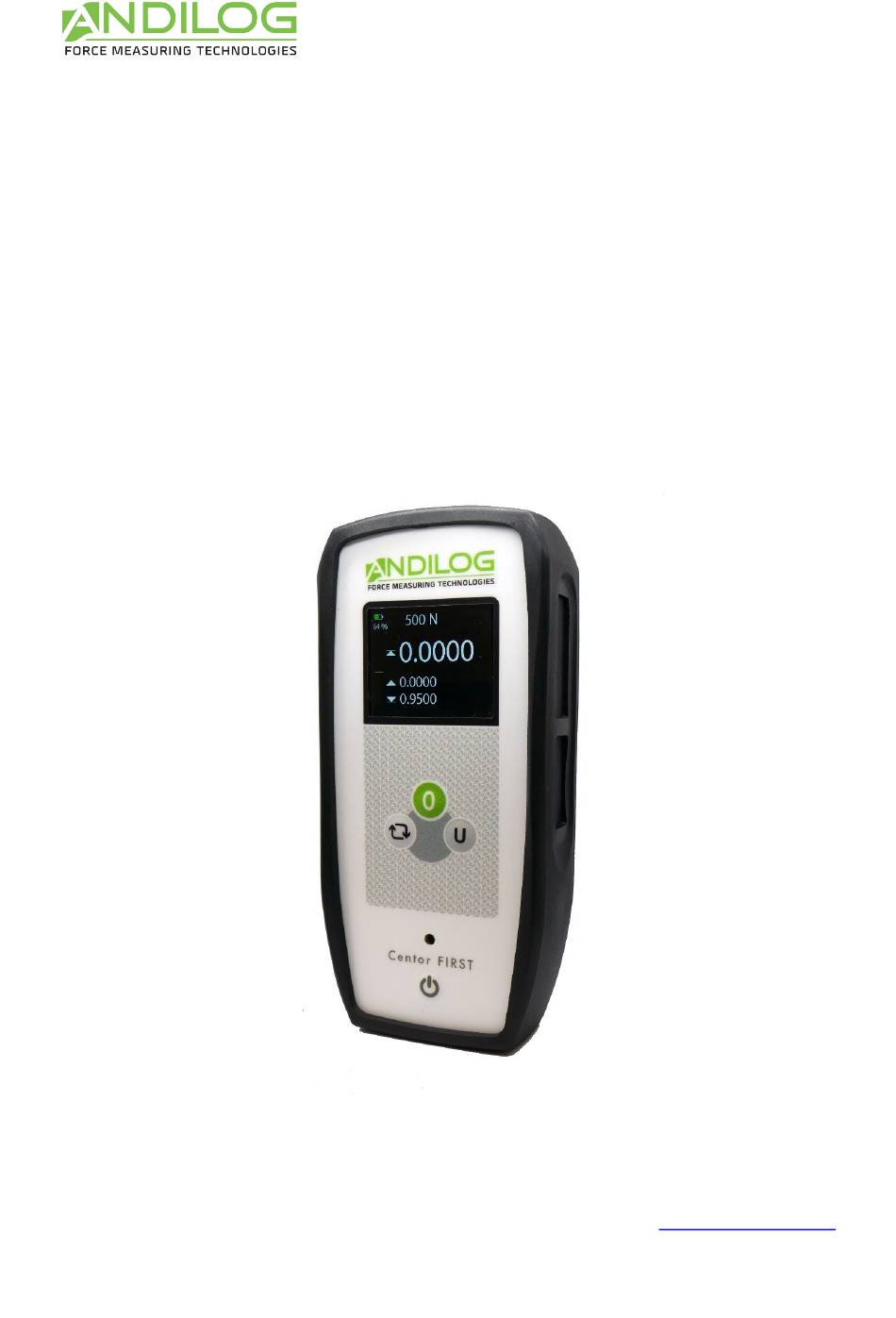

- Page 1 User's manual CENTOR FIRST II User's manual CENTOR FIRST II ANDILOG Technologies - BP62001 - 13845 Vitrolles Cedex – France COM-TEN Industries – 6405 49th Street North – Pinellas Park, FL, 33781 - USA Site: www.andilog.com...
-
Page 2: Table Of Contents
User's manual CENTOR FIRST II Contents Introduction ............................. 3 1.1. Presentation ..........................3 1.2. Recommendations before use ....................3 1.2.1. Battery ..........................3 1.2.2. Sensor ..........................3 1.2.3. Building ..........................4 1.2.4. Precautions during testing ....................4 1.2.5. Environmental conditions ....................4 1.2.6. -
Page 3: Introduction

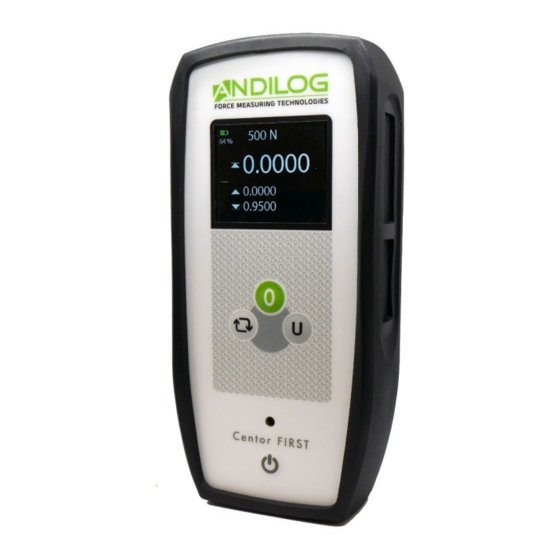

CENTOR FIRST II 1.1. Presentation Thank you for choosing the CENTOR FIRST II force gaughe manufactured by ANDILOG Technologies to perform your measurements. This instrument is the result of over 35 years of experience in force and torque measurement. It integrates the latest technologies available to offer you industrial level performance and measurement 1.2. -
Page 4: Building
The force gauge can be fixed on a frame using M5 screws. The length of the screws used should not exceed 3mm inside the instrument. Contact Andilog if you need more information or if you want an 1.2.4. Precautions during testing adapter to mount the instrument on a rack. - Page 5 The accuracy of our devices is guaranteed at the time of shipment at the value indicated in our documentation or offers. If products are damaged during shipment, notify the carrier and Andilog Technologies immediately. The warranty is void in case of accident, misuse or abuse.
-
Page 6: Getting Started
On the back of the force gauge are 2 M5 threaded holes that can be used to mount the force gauge on an ANDILOG frame. Each ANDILOG frame is delivered with a special spacer and the fixing screws for this use. -
Page 7: Using The Centor First
CENTOR FIRST II 3.1. Start-up Please note that the Centor First II measures very small changes in force and may not read exactly zero if it is moved during its self-test procedure. When properly mounted and zeroed, the reading remains stable. -
Page 8: Extinguishing
All settings are saved in memory when the force gauge is turned off. The force gauge will operate 3.2. Extinguishing with the same settings when it is turned back on (unit, display order). To turn off the Centor First II, press and hold the button until the instrument turns off (5 seconds). 3.3. Measurement screen... -
Page 9: Doing The Zero
User's manual CENTOR FIRST II Battery indicator: varies between 0% and 100% to indicate the battery life. When the battery is new, the autonomy is about 15 hours in continuous use. When the battery percentage reaches 0% the force gauge turns off. -
Page 10: Changing The Display Order
. The display order of the different values will shift upwards. The top line will then move to the bottom. Each press of this key changes the display. The Centor First II remembers the display order when it is turned off. -
Page 11: Maintenance And Troubleshooting
My device turns itself off. 1. Check that the battery percentage is not at 0%. Put the device on charge 2. The Centor First II will automatically shut off after 15 minutes if no button is pressed. My device is blocked, the force does Turn off and restart your instrument using the on/off key. - Page 12 User's manual CENTOR FIRST II Characteristic Capacity Accuracy 0.25 % of capacity Autonomy 3 p.m. Power supply MicroUSB, 5V, 1A Net weight 520 g Units N, daN, kg, lb Sensor sampling frequency 1000 Hz - 12 -...
