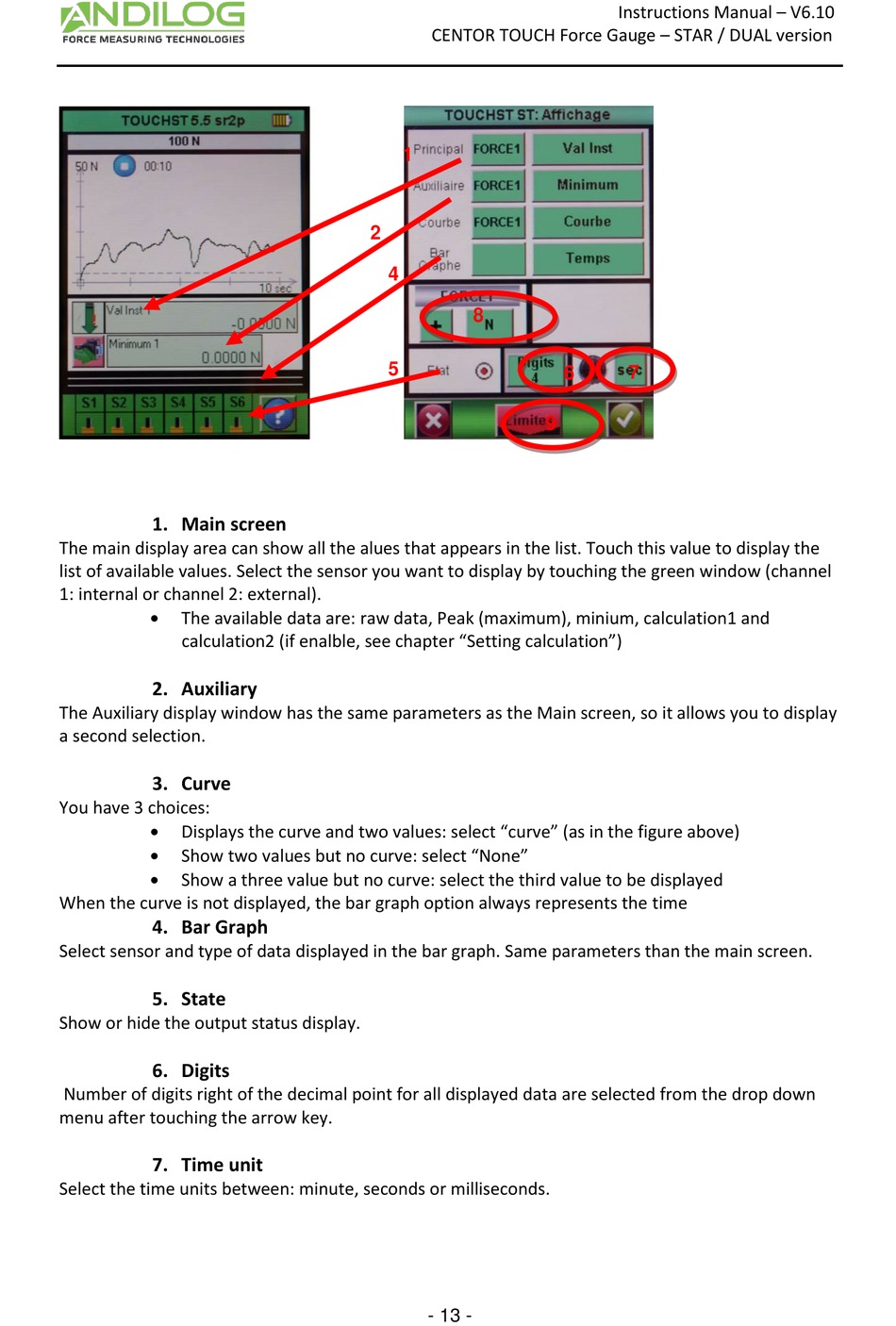

1. Main screen

The main display area can show all the alues that appears in the list. Touch this value to display the
list of available values. Select the sensor you want to display by touching the green window (channel
1: internal or channel 2: external).

The available data are: raw data, Peak (maximum), minium, calculation1 and
calculation2 (if enalble, see chapter "Setting calculation")

2. Auxiliary

The Auxiliary display window has the same parameters as the Main screen, so it allows you to display
a second selection.

3. Curve

You have 3 choices:

Displays the curve and two values: select "curve" (as in the figure above)

Show two values but no curve: select "None"

Show a three value but no curve: select the third value to be displayed
When the curve is not displayed, the bar graph option always represents the time

4. Bar Graph

Select sensor and type of data displayed in the bar graph. Same parameters than the main screen.

5. State

Show or hide the output status display.

6. Digits

Number of digits right of the decimal point for all displayed data are selected from the drop down
menu after touching the arrow key.

7. Time unit

Select the time units between: minute, seconds or milliseconds.
CENTOR TOUCH Force Gauge – STAR / DUAL version
1
2
4
8
5
- 13 -
Instructions Manual – V6.10
6 7
9
