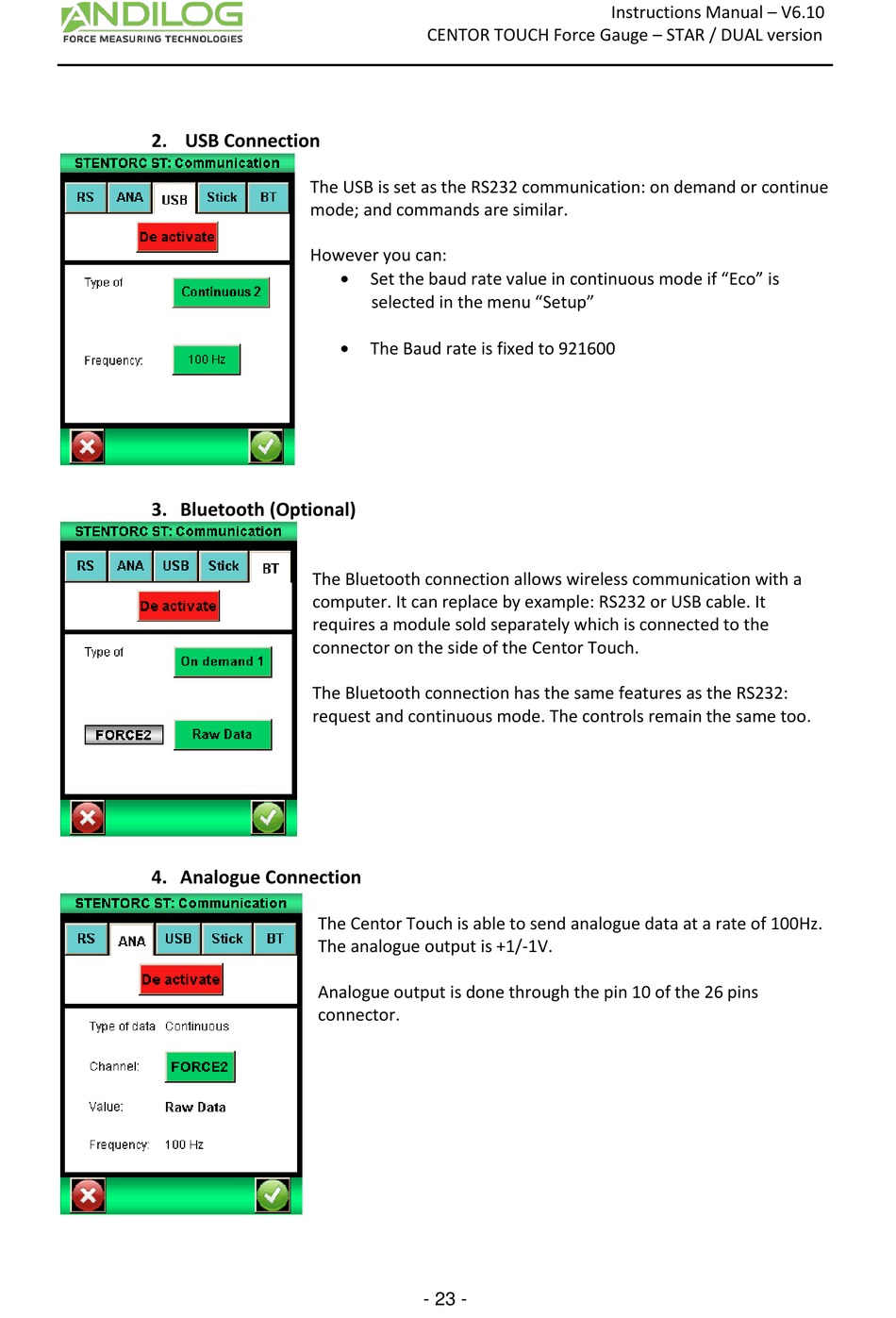

2. USB Connection

The USB is set as the RS232 communication: on demand or continue
mode; and commands are similar.
However you can:

3. Bluetooth (Optional)

The Bluetooth connection allows wireless communication with a
computer. It can replace by example: RS232 or USB cable. It
requires a module sold separately which is connected to the
connector on the side of the Centor Touch.
The Bluetooth connection has the same features as the RS232:
request and continuous mode. The controls remain the same too.

4. Analogue Connection

The Centor Touch is able to send analogue data at a rate of 100Hz.
The analogue output is +1/-1V.
Analogue output is done through the pin 10 of the 26 pins
connector.
CENTOR TOUCH Force Gauge – STAR / DUAL version

Set the baud rate value in continuous mode if "Eco" is
selected in the menu "Setup"

The Baud rate is fixed to 921600
- 23 -
Instructions Manual – V6.10
