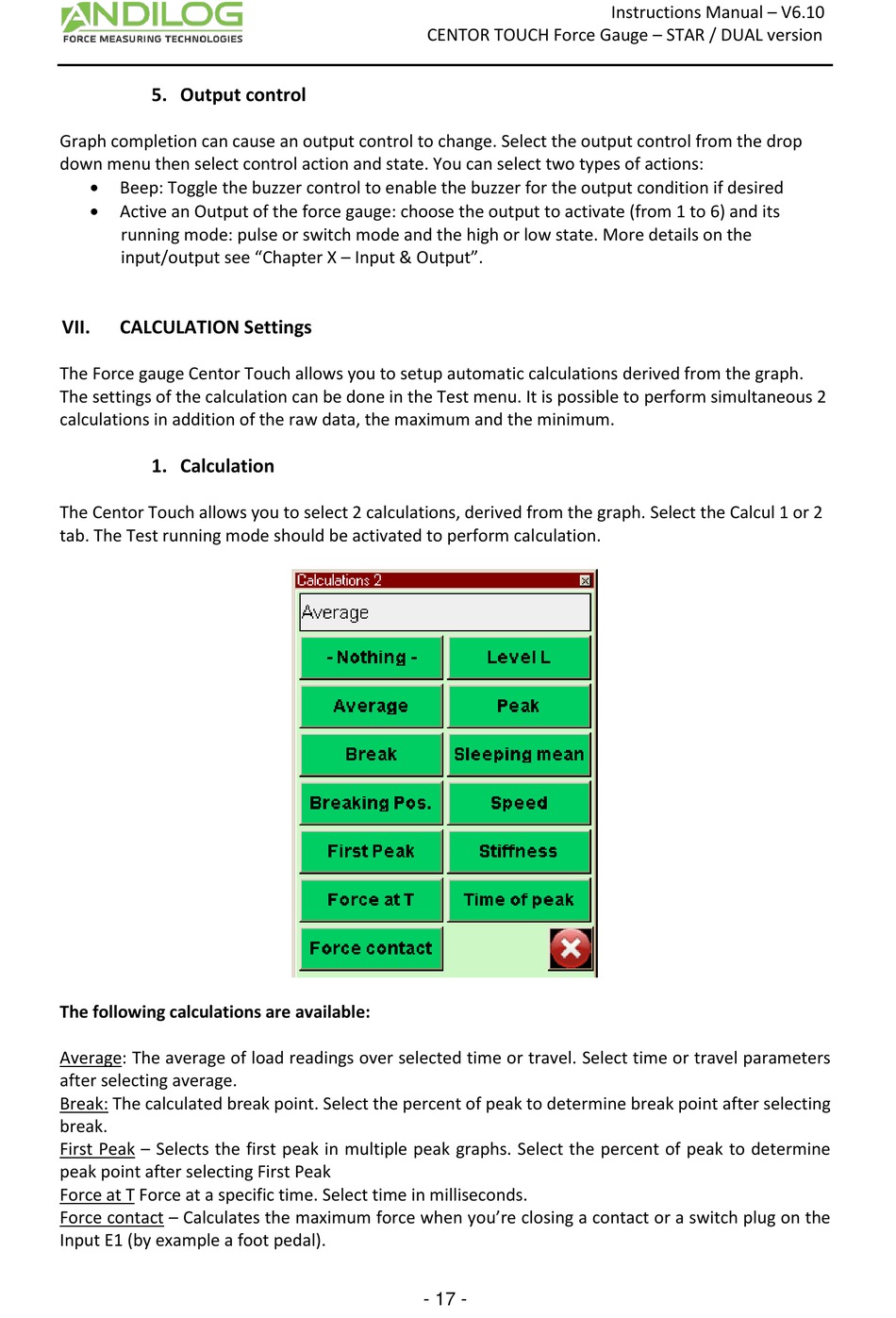

5. Output control

Graph completion can cause an output control to change. Select the output control from the drop
down menu then select control action and state. You can select two types of actions:

Beep: Toggle the buzzer control to enable the buzzer for the output condition if desired

Active an Output of the force gauge: choose the output to activate (from 1 to 6) and its
running mode: pulse or switch mode and the high or low state. More details on the
input/output see "Chapter X – Input & Output".
VII.

CALCULATION Settings

The Force gauge Centor Touch allows you to setup automatic calculations derived from the graph.
The settings of the calculation can be done in the Test menu. It is possible to perform simultaneous 2
calculations in addition of the raw data, the maximum and the minimum.

1. Calculation

The Centor Touch allows you to select 2 calculations, derived from the graph. Select the Calcul 1 or 2
tab. The Test running mode should be activated to perform calculation.
The following calculations are available:
Average: The average of load readings over selected time or travel. Select time or travel parameters
after selecting average.
Break: The calculated break point. Select the percent of peak to determine break point after selecting
break.
First Peak – Selects the first peak in multiple peak graphs. Select the percent of peak to determine
peak point after selecting First Peak
Force at T Force at a specific time. Select time in milliseconds.
Force contact – Calculates the maximum force when you're closing a contact or a switch plug on the
Input E1 (by example a foot pedal).
