Record Data And Statistical Mode; Statistics Setup - ANDILOG CENTOR TOUCH STAR Operating Manual

Instructions Manual – V6.10
CENTOR TOUCH Force Gauge – STAR / DUAL version
VIII.

RECORD DATA AND STATISTICAL Mode.

The Centor Touch has a memory of the least 1000 values per channels and automatically calculating
the sleeping mean, the standard deviation and the mean divided by the standard deviation. It is
possible to record 3 results simultaneously to choose in between: the maximum, the minimum,
calcultaion1 and calcultion2.
Note: The force gauge can't record multiples curves. Only the last curve is stored. You have to
connect the force gauge to a computer or used the memory USB stick called DATASTICK to save
multiples curves.
Statistics and memory must be enabled by touching the statistics symbol on the setup screen.

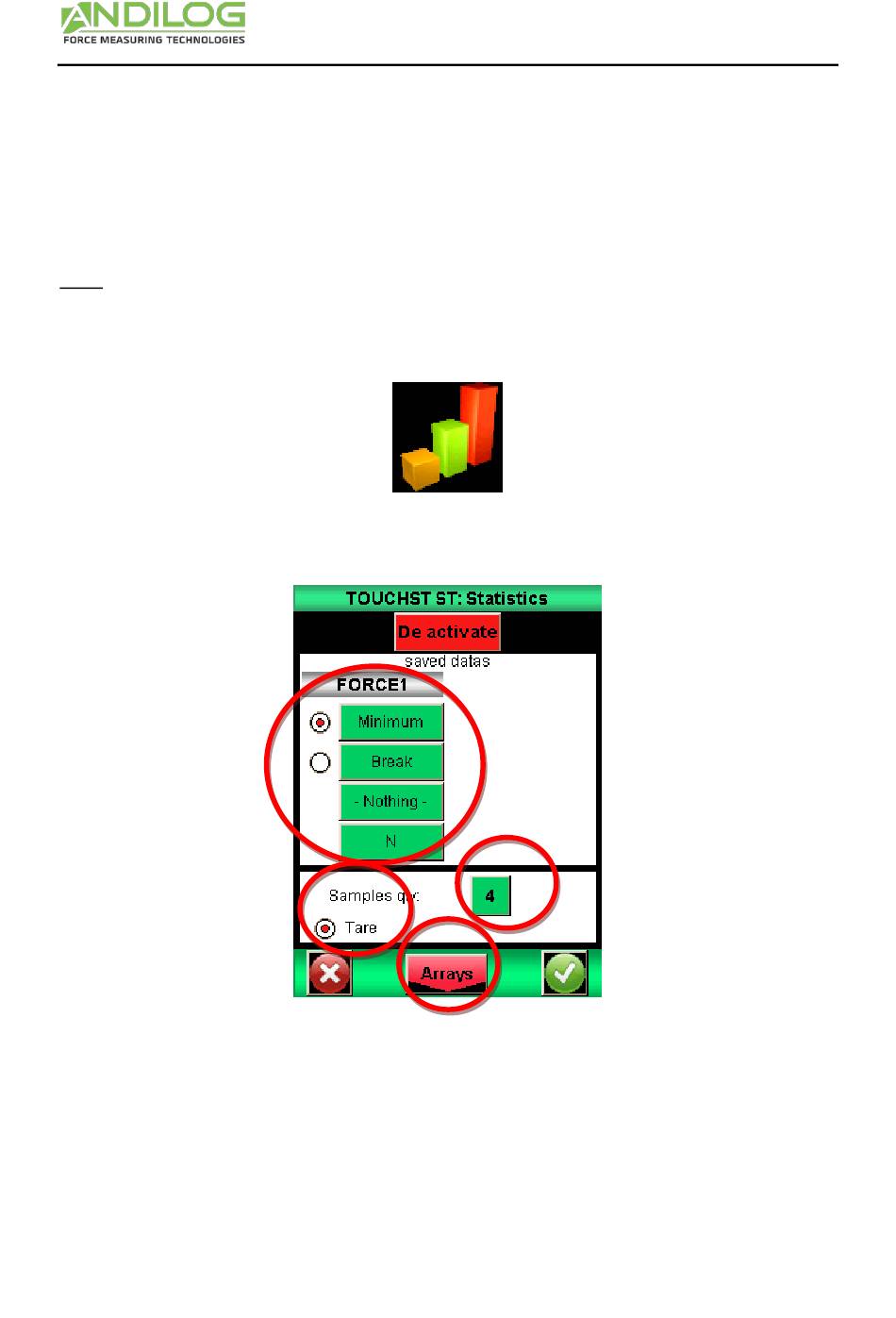

1. Statistics setup

1
2
3
4
1: Select the desired result to be entered into the statistic arrays; you can choose 3 types of values to
record: maximum, minimum, calculation1 or calculation2 for each channel. Select the units desired.
2: More than one result can be averaged to create a saved result. Enter this number in the Samples.
3: By default the "Tare" will be done automatically once the results are saved; but you can de-
activate it.
4: Then you would be able to display the tab of values by touching button "Arrays".
- 19 -
