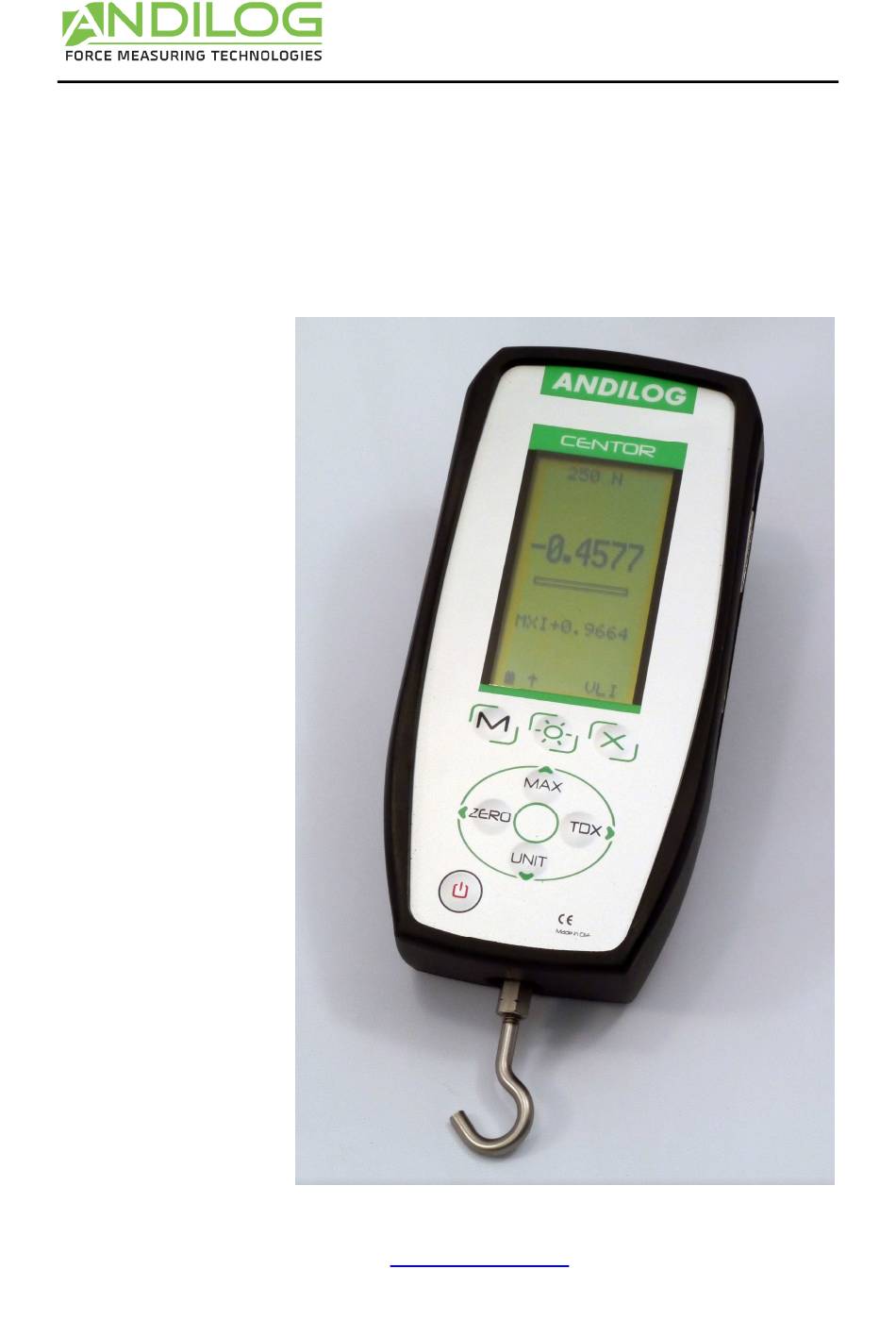

- Page 1 Operating Manual CENTOR EASY Gauge Operating Manual CENTOR EASY V3.39 ANDILOG Technologies - BP62001 - 13845 Vitrolles Cedex 9 - France E-mail : info@andilog.com Web : www.andilog.com Ph : +33(0)442 348 340 – Fax : +33(0)442 348 349...
-
Page 2: Table Of Contents
Operating Manual – V3.39 CENTOR EASY Force Gauge Presentation ......................... 2 Handling........................2 III. Recommendation before first use ................... 2 Sensor ........................2 Test Stand ......................... 2 Conditions ........................ 3 Battery ........................3 IV. Presentation of your force gauge ..................4 Front panel scheme .................... -
Page 3: Presentation
This force gauge is the result of 25 years experience in force and torque measurements with new electronic technologies offering a higher-performance and more reliable instrument. Though it is a very comprehensive instrument, the CENTOR EASY force gauge is easy to use. This instruction manual will guide you to set your first measurements. -
Page 4: Conditions
The battery life is 8 hours under a normal use. The gauge should be charged after normal use. You should charge it every 3 weeks, to ensure a maximum life time of the batteries. It is recommended to use the original power adaptor supplied by ANDILOG Technologies. The power adaptor has the following specifications: 12V, 0.85A... -
Page 5: Presentation Of Your Force Gauge

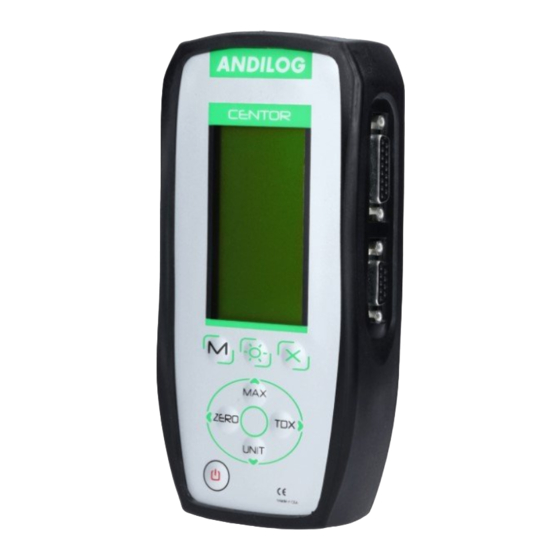

Operating Manual – V3.39 CENTOR EASY Force Gauge Presentation of your force gauge 1. Front panel scheme CAPACITY MAIN DISPLAY AREA SECONDARY DISPLAY AREA BARGRAPH BACKLIGHT CANCEL ACTION CHANGES DISPLAYED VALUE SETTING MENU ZEROING DATA TRANSFER ON / OFF CHANGES UNIT... -
Page 6: Starting Your Force Gauge
Operating Manual – V3.39 CENTOR EASY Force Gauge CONNECTOR 9 PINS OFF CONNECTOR 15 PINS ON CENTOR EASY INCLUDING INPUTS / OUTPUTS OF CENTOR EASY 2. Starting your force Gauge Press the I/O button the information screen showing the status of the CENTOR force gauge is displayed during 5 seconds, and then the main screen is displayed. -
Page 7: Display Mode
Operating Manual – V3.39 CENTOR EASY Force Gauge 3. Display mode We describe here the screen following manufacturer settings, prepared by ANDILOG for delivery. Capacity of the load cell Measuring unit Line 1 Bargraph Type of value Line 2 displayed on... -
Page 8: Measure Unit
Operating Manual – V3.39 CENTOR EASY Force Gauge 5. Measure unit To change the measure unit, just press “UNIT” button. When the force gauge is tooled up with an external sensor, it detects the type of sensor connected and displays the corresponding units. -
Page 9: Advanced Features
Operating Manual – V3.39 CENTOR EASY Force Gauge Advanced features CENTOR force gauge has several functions and settings, which makes it well adapted to the achievement of any test. To optimize the force gauge operation compared to your application, we will study all the setting possibilities hereafter. -
Page 10: Limits
Operating Manual – V3.39 CENTOR EASY Force Gauge In the following screens, the operating mode is the same, however, in any other screen whatever the position of the cursor: “X”: switches to the previous screen cancelling the modifications. “M”: switches to the previous screen and saving the modifications. -
Page 11: Display
Operating Manual – V3.39 CENTOR EASY Force Gauge You can display the word “FAIL” or “PASS”; the setting is done in the “DISPLAY” menu. FAIL when the current value is inside the faulty zone Display the position of the value according to the... -
Page 12: In / Out
3. IN / OUT I N P U T S The Centor EASY force gauge is equipped with a SubD15 pins connector on the side. You can use this connector to connect it to an P e d a l external device in order to communicate. -
Page 13: Rs232
Operating Manual – V3.39 CENTOR EASY Force Gauge 4. RS232 The first part of the screen defines the parameters of RS232 R S 2 3 2 I / O communication and can be modified via buttons. They must be identical to your computer settings. -
Page 14: Statistics And Memory
Operating Manual – V3.39 CENTOR EASY Force Gauge 5. Statistics and memory The Centor Easy has a mode called “Statistical” allowing to perform a series a measurements and get quickly the mean and standard deviation. a. Limitation The memory of the force gauge is limited to 100 measurements; beyond it will be necessary to clear the first results to be able to add new ones. - Page 15 Operating Manual – V3.39 CENTOR EASY Force Gauge e. Erasing Procedure Press the left button (ZERO) to erase the selected sample or the complete set of measurements. If your sample includes several measures, they will E R A S E ? be all deleted.
-
Page 16: System
Operating Manual – V3.39 CENTOR EASY Force Gauge 6. System Version of the internal force gauge Date of the day Language Hour of he day Serial number Due date of the next calibration The following settings can be set: Date, Hour and Language... -
Page 17: Associated Products
To ensure a precise measurement, it is important that your CENTOR force gauge is placed in the axis of the force throughout the test. To ensure this placement is correct, ANDILOG and ANDILOG TECHNOLOGIES have developed a complete range of simple and sophisticated test stands. -
Page 18: Appendices
Operating Manual – V3.39 CENTOR EASY Force Gauge VII. Appendices 1. Key action Button Measure Mode Menu Mode ON/Off Turn On & Off your device Turn On & Off your device Access to the menu mode Exit and Save Backlight... -
Page 19: Factory Settings
Operating Manual – V3.39 CENTOR EASY Force Gauge 4. Factory Settings Feature Value LIMITS Chanel DISPLAY LINE1 LINE2 SIGN DECIMA BARG RAFF DIRECT AUTOFF IN/OUT PEDALE TOP1 ANAL DIGI RS232 RS232 9600 None Bits Stop Demandd Signe Unite DatHeur - 18 -... -
Page 20: Connections
Operating Manual – V3.39 CENTOR EASY Force Gauge 5. Connections Detail of connector SubD 15 points of CENTOR electronic card Not connected Reset To be connected to Ground for reset RS232 RS232 Digimatic Digimatic Digimatic Digimatic Output Force N°1 Output Force N°2 Input Force N°1... -
Page 21: Dimensions
Operating Manual – V3.39 CENTOR EASY Force Gauge 6. Dimensions - 20 -...
