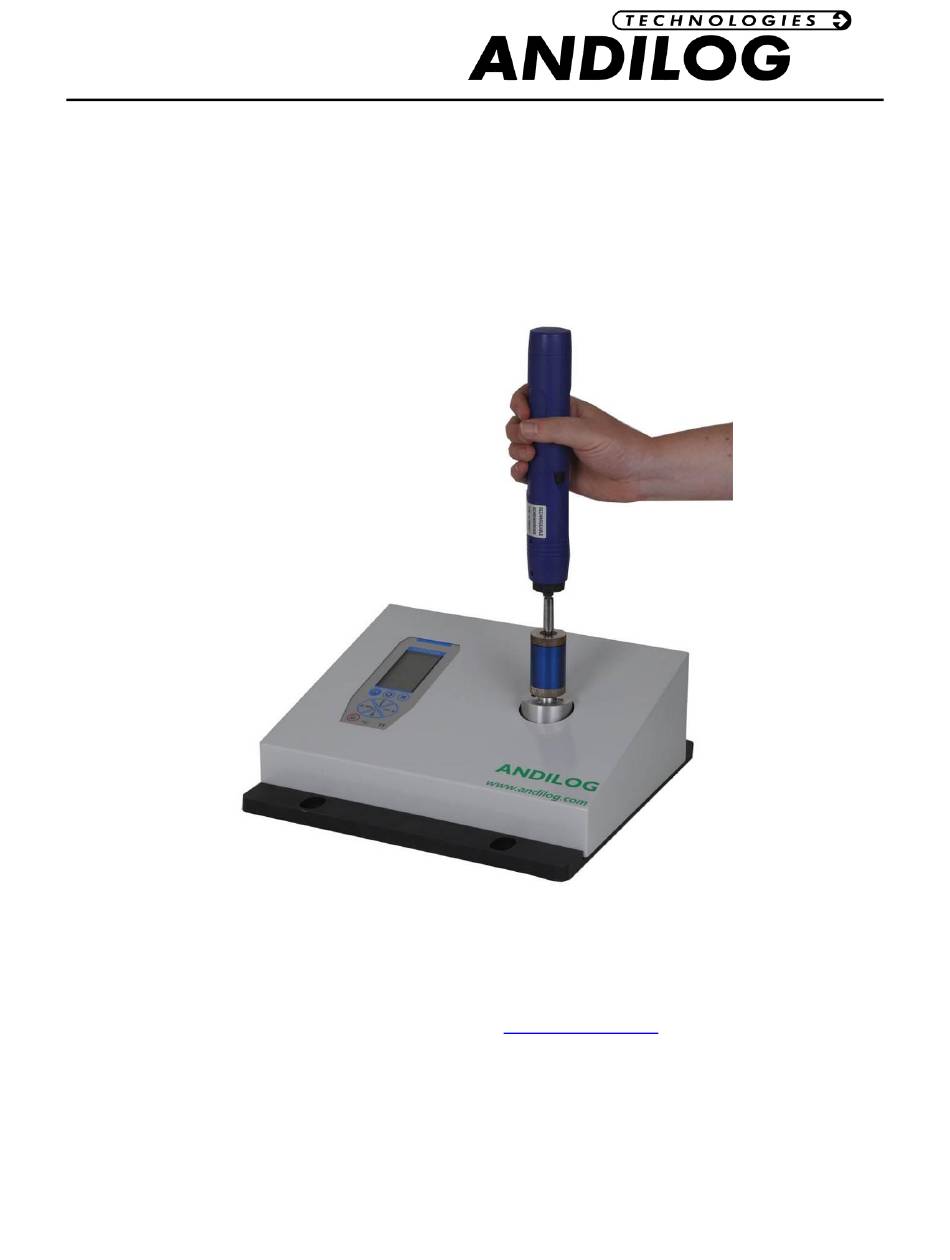

- Page 1 Operating Manual - 1.0 CENTORMETER EASY Operating Manual CENTORMETER EASY V1.0 ANDILOG Technologies - BP62001 - 13845 Vitrolles Cedex 9 - France Email : info@andilog.com Site : www.andilog.com Ph: +33(0)820.888.202 – Fax: +33(0)820.888.902...
-
Page 2: Table Of Contents
Handling ..........................2 Unpacking ..........................2 Recommendation before first use ..................3 Product presentation ......................4 Starting your torque analyzer CENTORMETER EASY ............. 6 Display mode ......................... 7 Reset function ........................8 Measure unit ......................... 8 Peak values ..........................8 Backlight .......................... -
Page 3: Introduction
CENTORMETER EASY Introduction 1. Presentation Thank you for choosing the CENTORMETER EASY Torque analyzer manufactured by Andilog Technologies. This torque analyzer is the result of 25 years experience in force and torque measurements with new electronic technologies offering a higher-performance and more reliable instrument. -
Page 4: Recommendation Before First Use
The battery life is 8 hours under a normal use. The gauge should be charged after normal use. You should charge it every 3 weeks, to ensure a maximum life time of the batteries. It is recommended to use the original power adaptor supplied by ANDILOG Technologies. The power adaptor has the following specifications: 12V, 1.5A... -
Page 5: Product Presentation
Operating manual – V1.0 CENTORMETER EASY 3. Product presentation General view: Run down adapteur (optional accessories for motorized torque tools)) Display Internal senor supply with matching square 4 fixing holes Back of the Centormeter Power switch USB/RS232 Output Power supply... - Page 6 Operating manual – V1.0 CENTORMETER EASY Display presentation: VALUE DISPLAY BACK LIGHT ACTIONS CANCELS SETTING MODE DISPLAY OF PEAK VALUES OR CALCULATIONS UNIT CHANGE ON/OFF BUTTON - 5 -...
-
Page 7: Starting Your Torque Analyzer Centormeter Easy
Operating manual – V1.0 CENTORMETER EASY 4. Starting your torque analyzer CENTORMETER EASY Press the I/O button, the information screen showing the status of the CENTORMETER force gauge is displayed for 5 seconds and then the main screen is displayed. -
Page 8: Display Mode
Operating manual – V1.0 CENTORMETER EASY 5. Display mode NOTE: Described here are manufacturer settings, prepared by ANDILOG TECHNOLOGIES for delivery. 3 N m Measure Unit Sensor Capacity +0000 Line 1 Time Bar graph M X I + 0 0 . 0 0... -
Page 9: Reset Function
Operating manual – V1.0 CENTORMETER EASY An easy-to-remember small symbol indicates the direction of the force exerted on the sensor ( VAL 1: indicates the value displayed on line 1. You can effectively modify the information displayed on this line. We will see on Chapter 4 part C how to change the displayed value. - Page 10 Operating manual – V1.0 CENTORMETER EASY Place your torque tools to control in the square fixture of the Centormter Easy. Press the ZERO button to reset to 0 the maximum and minimum values. Apply torque on your torque tools. The Centometer Easy automatically display the maximum values measured on the first line and will remember it until the ZERO buttons is pressed or the power is turned off.
-
Page 11: Advanced Features
Operating manual – V1.0 CENTORMETER EASY III. Advanced Features Access to the advanced features configuration mode by pressing the M button. The following screen appears: 1. Setting screen: M E N U C E N T O R M S C R E E N... -
Page 12: Display
Operating manual – V1.0 CENTORMETER EASY Following are the force gauge functions described one by one: 2. Display D I S P L A Y L I N E 1 L I N E 2 S I G N D E C I M A... -
Page 13: System Setting
15pins connector on the back of the unit. Once connected to a computer, the Centormeter EASY can send data according to two protocols: Pressing the TDX button, the Centormeter EASY send under ASCII format the maximum torque value ... -
Page 14: Associated Products
You want to capture the values graph and use graphics tools: CALIGRAF software goes further in tests analysis. If you wish to connect your gauge to a PC via one of our programs, contact your ANDILOG TECHNOLOGIES. 2. Interface Cables... -
Page 15: Appendices
Operating manual – V1.0 CENTORMETER EASY APPENDICES 1. Keyboard chart BUTTON N° MEASURE Screen MENU Screen 1 on/ off Turn the gauge on / Turn the gauge on / Backlight on/ off Backlight on/ off 3 ZERO Resets values Left Arrow... -
Page 16: Error Messages
Operating manual – V1.0 CENTORMETER EASY 3. Error messages Diagnostic screen: This screen is displayed in two cases: After the completion of internal tests, if a minor or major defect has been found. In System Menu, when M + MAX are pressed.
