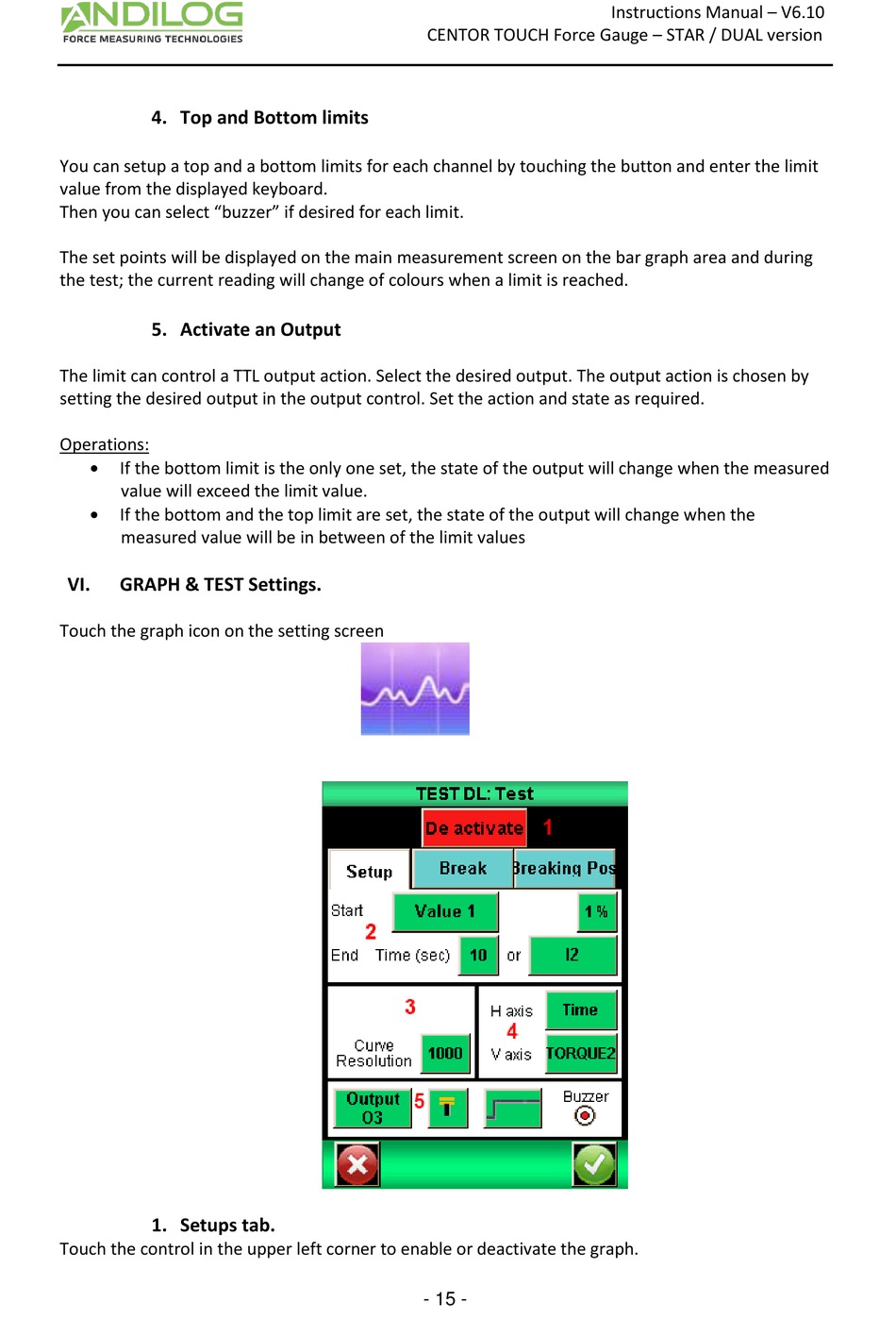

4. Top and Bottom limits

You can setup a top and a bottom limits for each channel by touching the button and enter the limit
value from the displayed keyboard.
Then you can select "buzzer" if desired for each limit.
The set points will be displayed on the main measurement screen on the bar graph area and during
the test; the current reading will change of colours when a limit is reached.

5. Activate an Output

The limit can control a TTL output action. Select the desired output. The output action is chosen by
setting the desired output in the output control. Set the action and state as required.
Operations:

If the bottom limit is the only one set, the state of the output will change when the measured
value will exceed the limit value.

If the bottom and the top limit are set, the state of the output will change when the
measured value will be in between of the limit values
VI. GRAPH & TEST Settings.
Touch the graph icon on the setting screen

1. Setups tab.

Touch the control in the upper left corner to enable or deactivate the graph.
CENTOR TOUCH Force Gauge – STAR / DUAL version
- 15 -
Instructions Manual – V6.10
