Summary of Contents for Cypress CIR-03

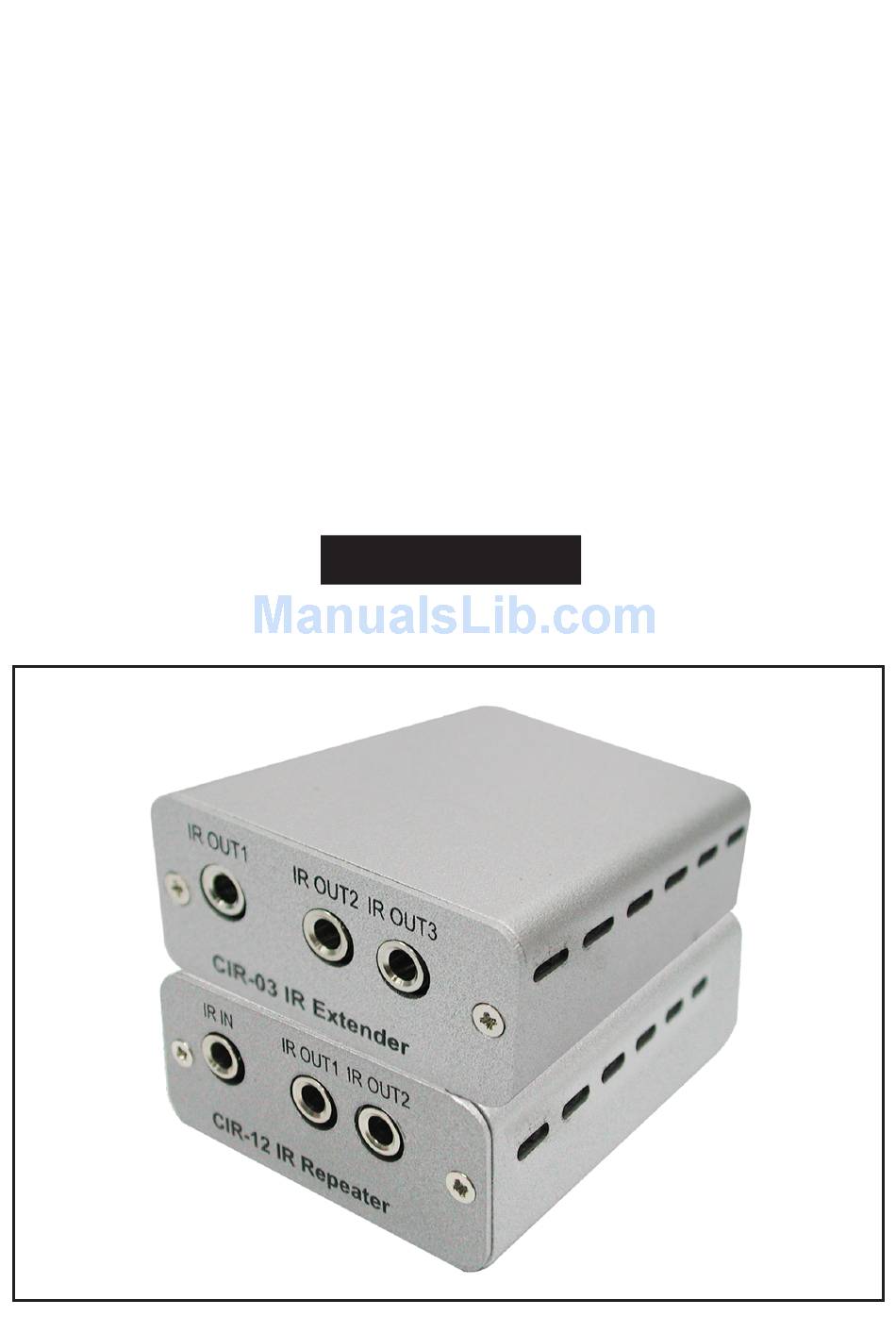

- Page 1 CIR-03 Infrared Extender Box and CIR-12 Infrared Repeater Operation Manual CIR-03 & CIR-12...
-
Page 2: Revision History
Revision History Version No Date Summary of Change 20081113 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to Infrared Extender and Repeater Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ... -
Page 3: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Application…………………………………………………....…. Contents………………………………………………......… System Require…………………………………….…………..……. Features……………………………………………..……..……… 6. Operation Controls and Functions………………..……..……… Front Panel ................Rear Panel …………………………………………..…….… Connection and Installation……………………………..……..… Specification……………………………………………...…………... -
Page 4: Introduction
Infrared Extender Box (CIR-03) Infrared Repeater Box (CIR-12) 1pc IR Eye Receiver cable (CIR-12) 5pcs IR Eye blaster cables (3pcs for CIR-03, 2pcs for CIR-12) 1pcs 5V DC power supply adaptor Operation Manual 4. System Require Input source equipments, output displayer connect with source equipments and CAT 5 cable. -
Page 5: Operation Controls And Functions
① IR CAT5: Connect CAT 5 cable to next Infrared Extender Box with IR receiver. ② Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet. Note: Only a power adapter is needed, Connect the power adapter on either CIR-03 or CIR-12. -
Page 6: Connection And Installation
7. Connection and Installation CIR-12 IR CAT5 CIR-03... -
Page 7: Specification
8. Specifications Input Port 1 x IR receiver Output ports 1 x CAT5 (CIR-03, CIR-12) 5 x IR extender (3 x CIR-03, 2 x CIR-12) Power Supply 1 x 5V/500mA DC (US/EU standards, CE/FCC/UL certified for CIR-12.) Dimensions (mm) 62(W) x 50(D) x 23(H)
