CYBEX CardioTouch 770T Installation Instructions Manual page 4

4. Lift the handset assembly carefully and unplug the graphics board cable (J12). The iPod cable
is held in place by a notch in the access cover.

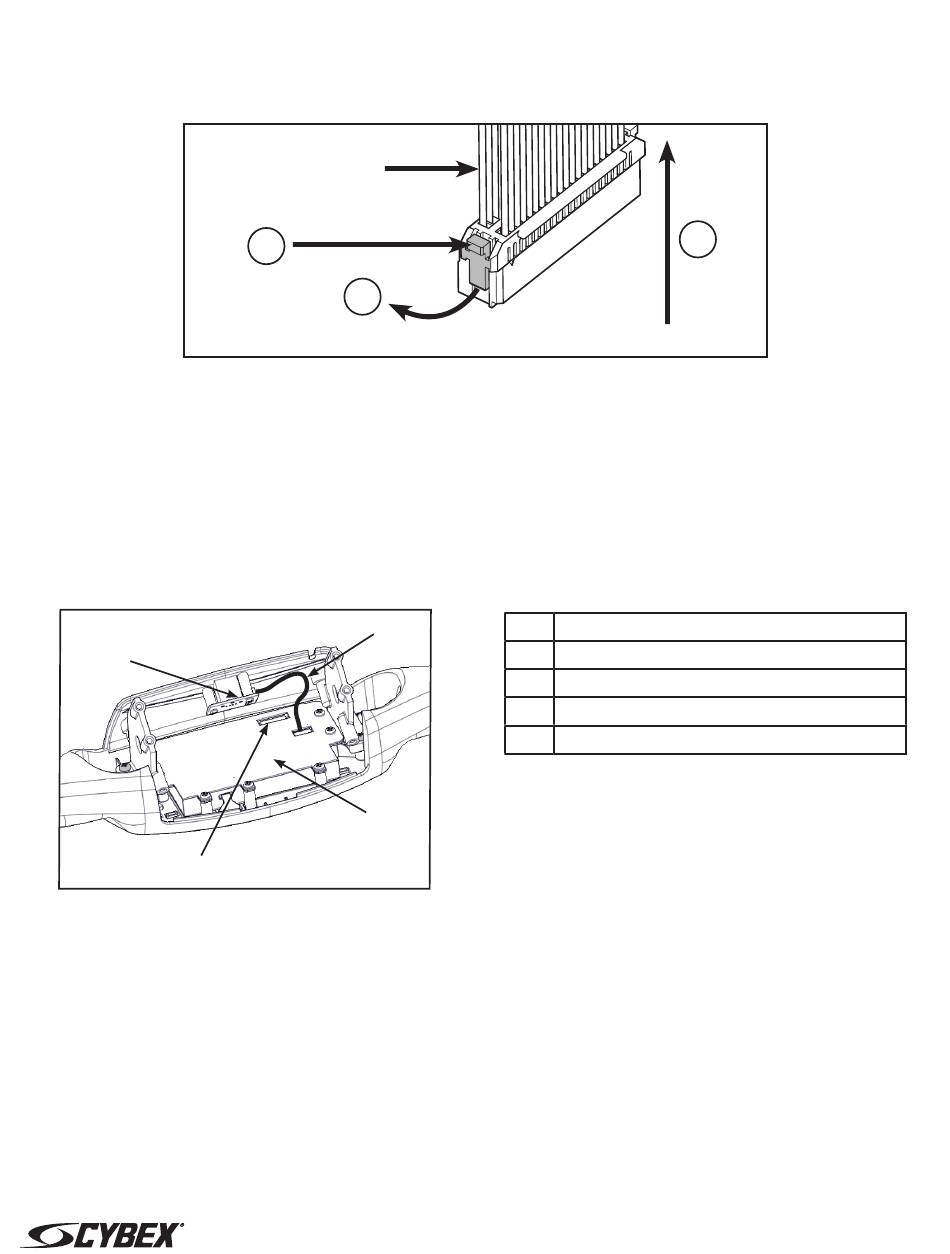

A. Press in both side latches of the cable connector.
B. Ensure the latches disengage from the connector.
C. Unplug cable by holding down the latches on both sides and pulling straight out from the
connector. Do not pull on wires, remove by connector.
Remove CardioTouch screen
Do not scratch front face of handset. Place on clean cloth or other soft surface.
1. Unplug the USB cable from the CardioTouch board.
1
3
2. Unplug the graphics board cable from the CardioTouch board.
DO NOT PULL
CONNECTOR OUT
BY THE WIRES!
A
B
2
4
Description
1 USB Board
2
USB Cable
3 Graphics Board Cable
4 CardioTouch Board
Page 4 of 11
C
