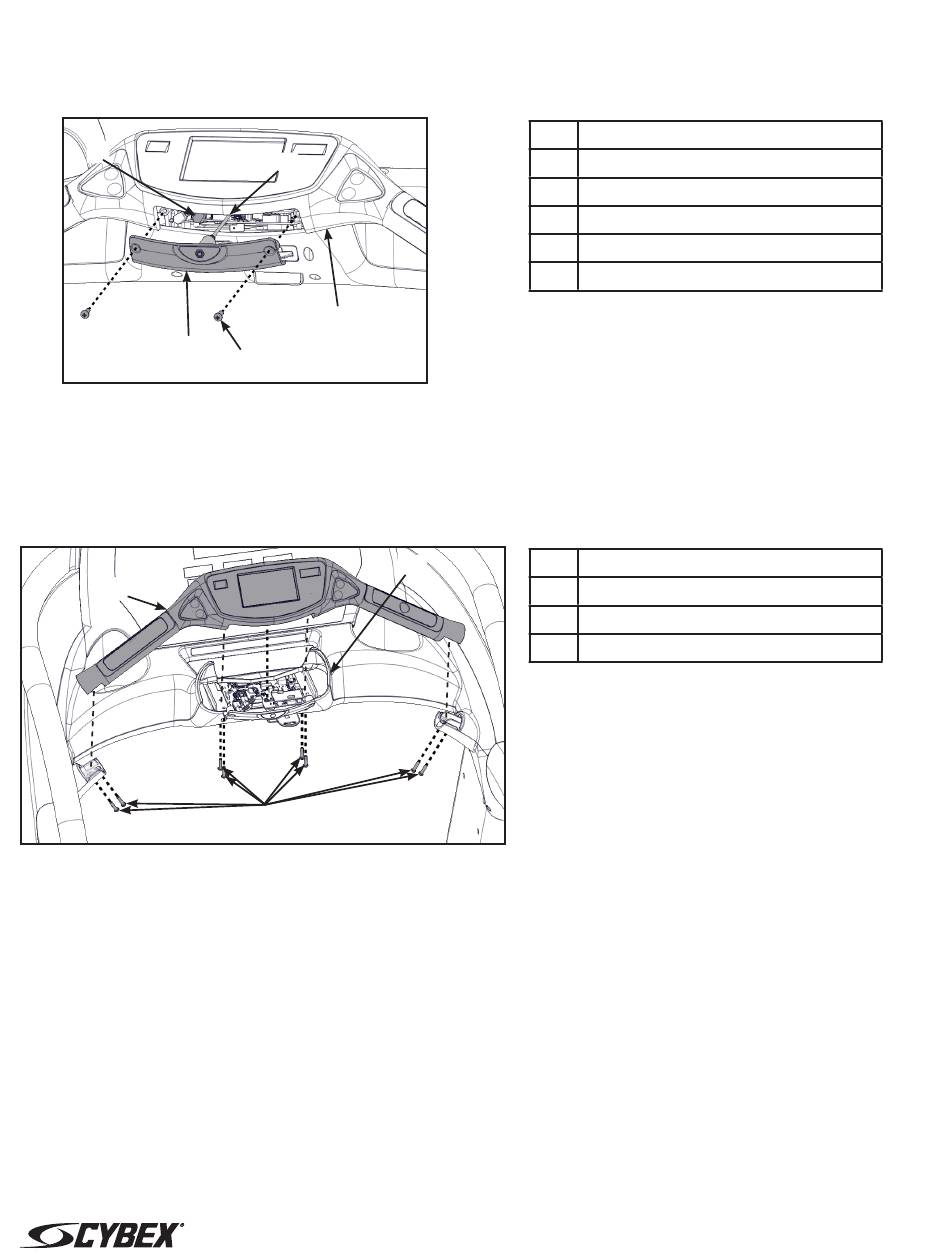

Remove headphone jack
1. Remove the two screws securing the headphone jack cover to the handset using a Phillips
screwdriver.
1
3
2. Unplug the headphone jack cable carefully from the connector J6 on the MCC board
(connector on right). Pull connector straight out, cable uses a 90 degree connector.
Remove handset assembly
1. Remove the eight screws securing the handset to the console using a Phillips screwdriver.
1
2
5
4
2
3
Page 2 of 11
Description
1 Connector J6
2 Headphone jack cable
3 Headphone jack cover
4
Screws (2)
5 Handset
Description
1 Handset assembly
2 Console
3 Screws (8)
