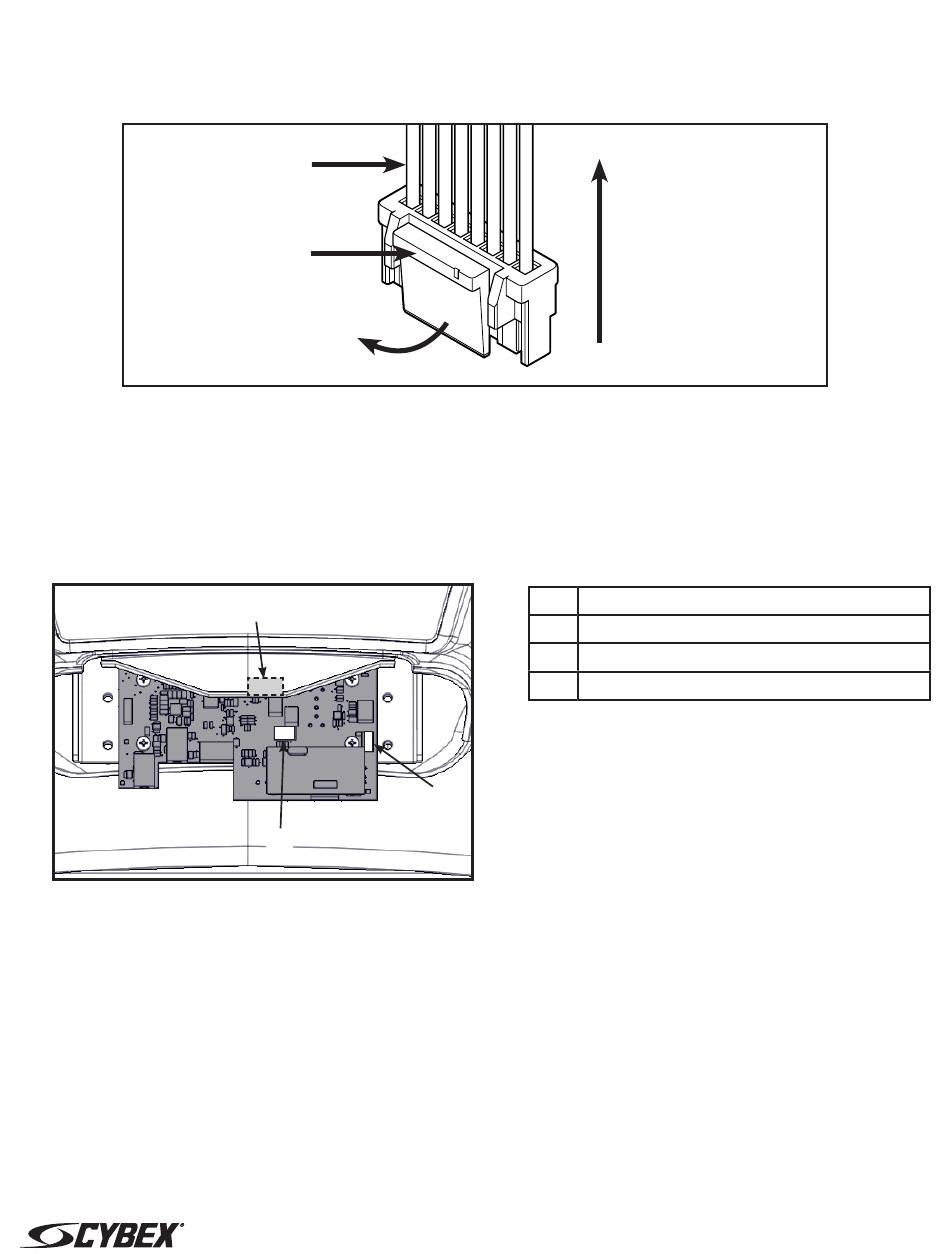

2. Unplug cables by un-latching connector from the MCC board with the following procedure Use
flashlight to locate connector latch and orientation. Note the orientation of the cable connector:
A. Press in the latch of the cable connector.
DO NOT PULL
CONNECTOR OUT
BY THE WIRES!
B. Ensure the latch disengages the connector.
C. Unplug cable by holding down the latch and pulling straight out from the connector. Do not
pull on wires, remove by connector.
3. Carefully lift the handset assembly and unplug the following cables: contact heart rate grips
(J7), handset membrane (J9) and the ground wire (located under the MCC board).
Latch
1
2
Page 3 of 11
Description
1
Graphics Board (J12) (under cover)
2 Handset Membrane (J9)
3 Contact Heart Rate Grips (J7)
3
Pull Straight Out
From Connector
