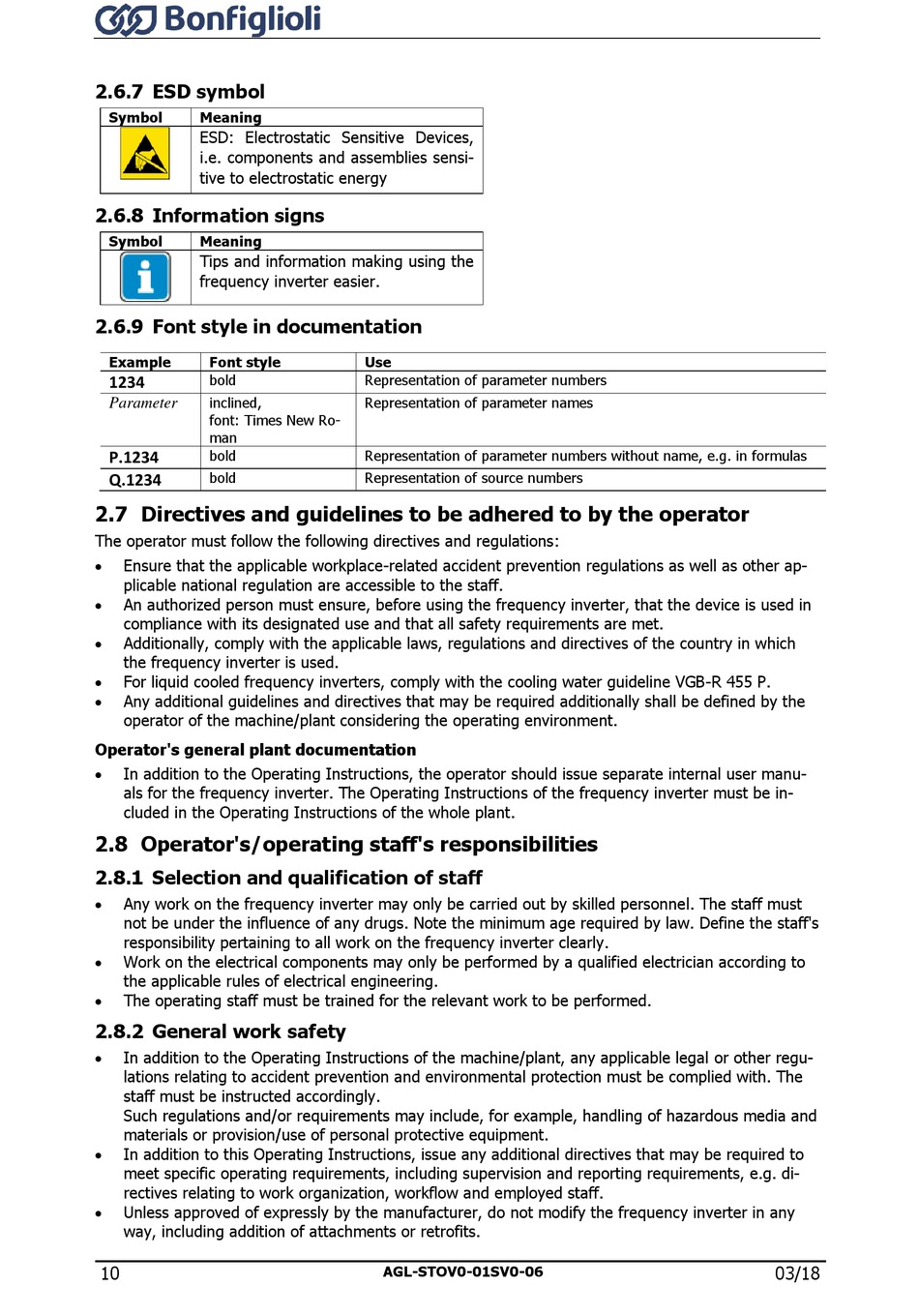

2.6.7 ESD symbol

Symbol Meaning
ESD: Electrostatic Sensitive Devices,
i.e. components and assemblies sensi-
tive to electrostatic energy

2.6.8 Information signs

Symbol Meaning
Tips and information making using the
frequency inverter easier.

2.6.9 Font style in documentation

Example Font style
bold
1234
inclined,
Parameter
font: Times New Ro-
man
bold
P.1234
bold
Q.1234

2.7 Directives and guidelines to be adhered to by the operator

The operator must follow the following directives and regulations:
 Ensure that the applicable workplace-related accident prevention regulations as well as other ap-
plicable national regulation are accessible to the staff.
 An authorized person must ensure, before using the frequency inverter, that the device is used in
compliance with its designated use and that all safety requirements are met.
 Additionally, comply with the applicable laws, regulations and directives of the country in which
the frequency inverter is used.
 For liquid cooled frequency inverters, comply with the cooling water guideline VGB-R 455 P.
 Any additional guidelines and directives that may be required additionally shall be defined by the
operator of the machine/plant considering the operating environment.
Operator's general plant documentation
 In addition to the Operating Instructions, the operator should issue separate internal user manu-
als for the frequency inverter. The Operating Instructions of the frequency inverter must be in-
cluded in the Operating Instructions of the whole plant.

2.8 Operator's/operating staff's responsibilities

2.8.1 Selection and qualification of staff

 Any work on the frequency inverter may only be carried out by skilled personnel. The staff must
not be under the influence of any drugs. Note the minimum age required by law. Define the staff's
responsibility pertaining to all work on the frequency inverter clearly.
 Work on the electrical components may only be performed by a qualified electrician according to
the applicable rules of electrical engineering.
 The operating staff must be trained for the relevant work to be performed.

2.8.2 General work safety

 In addition to the Operating Instructions of the machine/plant, any applicable legal or other regu-
lations relating to accident prevention and environmental protection must be complied with. The
staff must be instructed accordingly.
Such regulations and/or requirements may include, for example, handling of hazardous media and
materials or provision/use of personal protective equipment.
 In addition to this Operating Instructions, issue any additional directives that may be required to
meet specific operating requirements, including supervision and reporting requirements, e.g. di-
rectives relating to work organization, workflow and employed staff.
 Unless approved of expressly by the manufacturer, do not modify the frequency inverter in any
way, including addition of attachments or retrofits.
10
Use
Representation of parameter numbers
Representation of parameter names
Representation of parameter numbers without name, e.g. in formulas
Representation of source numbers
AGL-STOV0-01SV0-06 03/18
