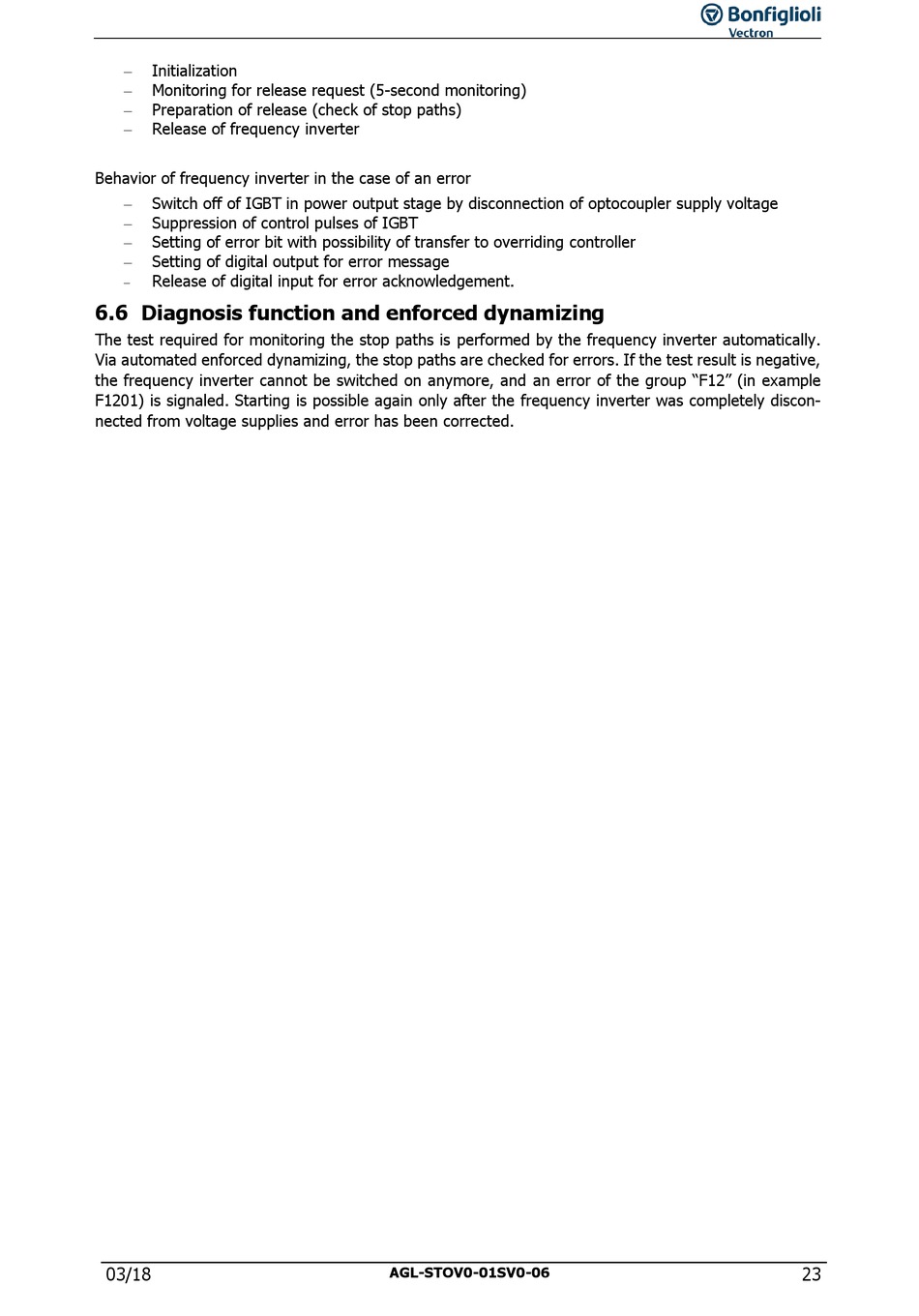

 Initialization
 Monitoring for release request (5-second monitoring)
 Preparation of release (check of stop paths)
 Release of frequency inverter
Behavior of frequency inverter in the case of an error
 Switch off of IGBT in power output stage by disconnection of optocoupler supply voltage
 Suppression of control pulses of IGBT
 Setting of error bit with possibility of transfer to overriding controller
 Setting of digital output for error message
Release of digital input for error acknowledgement.


6.6 Diagnosis function and enforced dynamizing

The test required for monitoring the stop paths is performed by the frequency inverter automatically.
Via automated enforced dynamizing, the stop paths are checked for errors. If the test result is negative,
the frequency inverter cannot be switched on anymore, and an error of the group "F12" (in example
F1201) is signaled. Starting is possible again only after the frequency inverter was completely discon-
nected from voltage supplies and error has been corrected.
03/18 AGL-STOV0-01SV0-06 23
