FIG.G
FIG.H
ground
FIG.I
IFC17042.01 www.powercommander.com

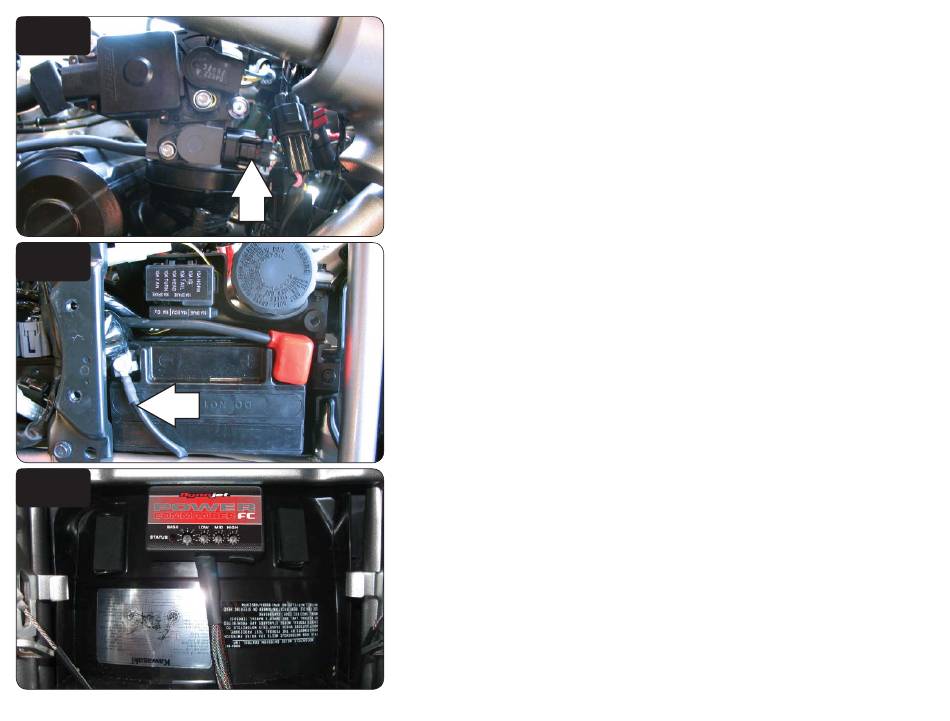

12 Locate the Throttle Position Sensor (TPS) on the left hand side of the throttle
bodies as shown in Figure G.
13 Unplug the TPS connector from the throttle bodies.
14 Attach the connectors from the PCFC to the stock wiring harness and TPS.
15 Attach the ground wire from the PCFC to the negative side of the battery as
shown in Figure H.
16 Reinstall the air box.
17 Reinstall the fuel tank.
18 Reinstall the seat.
19 Using the stock rubber band, secure the PCFC in the tail section as shown in

Figure I.

2012-2014 Kawasaki EX650R - 5
