Figure D; Figure E; Figure F - Dynojet POWER COMMANDER FC Installation Instructions

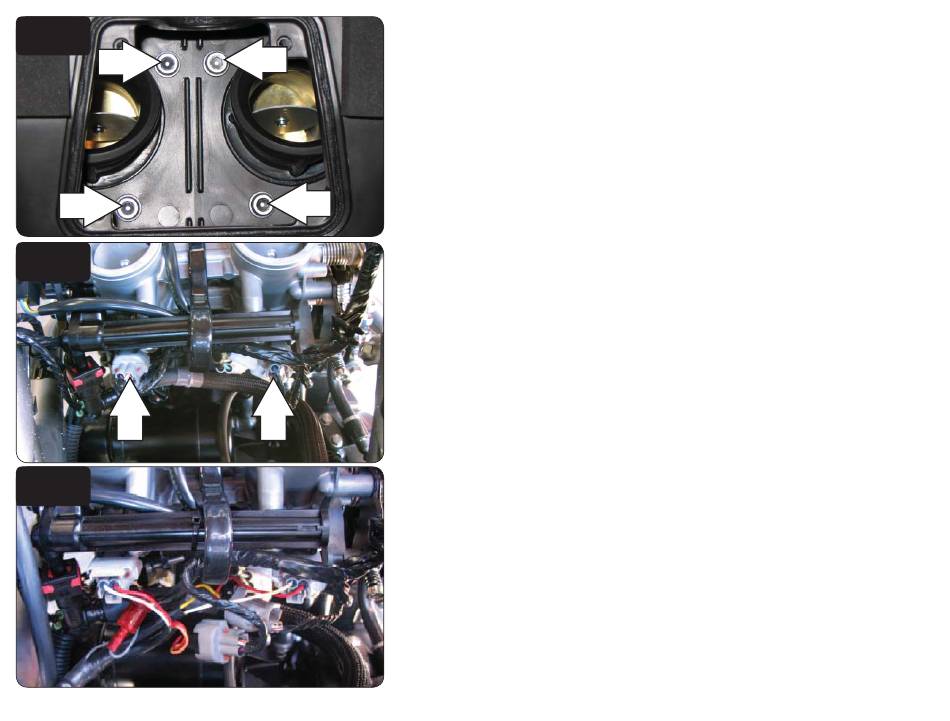

FIG.D
FIG.E
FIG.F
IFC17042.01 www.powercommander.com
7 Remove the four bolts securing the air box to the throttle bodies as shown in

Figure D.

8 Disconnect the air box temp sensor and hoses leading to the air box.
9 Remove the air box from the bike.
10 Unplug the stock wiring harness from the injectors as shown in Figure E.
11 Attach the connectors from the PCFC to the stock wiring harness and the fuel
injector for both cylinders as shown in Figure F.
Connect the orange wires from the PCFC to the left hand cylinder.
2012-2014 Kawasaki EX650R - 4
