Dynojet POWER COMMANDER FC Installation Instructions

Fuel management device

Table of Contents

Download this manual

2007-2008 Kawasaki ZX-6R

I n s t a l l a t i o n I n s t r u c t i o n s

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

IFC17026.01

www.powercommander.com

2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com

Parts List

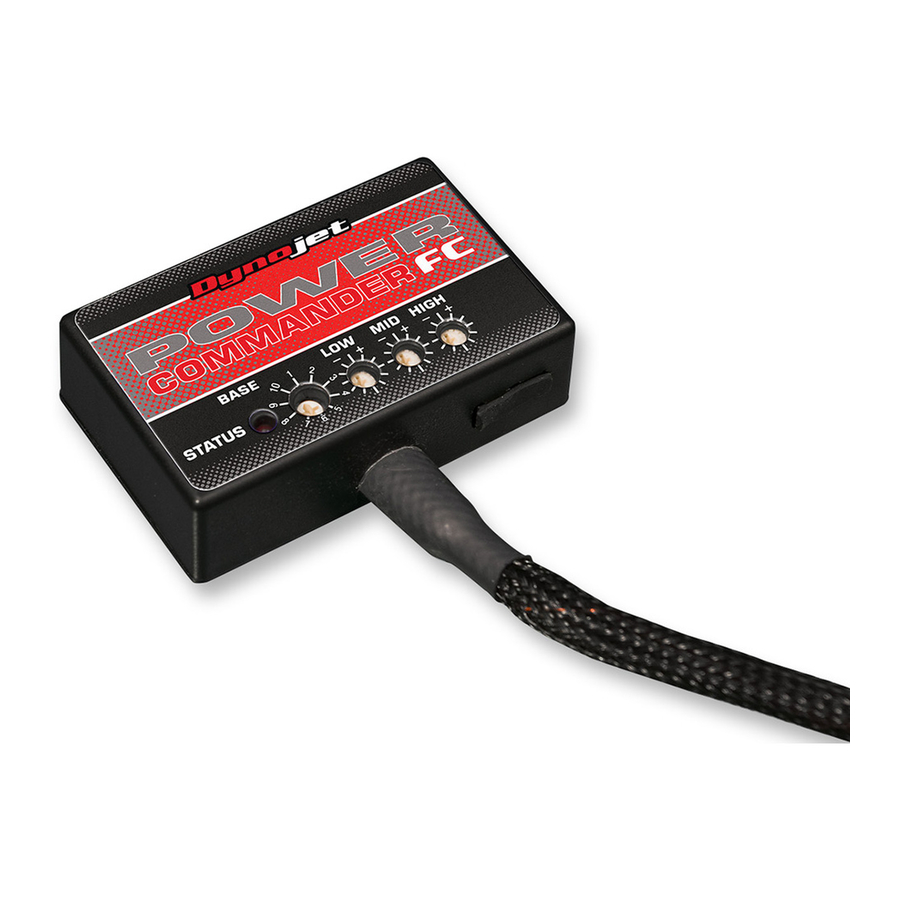

Power Commander FC

USB Cable

Installation Guide

Dynojet Decals

Velcro

Alcohol swab

THE IGNITION MUST BE TURNED

OFF BEFORE INSTALLATION!

YOU CAN ALSO DOWNLOAD THE PCFC

CONTROL SOFTWARE SOFTWARE AND

LATEST MAPS FROM OUR WEB SITE AT:

www.powercommander.com

2007-2008 Kawasaki ZX-6R - 1

Table of Contents

Do you have a question about the POWER COMMANDER FC and is the answer not in the manual?

Page 1 USB Cable 2007-2008 Kawasaki ZX-6R 2007-2008 Kawasaki ZX-6R Installation Guide Dynojet Decals I n s t a l l a t i o n I n s t r u c t i o n s Velcro Alcohol swab THE IGNITION MUST BE TURNED...
Page 2 SELECTING THE MAP POSITION The Dynojet Power Commander Fuel Controller (PCFC) comes loaded with up to ten maps. Using a #1 Phillips screwdriver, turn the map select dial to toggle between the loaded maps. Refer to the map position table for the maps included in your PCFC.
Page 3 Remove the main seat and the passenger seat. FIG.A Prop the front of the fuel tank up. Remove the air box. The air box does not need to be completely removed; it just needs to be lifted up far enough to access the Throttle Position Sensor (TPS). Lay the PCFC in the tail section and route the harness along side the stock wiring harness towards the throttle bodies.
Page 4 FIG.D Attach the ground wire from the PCFC harness to the negative side of the battery as shown in Figure D. FIG.E Using the supplied velcro, secure the PCFC in the tail section as shown in Figure E. Make sure to clean both surfaces with the alcohol swab before attaching. Note: Due to the lack of storage room on this motorcycle, this is the best place to secure the PCFC.
