I n s t a l l a t i o n I n s t r u c t i o n s
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
IFC17019.01
www.powercommander.com
2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
Parts List
Parts List
1

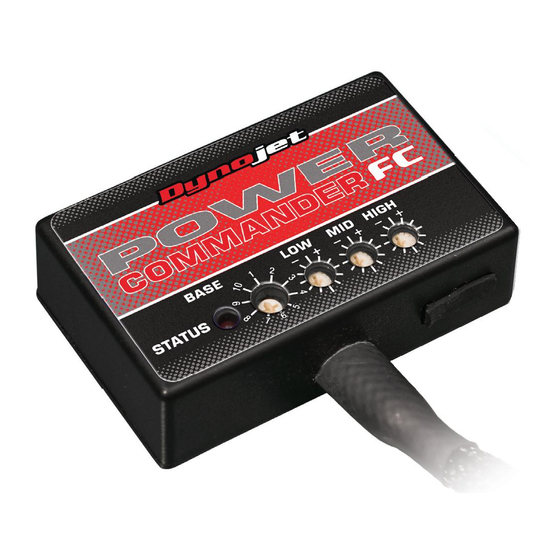

Power Commander FC
1
USB Cable
1
Installation Guide
2
Dynojet Decals
2
Velcro
1
Alcohol swab
THE IGNITION MUST BE TURNED
OFF BEFORE INSTALLATION!
YOU CAN ALSO DOWNLOAD THE PCFC
CONTROL CENTER SOFTWARE AND
LATEST MAPS FROM OUR WEB SITE AT:
www.powercommander.com
2008-2014 Kawasaki Brute Force 750 - 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynojet Power Commander FC
Summary of Contents for Dynojet Power Commander FC
- Page 1 Parts List Parts List Power Commander FC 2008-2014 Kawasaki 2008-2014 Kawasaki USB Cable Brute Force 750 Brute Force 750 Installation Guide Dynojet Decals I n s t a l l a t i o n I n s t r u c t i o n s...
- Page 2 SELECTING THE MAP POSITION The Dynojet Power Commander Fuel Controller (PCFC) comes loaded with up to ten maps. Using a #1 Phillips screwdriver, turn the map select dial to toggle between the loaded maps. Refer to the map position table for the maps included in your PCFC.
- Page 3 FIG.A 2008-2011 Kawasaki Brute Force 750 Use the following instructions for 2008-2011 models. Remove the seat. Remove the right hand side cover as shown in Figure A. FIG.B Locate the black 6-pin connector that comes from the throttle bodies. This connector is located on the right hand side of the Quad near the upper frame rail.
- Page 4 FIG.D ground Attach the ground wire from the PCFC harness to the negative side of the battery as shown in Figure D. harness FIG.E Using the supplied velcro, secure the PCFC to the top of the ECU as shown in Figure E.
- Page 5 FIG.G Using the supplied velcro, secure the PCFC to the tray under the seat as shown in Figure G. Make sure to clean both surfaces with the alcohol swab before attaching. FIG.H Route the PCFC harness under the plastic tray and down the right hand side of the ATV, following the stock wiring harness as shown in Figure H.
- Page 6 FIG.J Attach the connectors from the PCFC wiring harness to the stock wiring harness and throttle body harness as shown in Figure J. FIG.K Attach the ground wire from the PCFC harness to the ground bolt on the shifter bracket as shown in Figure K. Secure the PCFC harness clear of any hot or moving parts.
