FIG.A
FIG.B
FIG.C
IFC17042.01 www.powercommander.com
1 Remove the seat.
2 Remove the fuel tank.
3 Place the PCFC in the tail section and route the harness towards the front of
the bike.

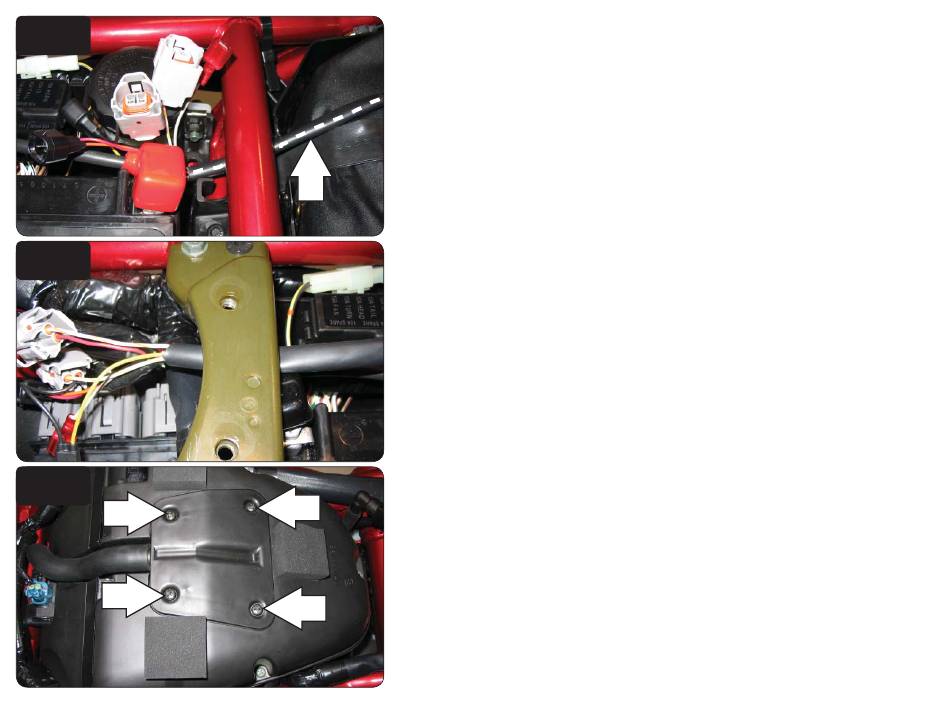

4 Route the PCFC harness under the frame crossover as shown in Figure A.
5 Route the PCFC harness under the fuel tank bracket as shown in Figure B.
6 Remove the bolts in the air box lid as shown in Figure C.
2012-2014 Kawasaki EX650R - 3
