Installation Instructions

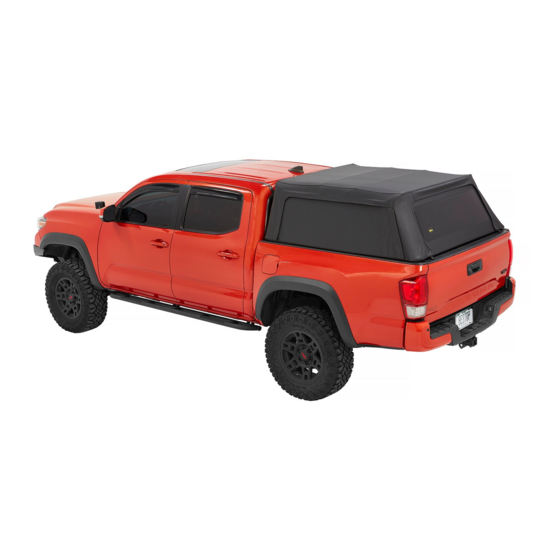

Supertop
www.Bestop.com
- We're here to help! Visit our web site and click on
INSTALLATION TIME
1-1/2 Hours
TOOLS
®
for Truck
US Patent 6827391
SKILL LEVEL
2 - Moderately Easy
7/16" and 9/16"
1/8" Bit
Vehicle Application:
• Ford F250
1987 - 1998 (8 ft.)
Part Number: 76315
• Ford F150
1987 - 1996 (8 ft.)
• Ford F350
Part Number: 76315
1987 - 1998 (8 ft.)
Part Number: 76315
"Ask a
Question". Click here for more
• Chevrolet Silverado
1999 - 2011 (8 ft.)
Part Number: 76315
• GMC Sierra
1999 - 2006 (8 ft.)
Part Number: 76315
Truck Accessories by Bestop.
Advertisement
Related Manuals for Bestop Supertop
Summary of Contents for Bestop Supertop
-
Page 1: Installation Instructions
Part Number: 76315 US Patent 6827391 www.Bestop.com - We’re here to help! Visit our web site and click on “Ask a Question”. Click here for more Truck Accessories by Bestop. INSTALLATION TIME SKILL LEVEL 1-1/2 Hours 2 - Moderately Easy TOOLS 7/16"... - Page 2 Supertop ® for Truck Installation Instructions Parts List and ® Supertop Fabric Qty - 1 Side Panel, Right Qty - 1 Hardware Identifi cation Side Panel, Left Qty - 1 Rear Window Qty - 1 36" Buckle Straps Qty - 2...
- Page 3 Supertop ® for Truck Installation Instructions Mount Tailgate Brackets to Rear Belt Rails Assemble Bow Mounts Brackets Locate the Right Tailgate Bracket and the Right Rear Belt Rail in the parts kit. Locate the Bow Mount Brackets in the parts kit. Slide a 5/16" Flat Washer Place the Right Tailgate Bracket over the rear stud on the Belt Rail.
- Page 4 Supertop ® for Truck Installation Instructions Assemble Front Bow Install Belt Rail Assemblies Lay the Belt Rail Assemblies on top of the truck bed Slide a Bow Tie Down Strap onto each of the Front rail with the tab on the Tailgate Bracket toward the Bow Halves.
- Page 5 Supertop ® for Truck Installation Instructions Install Rear Bow Assembly Cut Web Strap Reinforcement Locate the two (2) Elastic Garters in the parts kit. Place the top fabric on a safe, clean cutting surface. Slide a garter over each half of the Rear Bow from...
- Page 6 Wrap them around the third bow from the front and snap them to the bow. Snap Fabric to Front Two Bows Drape the Supertop ® Fabric over the roof of the cab with the backing side up and the front window hanging down between the Front Bow and the cab of the vehicle.
- Page 7 Supertop ® for Truck Installation Instructions Secure the Front of the Top Secure the Front of the Top Start at the front corners of the top and work the Locate the loop strip sewn to the fl ap along the front of the top.
- Page 8 Supertop ® for Truck Installation Instructions We recommend that the Secure the Rear of the Top Third Brake Light sup- plied with this assembly Locate the plastic clips sewn into the rear corners be professionally wired. of the top. Gently pull down on the rear bow and...
- Page 9 Supertop ® for Truck Installation Instructions Engage J-Hook on Rear Install Tailgate Bar on Rear Window Window Slide the Tailgate Bar onto the tube strip sewn to the Orient the Rear Window with the plastic J-Hook inside of the Rear Window. Place the Tailgate Bar in toward the top.
- Page 10 Supertop ® for Truck Installation Instructions Install Side Panels Adjust Tension on Top Orient the Side Panels with the plastic J-Hook It may be necessary to increase the tension on the toward the top and the zipper with the fl ap over top for a better fi...
- Page 11 Supertop ® for Truck Installation Instructions Collapsing the Pickup Top Release the Rear and Center Bows Remove Windows Rotate the Rear Bow forward to collapse the Rear and Center Bows onto the Front Bow. As you are Remove the Side Panels and the Rear Window and collapsing the bow assembly, make sure that the store them carefully.
- Page 12 Supertop ® for Truck Installation Instructions Secure Fabric with Buckle To Remove the Bow Stack Straps If you wish to remove the bows completely, remove Wrap the Buckle Straps around the fabric and the the cotter pins that secure the bows to the Bow J-Hook and secure the buckles.
-
Page 13: Limited Warranty
Your Bestop product is made of the fi nest materials available. To keep it looking new and for the maximum possible wear, it will need periodic cleaning and maintenance. Fabric: The fabric should be washed often using soap, warm water and a soft bristle brush Rinse with clear water to remove all traces of soap. Bestop recommends using Bestop Cleaner (part no.
