Power Supply Board
Terminal Legend
AC/AC
+ DC –
PD8/PD8CB - Distribution Module
Terminal Legend
1P - 8P
1N - 8N

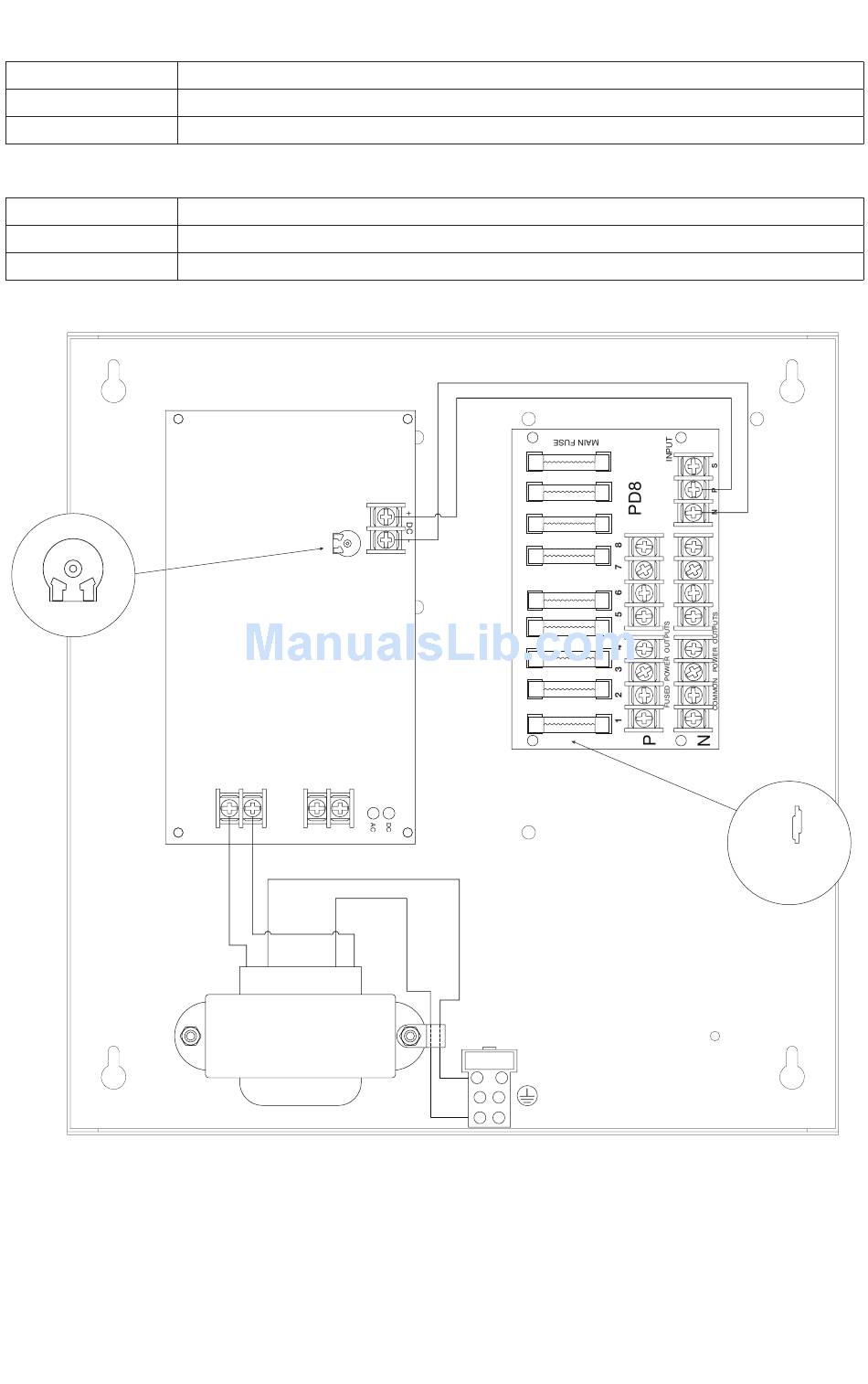

Fig. 1
TRIMPOT
Fig. 1a
ALTV615DC8220 Series
Terminal Identification:
Function/Description
Low voltage AC input (24VAC 100VA) - Altronix part # T2428100220
6VDC-15VDC @ 4A total continuous output.
Function/Description
Positive DC output.
Negative DC output
POWER SUPPLY
BOARD
AC
AC
- BAT +
TRANSFORMER
Input
220VAC, 50/60Hz, 0.5A
PTC
used on
ALTV615DC8CB220
- 3 -
