Altronix ALTV615DC8UL Quick Start Manual

Overview:
Altronix ALTV615DC8UL CCTV Power Supply is designed with eight (8) individually fused, Class 2 Rated power-limited outputs for powering CCTV cameras
and other video accessories. It provides 6VDC-15VDC distributed via eight (8) fused outputs with a total of up to 4A continuous supply current.
Specifications:
Agency Listings:
• UL Listed for Commercial Closed-Circuit Television Equipment (UL 2044).
• CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment.
Input:
• Input 115VAC, 50/60 Hz, 0.9A.
Output:
• 6VDC-15VDC adjustable output.
• Eight (8) individually fuse protected,
Class 2 Rated power-limited outputs.
• 4A total continuous supply current.
• Filtered and electronically regulated outputs.
Fuse Ratings:
• Output fuses are rated at 3.5A/250VAC (Fig. 1).
Visual Indicators:
• AC input and DC output LED indicators.
Additional Features:
• Spare fuses included.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.
Enclosure Dimensions (H x W x D approx.):
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm).
Note: For a model with factory installed 3-wire
line cord add suffix "3", i.e. ALTV615DC8UL3,
and disregard paragraph 2 in
Installation Instructions.
Installation Instructions:
1. Mount ALTV615DC8UL in the desired location.
2. Connect green lead to earth ground. Connect AC (115VAC, 50/60 Hz) to the black and white flying leads of the
transformer (Fig. 1). Use knockout adjacent to the transformer. 0.25" spacing must be provided between AC input wiring and all other circuits.
3. Adjust output voltage using trimpot on the board prior to connecting CCTV devices (Fig. 1a).
4. Measure output voltage before connecting devices. This helps avoiding potential damage.
Terminals marked [1P - 8P] are positive (+) and terminals marked [1N - 8N] are negative (-).
CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting the output voltage.
5. Connect each DC CCTV cameras to the terminal pairs marked [1P-1N] through [8P-8N] on PD8 board, carefully observing correct polarity (Fig. 1).
6. Green LED will illuminate when unit is powered.
7. Upon completion of the wiring, secure enclosure door with screws (supplied).
Keep power-limited circuits (outputs 1 through 8) away from non power-limited. 0.25" space must be provided.
Use separate knockouts.
CAUTION: Equipment to be installed/serviced by authorized/trained personnel only.
Shut branch circuit power before installing/servicing equipment.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service personnel and should conform to NEC and all local codes.
ALTV615DC8UL
CCTV Camera and Accessory Power Supply
Wire
Strap
(from
Enclosure
to Door)
1
P
F U S E D
115VAC input
50/60 Hz,
0.9A
non power-
limited
N
C O M M O N
2 3 4 5
AC AC --- BAT +
XFMR
P O W E R O U T P U T S
Black Lead
White Lead
P O W E R O U T P U T S
Fig. 1a
Voltage
Adjustment
6 7 8
D1
R1
Green Lead
Use separate
knockouts for
power-limited
circuits.
Class 2 Not Wet/
Class 3 Wet
LED
INPUT

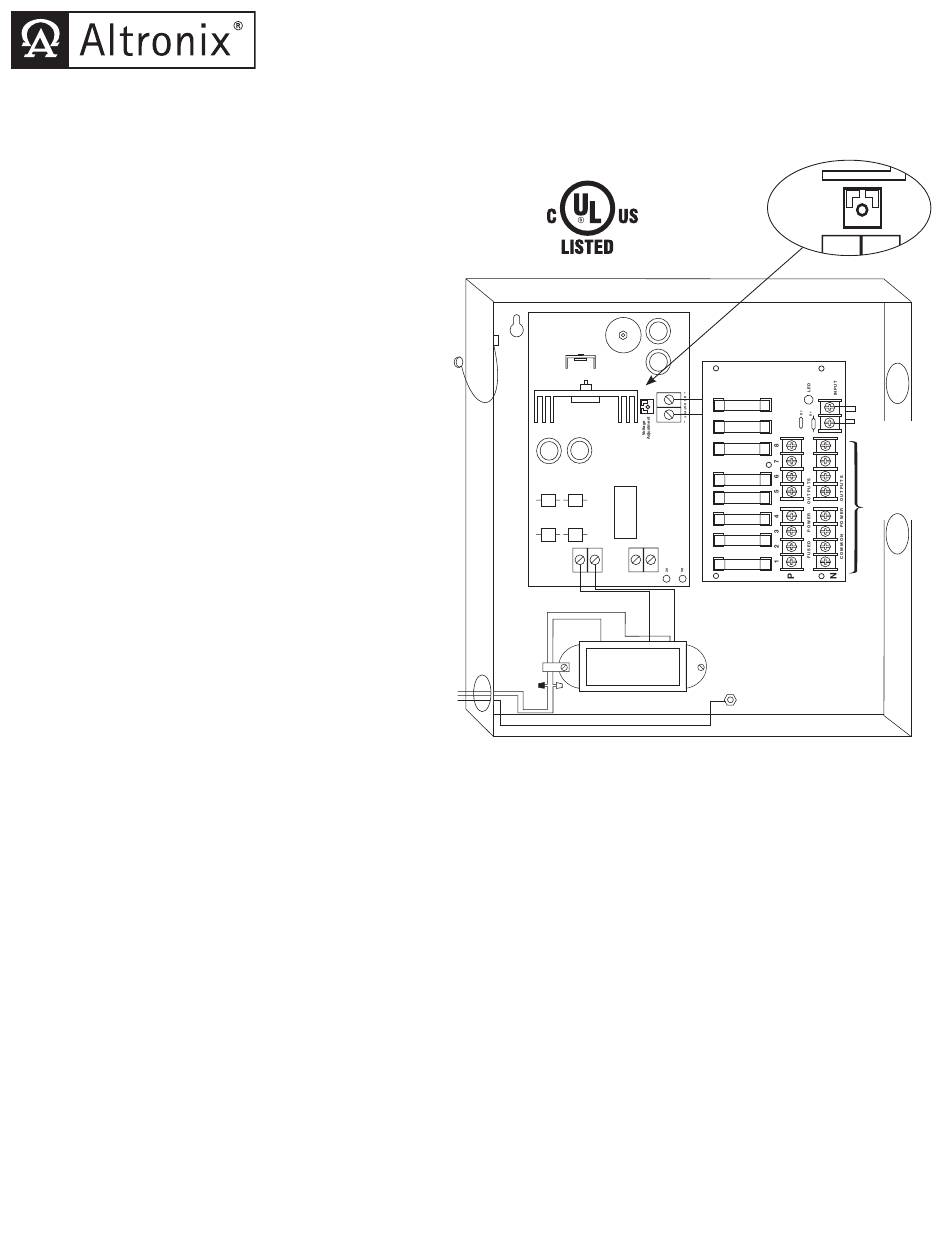

Fig. 1
