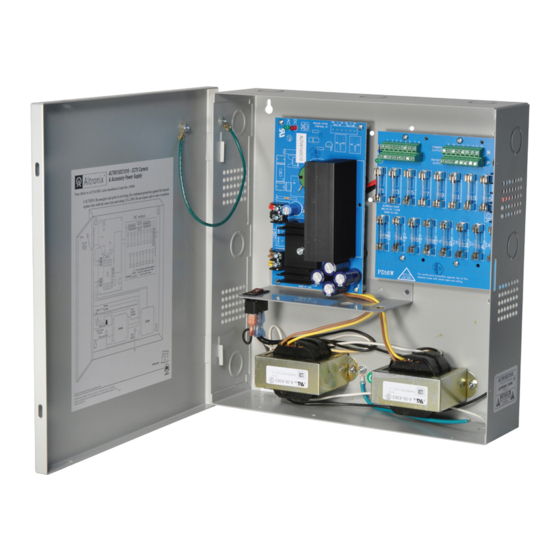

ALTV615DC Series
CCTV Power Supplies
Installation Guide
Models Include:
• ALTV615DC1016
- 6-15VDC @ 10 amp
- Sixteen (16) Fuse Protected
Outputs.
• ALTV615DC1016CB
- 6-15VDC @ 10 amp
- Sixteen (16) PTC Protected
Outputs.
For models with line cord installed : For 3-wire add suffix "3" e.g. ALTV615DC10163.
Rev. 102804
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix ALTV615DC Series
Summary of Contents for Altronix ALTV615DC Series
- Page 1 ALTV615DC Series CCTV Power Supplies Installation Guide Models Include: • ALTV615DC1016 - 6-15VDC @ 10 amp - Sixteen (16) Fuse Protected Outputs. • ALTV615DC1016CB - 6-15VDC @ 10 amp - Sixteen (16) PTC Protected Outputs. For models with line cord installed : For 3-wire add suffix “3” e.g. ALTV615DC10163.
- Page 2 Overview: These Altronix DC CCTV Power Supplies provide 6-15VDC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. Sixteen (16) Output ALTV615DC Reference Chart: Altronix Model Number ALTV615DC1016 10 amp 6-15VDC 3.5 amp...
- Page 3 Terminal Identification: Power Supply Board Terminal Legend Function/Description AC/AC Low voltage AC input. + DC -- 6VDC-15VDC output. PD8UL/PD8ULCB - Distribution Module 1P - 8P Positive DC output. 1N - 8N Negative DC output. CAUTION: De-energize unit prior to servicing. For continued protection against fire hazard Fig.
- Page 4 1.00" 10.50" 1.00" Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. II1ALTV615DCSeries K20G MEMBER - 4 -...
