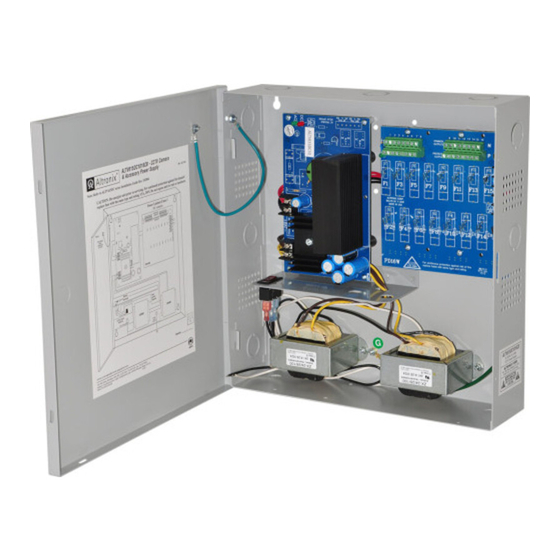

ALTV615DC1016 Series
CCTV Power Supplies
Models Include:
ALTV615DC1016
- 6-15VDC @ 10A
- Sixteen (16) Fuse Protected Outputs.
ALTV615DC1016CB
- 6-15VDC @ 10A
- Sixteen (16) PTC Protected Outputs.
Installation Guide
For models with the line cord installed add suffix "3", e.g. ALTV615DC10163
Rev. 102804
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
More than just power.
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix ALTV615DC1016 Series
Summary of Contents for Altronix ALTV615DC1016 Series
- Page 1 ALTV615DC1016 Series CCTV Power Supplies Models Include: ALTV615DC1016 - 6-15VDC @ 10A - Sixteen (16) Fuse Protected Outputs. ALTV615DC1016CB - 6-15VDC @ 10A - Sixteen (16) PTC Protected Outputs. Installation Guide For models with the line cord installed add suffix “3”, e.g. ALTV615DC10163 More than just power.
- Page 2 Overview: ALTV615DC1016 Series DC CCTV Power Supplies provide 6-15VDC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV cameras, heaters, and other video accessories. Sixteen (16) Output ALTV615DC1016 Reference Chart: Total Protected Output 115VAC Output Number Outputs...
- Page 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 outputs protected Fig. 1b outputs Used on PTC Models For models with (example: factory installed ALTV615DC1016CB) 3-wire line cord PTCs PD16W ALTV615DC1016 Series Installation Guide - 3 -...
- Page 4 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIALTV615DC1016 Series L07U...
