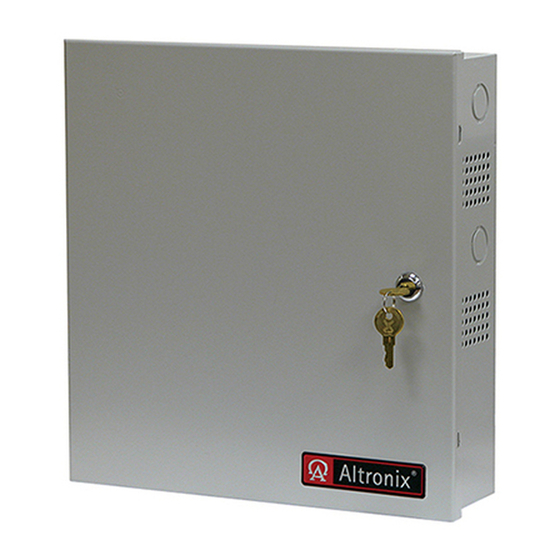

ALTV1224DC Series
CCTV Power Supplies
Installation Guide
Models Include:
• ALTV1224DC
- 12VDC or 24VDC @ 4 amp
- Eight (8) Fuse Protected
Outputs.
• ALTV1224DC1
- 12VDC or 24VDC @ 4 amp
- Sixteen (16) Fuse Protected
Outputs.
• ALTV1224DC2
- 12VDC or 24VDC @ 6 amp
- Sixteen (16) Fuse Protected
Outputs.
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
• ALTV1224DCCB
- 12VDC or 24VDC @ 4 amp
- Eight (8) PTC Protected
Outputs.
• ALTV1224DC1CB
- 12VDC or 24VDC @ 4 amp
- Sixteen (16) PTC Protected
Outputs.
• ALTV1224DC2CB
- 12VDC or 24VDC @ 6 amp
- Sixteen (16) PTC Protected
Outputs.
Rev. 022505
Advertisement
Related Manuals for Altronix ALTV1224DC
Summary of Contents for Altronix ALTV1224DC
-
Page 1: Installation Guide
ALTV1224DC Series CCTV Power Supplies Installation Guide Models Include: • ALTV1224DC • ALTV1224DCCB - 12VDC or 24VDC @ 4 amp - 12VDC or 24VDC @ 4 amp - Eight (8) Fuse Protected - Eight (8) PTC Protected Outputs. Outputs. • ALTV1224DC1 •... -
Page 2: Specifications
Overview: The Altronix DC CCTV power supply is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via eight (8) or sixteen (16) fused or PTC protected outputs with a total of four (4) or six (6) amp total continuous supply current. - Page 3 WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This installation should be made by qualified service personnel and should conform to all local codes and in accordance with the National Electrical Code. ALTV1224DC/CB Terminal Identification: OLS127 - Power Supply Terminal Legend...
- Page 4 ALTV1224DC1/CB Terminal Identification: OLS127 Terminal Legend Function/Description L, G, N 115VAC power mains connection. – DC + 12VDC or 24VDC @ 4 amp total continuous output. – BAT + Stand-by battery connections. Maximum charge rate .5 amp. PD16W/PD16WCB 1P - 16P Positive DC power outputs.
- Page 5 ALTV1224DC2/CB Terminal Identification: OLS187 Terminal Legend Function/Description L, G, N 115VAC power mains connection. – DC + 12VDC or 24VDC @ 6 amp total continuous output. – BAT + Stand-by battery connections. Maximum charge rate .5 amp. PD16W/PD16WCB 1P - 16P Positive DC power outputs.
- Page 6 The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of an insulated “DANGEROUS VOLTAGE” within the products enclosure that may be of sufficient magnitude to constitute an electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 7 Notes: ALTV1224DCseries - 7 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 8 Notes: Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. II1ALTV1224DCSeries D21I MEMBER - 8 - ALTV1224DCseries Available from A1 Security Cameras...
