Altronix ALTV615DC8ULCB Quick Manual

Overview:

Altronix ALTV615DC8ULCB CCTV Power Supply is designed with eight (8) individually PTC protected power-limited,
Class 2 Rated outputs for powering CCTV cameras and other video accessories. It provides 6VDC-15VDC distributed via
eight (8) PTC outputs with a total of up to 4A continuous supply current.

Specifications:

Agency Listings:
• UL Listed for Commercial Closed-Circuit Television Equipment (UL 2044).
• CUL Listed - CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment.

Input:

• Input 115VAC 50/60 Hz, 0.9A.

Output:

• 6VDC-15VDC adjustable output.
• Eight (8) individually PTC protected, Class 2 Rated
power-limited outputs.
• 4A total continuous supply current.
• Filtered and electronically regulated outputs.

PTC Ratings:

• Output PTCs are rated at 2.5A/250VAC (Fig. 1).

Visual Indicators:

• AC input and DC output LED indicators.

Additional Features:

• Spare fuses included.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.
Enclosure Dimensions (H x W x D approx.):
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm).
Note: For a model with factory installed 3-wire line cord
add suffix "3" (e.g. ALTV615DC8ULCB3) and disregard
paragraph 2 in Installation Instructions.

Installation Instructions:

1. Mount ALTV615DC8ULCB in desired location.
2. Connect green lead to earth ground. Connect AC (115VAC 50/60 Hz) to the black and white flying leads of the
transformer (Fig. 1). Use knockout adjacent to the transformer. 0.25" spacing must be provided between AC input
wiring and all other circuits.
3. Adjust output voltage using trimpot on the board prior to connecting CCTV devices.
4. Measure output voltage before connecting devices. This helps avoiding potential damage.
Terminals marked [1P-8P] are positive (+) and terminals marked [1N-8N] are negative.
CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting the
output voltage.
5. Connect each DC CCTV cameras to the terminal pairs marked [1P-1N] through [8P-8N] on PD8CB board (Fig. 1),
carefully observing correct polarity.
6. Green LED will illuminate when when unit is powered.
7. Upon completion of the wiring secure enclosure door with screws (supplied).
Keep power-limited circuits (outputs 1 through 8) away from non power-limited. 0.25" space must be provided.
Use separate knockouts.
Caution: Equipment to be installed/serviced by authorized/trained personnel only.
Shut branch circuit power before installing/servicing equipment.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This
installation should be made by qualified service personnel and should conform to NEC and all local codes.

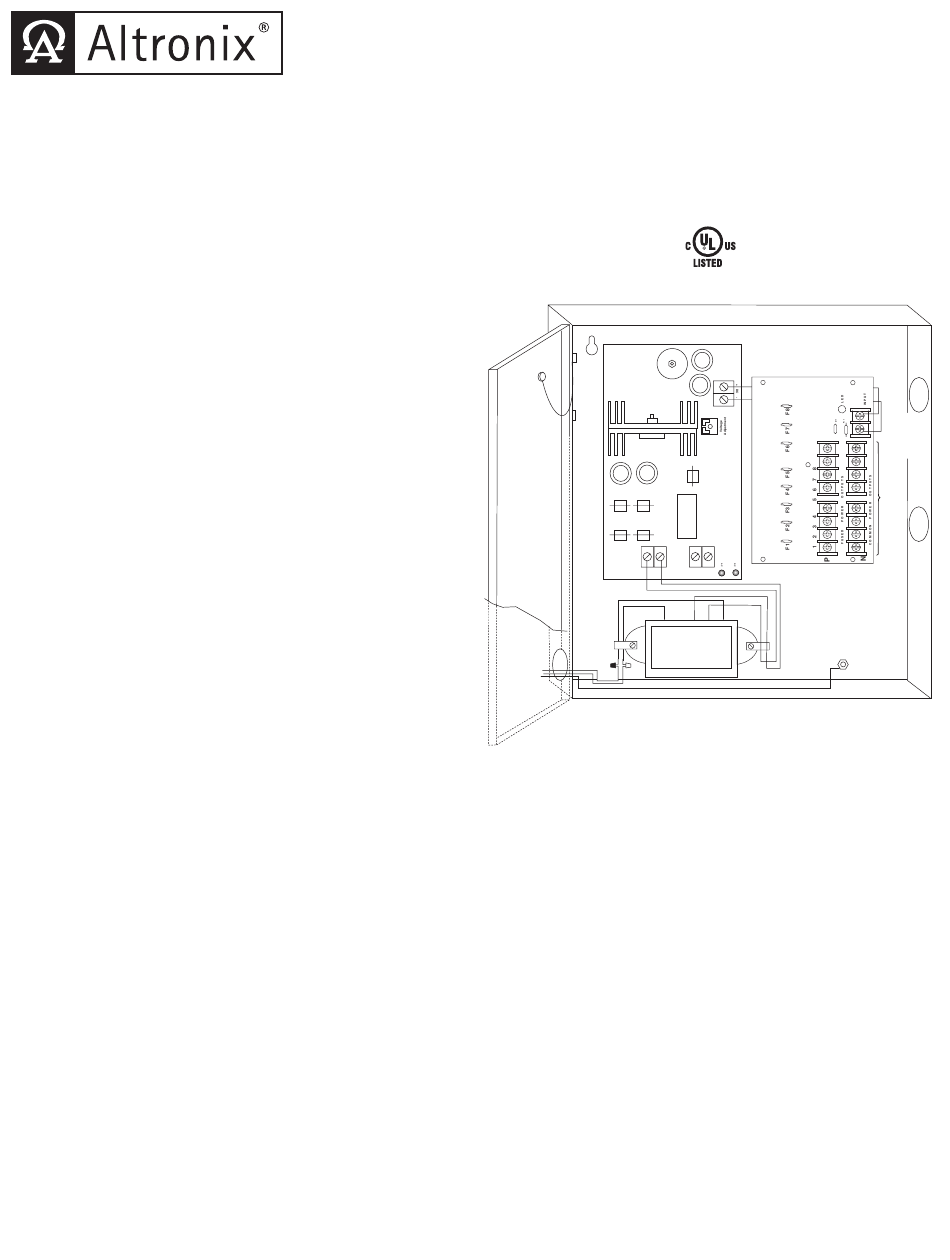

ALTV615DC8ULCB
CCTV Camera and Accessory Power Supply
Door
Wire
Strap
(from
Enclosure
to Door)
AC AC
XFMR
115VAC Input
50/60 Hz,
Black White
0.9A
Lead Lead
non power-
limited
- BAT +
Green
Lead
Use separate
knockouts for
power-limited
circuits.
Class 2 Not Wet/
Class 3 Wet
Fig. 1
