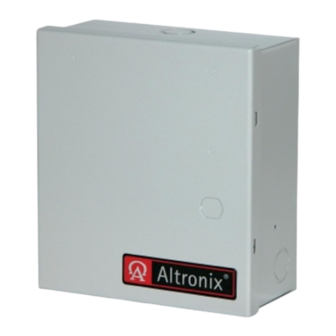

ALTV615DCUL Series
CCTV Power Supplies
Installation Guide
Models Include:
• ALTV615DC44ULM
- 6-15VDC @ 4 amp
- Four (4) Fuse Protected Outputs.
• ALTV615DC48ULM
- 6-15VDC @ 4 amp
- Eight (8) Fuse Protected Outputs.
• ALTV615DC416UL
- 6-15VDC @ 4 amp
- Sixteen (16) Fuse Protected Outputs.
• ALTV615DC616UL
- 6-15VDC @ 6 amp
- Sixteen (16) Fuse Protected Outputs.
For models with line cord installed : For 3-wire add suffix "3" e.g. ALTV615DC44ULM3.
• ALTV615DC44ULCBM
- 6-15VDC @ 4 amp
- Four (4) PTC Protected Outputs.
• ALTV615DC48ULCBM
- 6-15VDC @ 4 amp
- Eight (8) PTC Protected Outputs.
• ALTV615DC416ULCB
- 6-15VDC @ 4 amp
- Sixteen (16) PTC Protected Outputs.
• ALTV615DC616ULCB
- 6-15VDC @ 6 amp
- Sixteen (16) PTC Protected Outputs.
• ALTV615DC416ULCBM*
- 6-15VDC @ 4 amp
- Sixteen (16) PTC Protected Outputs.
* Same except for enclosure size
Rev. 050404
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix ALTV615DC44ULM
Summary of Contents for Altronix ALTV615DC44ULM
-
Page 1: Installation Guide
ALTV615DCUL Series CCTV Power Supplies Installation Guide Models Include: • ALTV615DC44ULM • ALTV615DC44ULCBM - 6-15VDC @ 4 amp - 6-15VDC @ 4 amp - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. • ALTV615DC48ULM • ALTV615DC48ULCBM - 6-15VDC @ 4 amp - 6-15VDC @ 4 amp - Eight (8) Fuse Protected Outputs. -
Page 2: Specifications
Overview: These Altronix DC CCTV Power Supplies provide 6-15VDC distributed via fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. ALTV615DCUL Reference Chart: Altronix Model Number ALTV615DC44ULM 4 amp 6-15VDC 3.5 amp 0.9 amp ALTV615DC44ULCBM 4 amp 6-15VDC 2.5 amp... -
Page 3: Terminal Identification
7. Connect devices to terminals marked [1P - 1N through 4P - 4N] on PD4/PD4CB board, [1P - 1N through 8P - 8N] on PD8/PD8CB, [1P - 1N through 16P - 16N] on PD16W/PD16WCB/PD16CB board, carefully observing correct polarity (Figs. 1-4, pgs. 4-6). Terminals marked [1P - 16P] are positive (+) and terminals marked [1N - 16N] are negative. - Page 4 Fig. 1 ALTV615DC44ULM • ALTV615DC44ULCBM CAUTION: De-energize unit prior to servicing. For continued protection against fire hazard replace fuse with the same type and rating 3.5A, 250V. Do not expose unit to rain or moisture. Output Wiring Used on PTC Models...
-
Page 5: Power Supply Board
Fig. 3 ALTV615DC416UL • ALTV615DC416ULCB • ALTV615DC616UL • ALTV615DC616ULCB CAUTION: De-energize unit prior to servicing. For continued protection against fire hazard replace fuse with the same type and rating 3.5A, 250V. Do not expose unit to rain or moisture. DC outputs common 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16... - Page 6 Fig. 4 ALTV615DC416ULCBM CAUTION: De-energize unit prior to servicing. Do not expose unit to rain or moisture. Output Wiring Barrier DC Outputs Class 2 Power Limited Power Supply Green Lead Board (ground) XFMR Black Lead 115VAC input Trimpot 50/60 Hz White Lead - 6 -...
- Page 7 Enclosure Dimensions for: • ALTV615DC44ULM • ALTV615DC44ULCBM • ALTV615DC48ULM • ALTV615DC48ULCBM • ALTV615DC416ULCBM 8.5"H x 7.5"W x 3.5"D Enclosure Dimensions for: 1.40" 4.85" 4.85" 1.40" • ALTV615DC416UL 1.20" • ALTV615DC416ULCB • ALTV615DC616UL 3.25" • ALTV615DC616ULCB 13"H x 13.5"W x 3.25"D 12.50"...
- Page 8 Notes: Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. II1ALTV615DCULSeries I14F MEMBER - 8 -...
