Overview:

The Altronix ALTV615DC4UL CCTV Power Supply is designed with four (4) individual fused outputs for powering
CCTV Cameras and other video accessories. It will provide 5.5-15VDC distributed via four (4) fused outputs with a
total of up to 2.5 amp continuous supply current.

Specifications:

• UL Listed - U.S. and Canada for CCTV
Equipment (UL 2044).
• Input 24VAC 40VA or 24VAC 50VA, UL Listed
Plug-in transformer.
• 5.5VDC to 15VDC field adjustable.

Output Specification Chart:

Transformer Output current
5.5 to 12VDC
24VAC, 40VA 2.25 amp
24VAC, 50VA 2.5 amp
• Output fuses are rated at 1.0 amp / 250VAC (Fig. 1).
• AC input and DC output LED indicators.
• Power ON/OFF switch.
• Spare fuses included.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.

Enclosure Dimensions:

8.5"H x 7.5"W x 3.5"D

Installation Instructions:

1. Mount ALTV615DC4UL in desired location.
2. Connect 24VAC 40VA or 50VA UL Listed, class 2, plug-in transformer to terminals
marked [XFMR IN] (Fig. 1)
3. Adjust output voltage using trimpot on the board prior to connecting CCTV devices.
4. Switch SW1 (Fig. 1) to OFF position.
5. Measure output voltage before connecting devices. This helps avoid potential damage.
CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting
the output voltage.
6. Connect each DC CCTV cameras to terminal marked [+ OUT1 --- to + OUT4 --- ] (Fig. 1) carefully observing
correct polarity.
7. Switch SW1 (Fig. 1) to ON position.
8. Green LED will illuminate when when unit is powered
9. Upon completion of wiring, secure enclosure door with screws (supplied).
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service personnel and should conform to all local codes
and in accordance with the National Electrical Code.

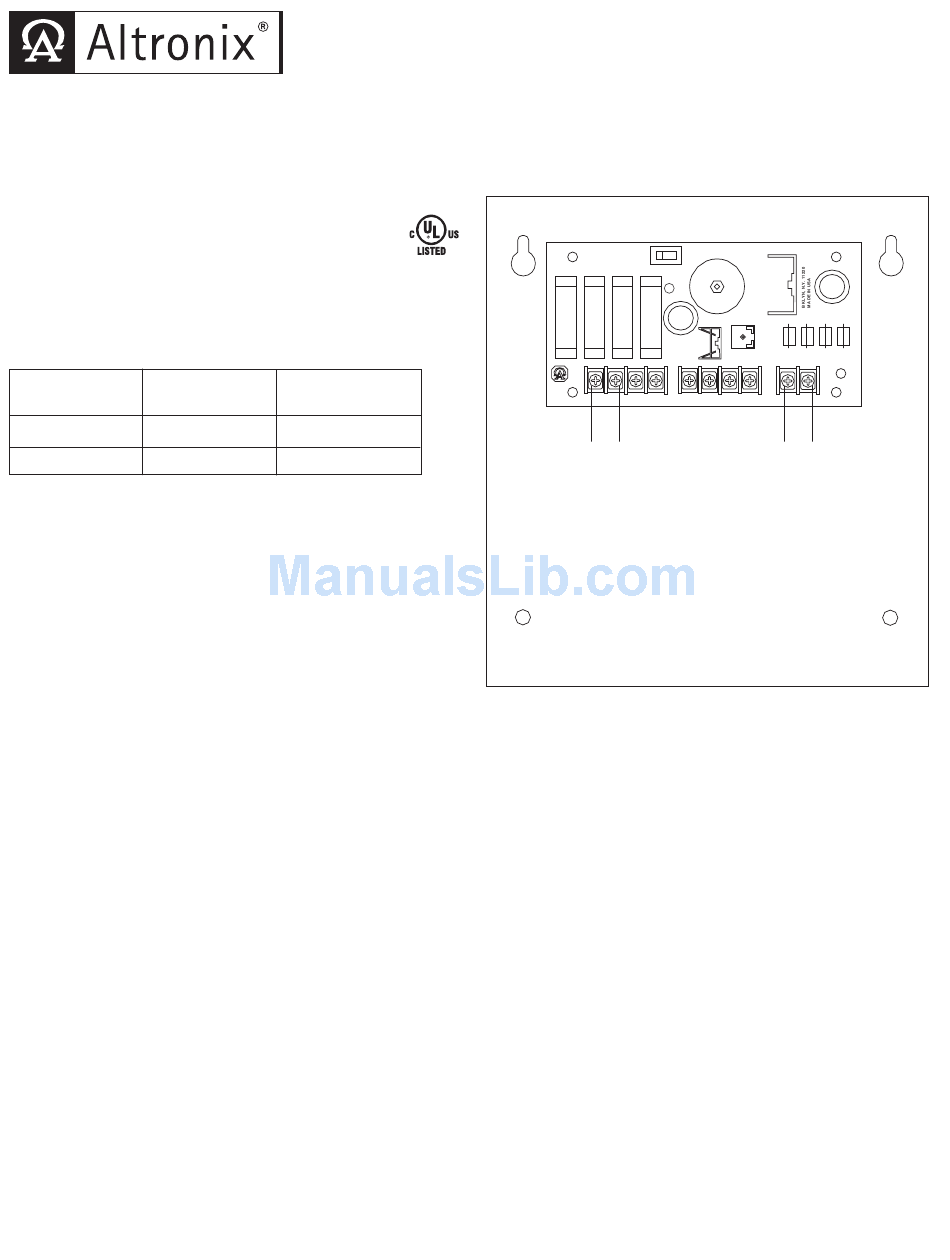

ALTV615DC4UL
CCTV Camera & Accessory Power Supply
Output current
12 - 15VDC
1.8 amp
2 amp
ALTV615DC4UL
SW1
Power Supply
ON OFF
DC
F1
F2 F3 F4
Adjustment
+ OUT1 --- + OUT2 --- + OUT3 --- + OUT4 ---
Adjustable DC
24VAC, class 2 UL listed
output
plug-in transformer
(power limited)
Rev. 013002
ALTRONIX CORP.
Voltage
AC
XFMR IN
Transformer
40VA/50VA
Fig. 1
